Description

WHERE SUPER MEETS NATURAL...

SuperNatural Power, Ride, and Range

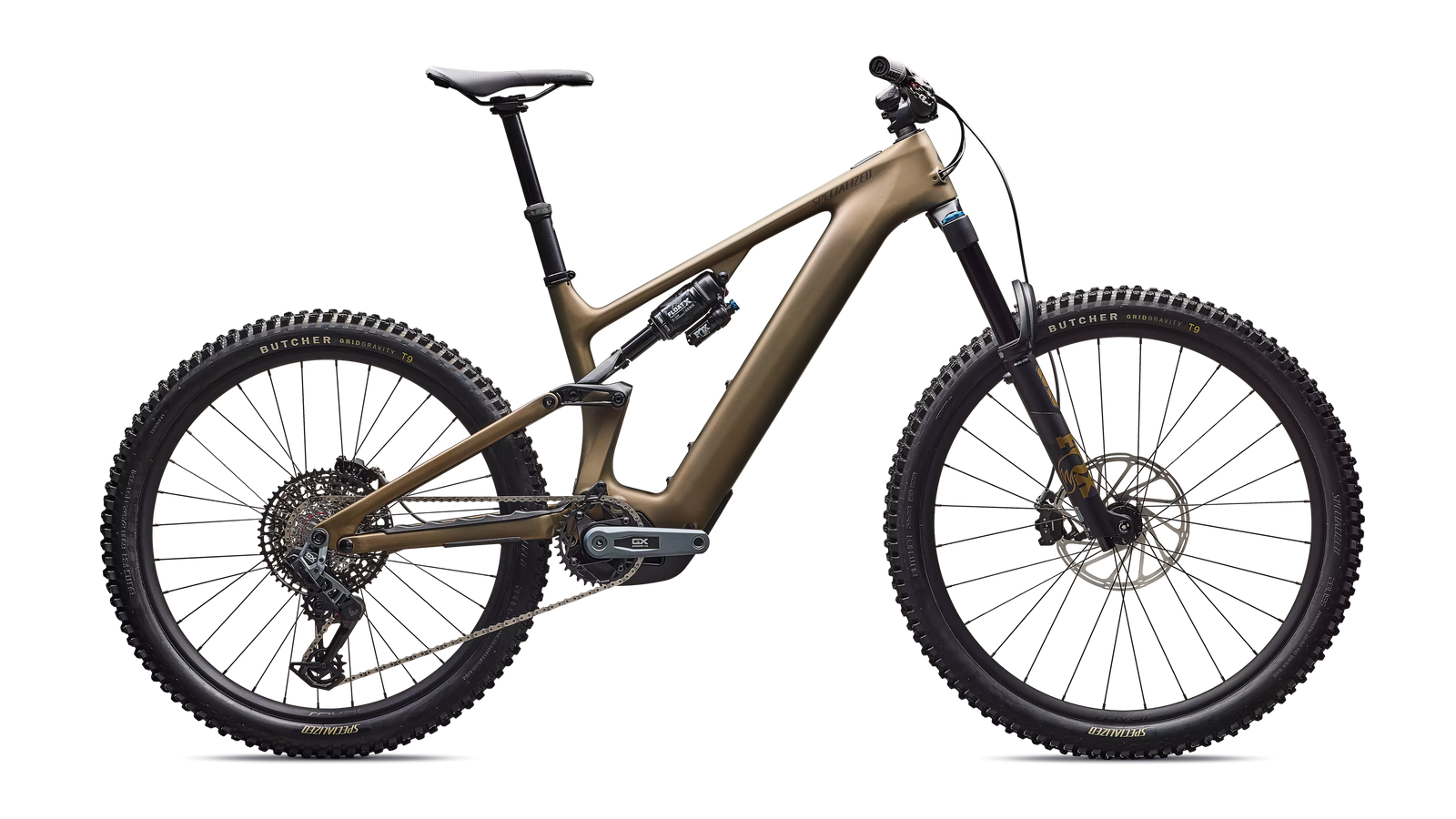

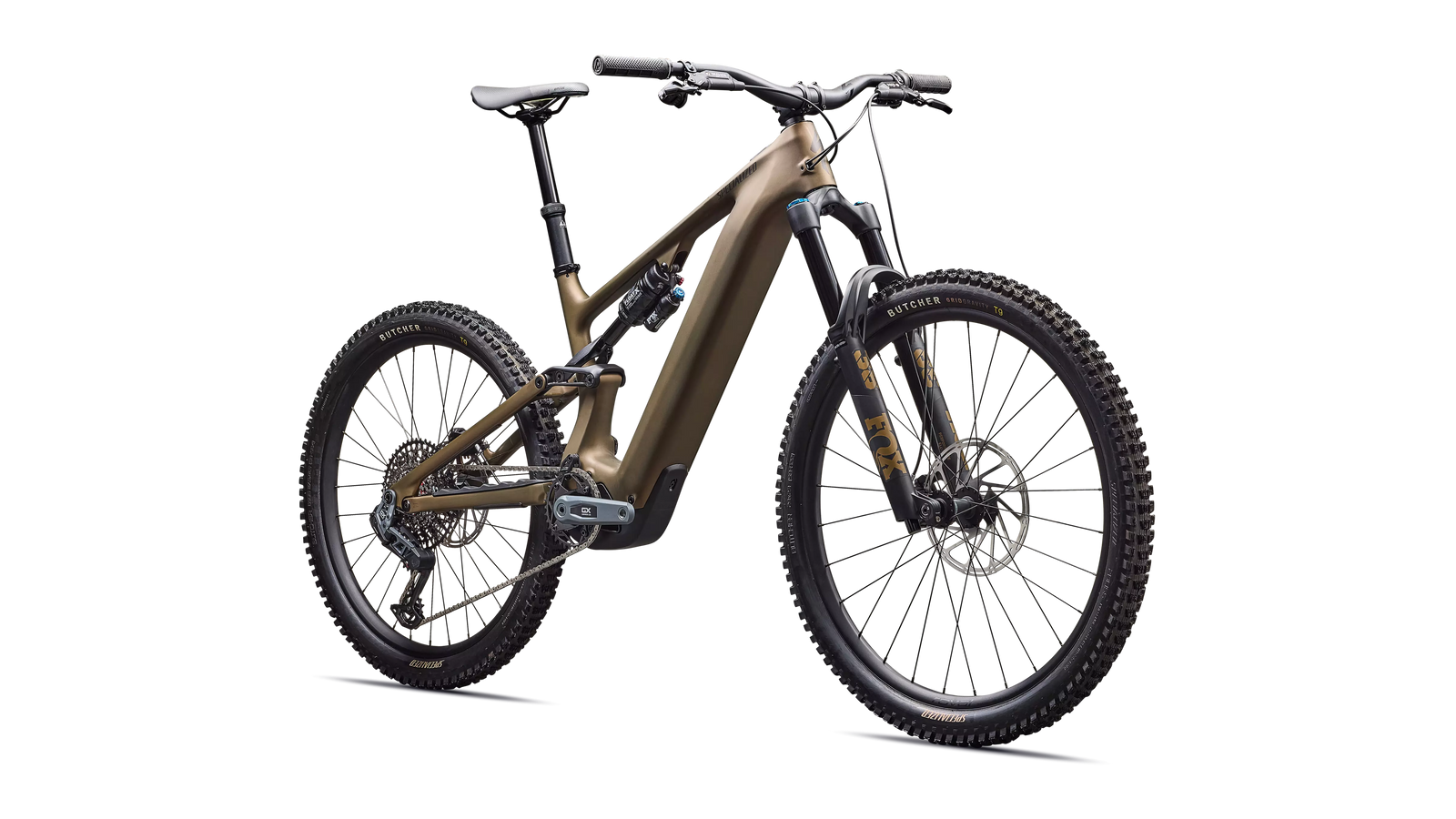

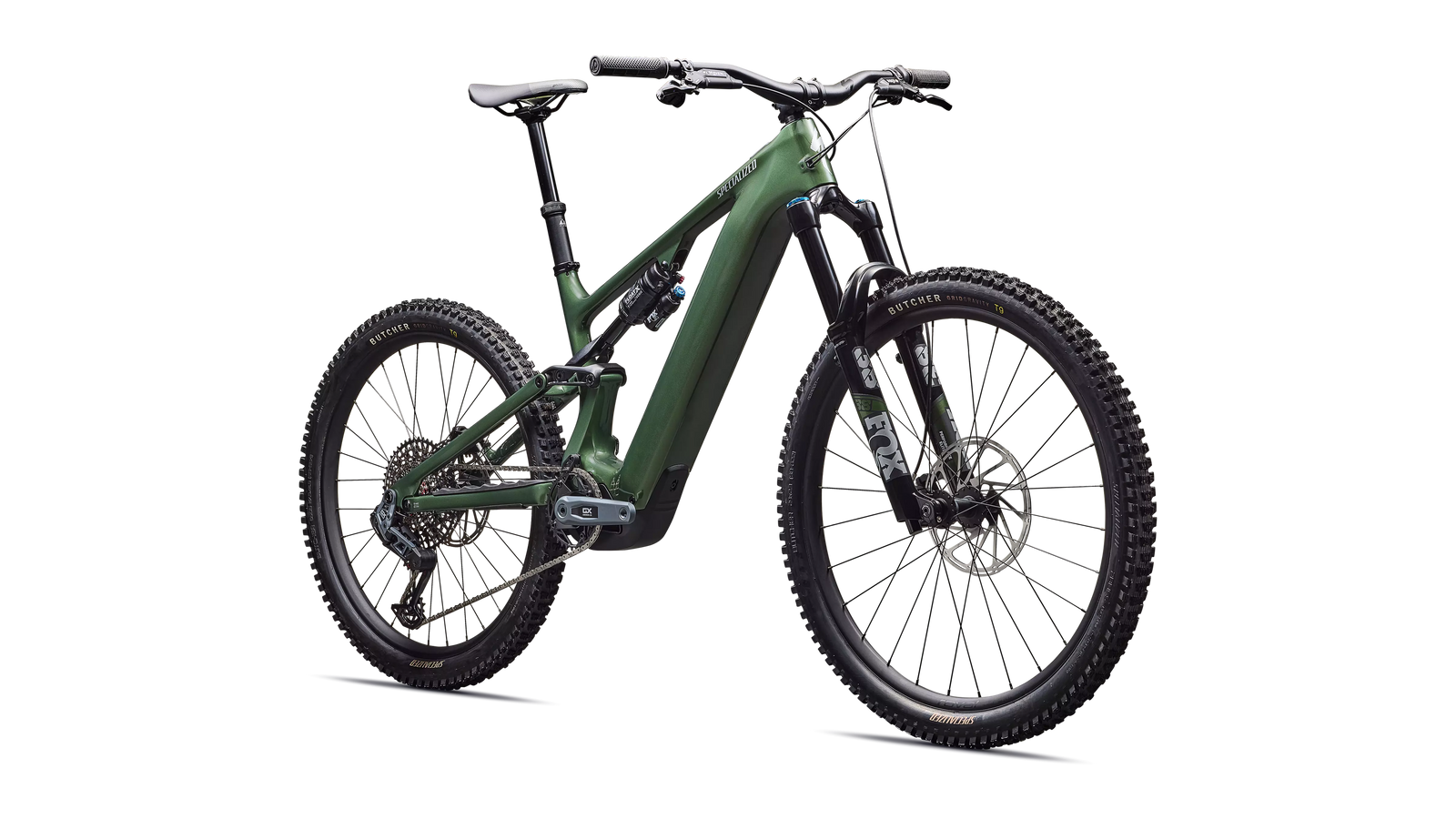

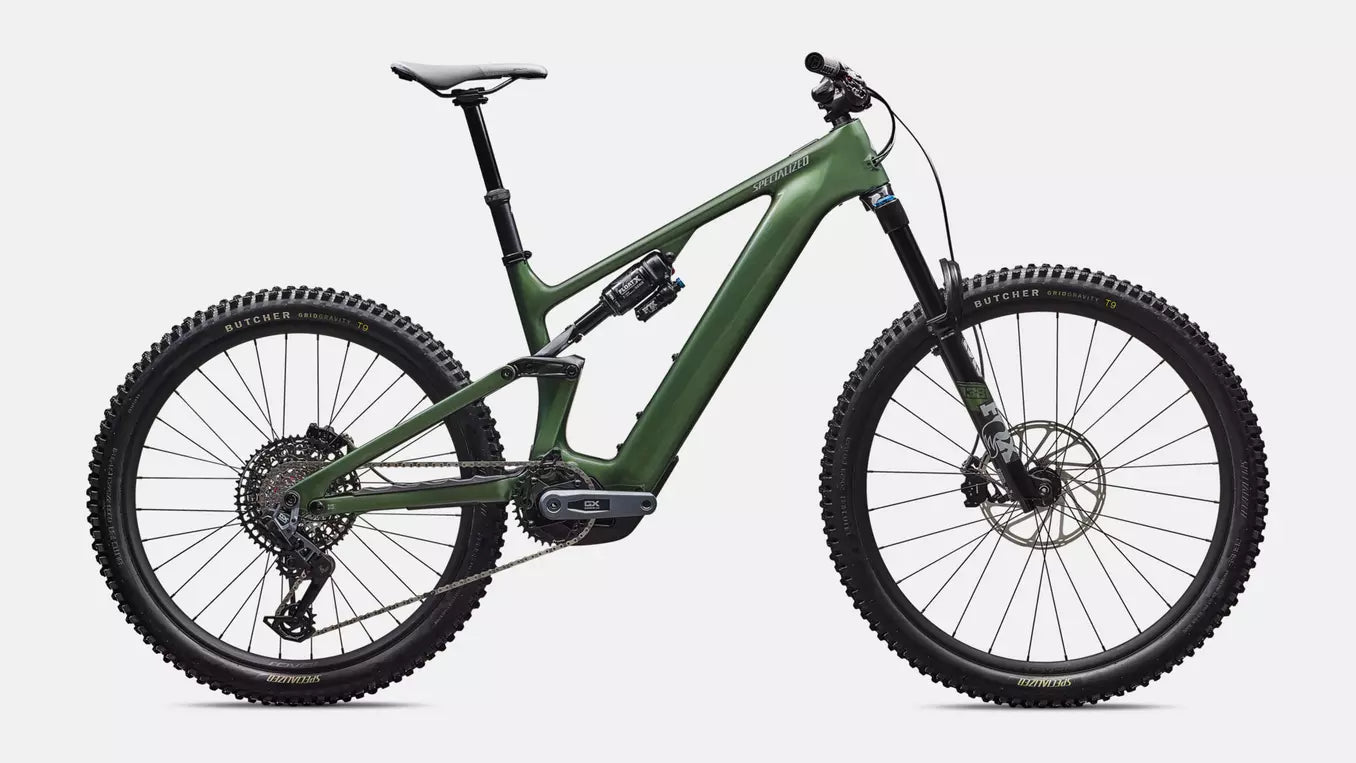

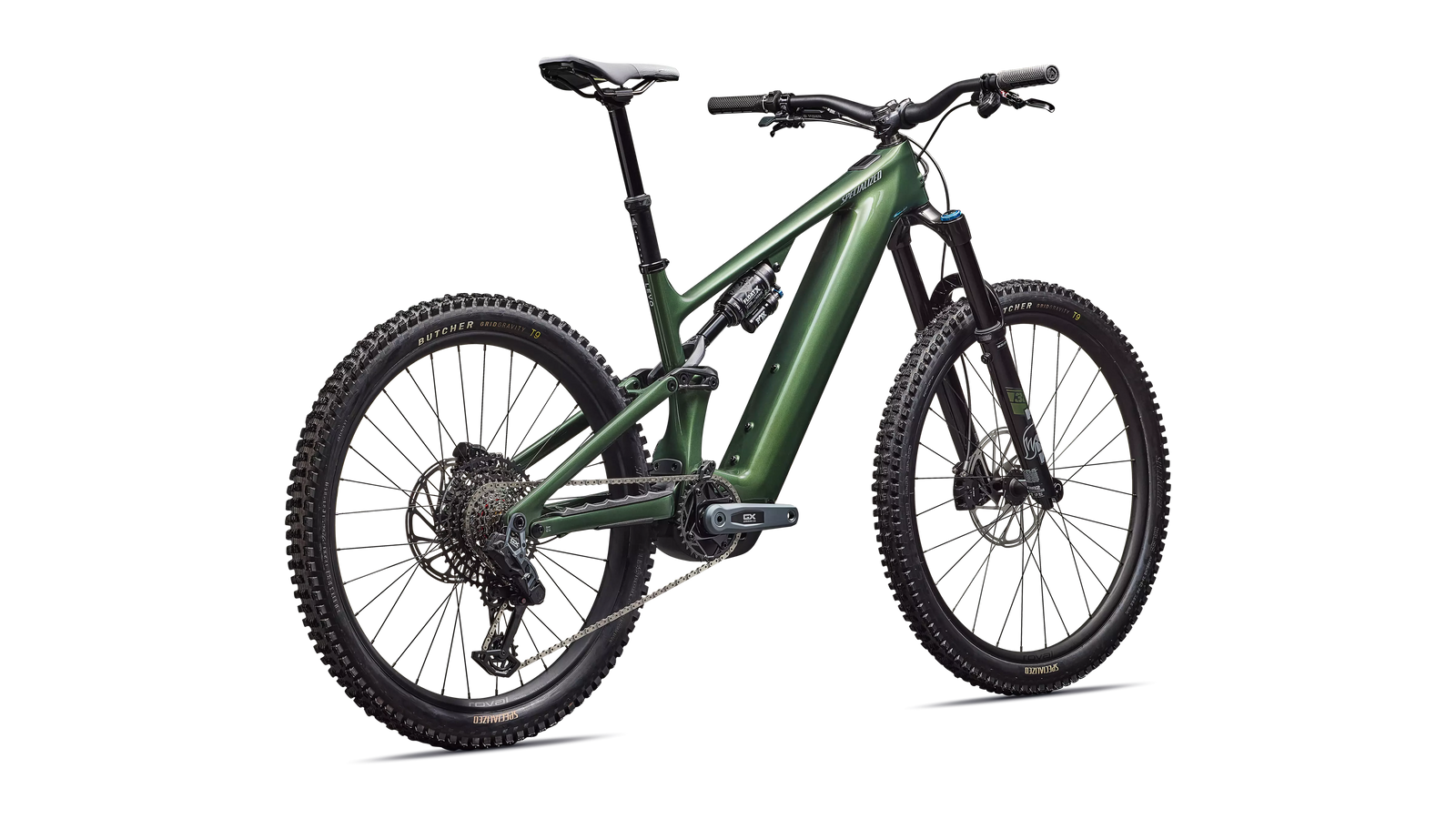

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural

AT A GLANCE...

Use: Full Power E-MTB Trail

E-System: Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh Battery, up to 5.33 hour range

Frame: FACT 11m Carbon, Geo Adj & SWAT Storage

Suspension: Front: 160mm FOX 38 Performance Elite GRIPX2<br>Rear: 150mm GENIE - FOX FLOAT X Performance Elite

Drivetrain: SRAM GX Eagle T-Type AXS

Wheels: Roval Traverse Alloy / DT 370

TECHNICAL SPECIFICATIONS...

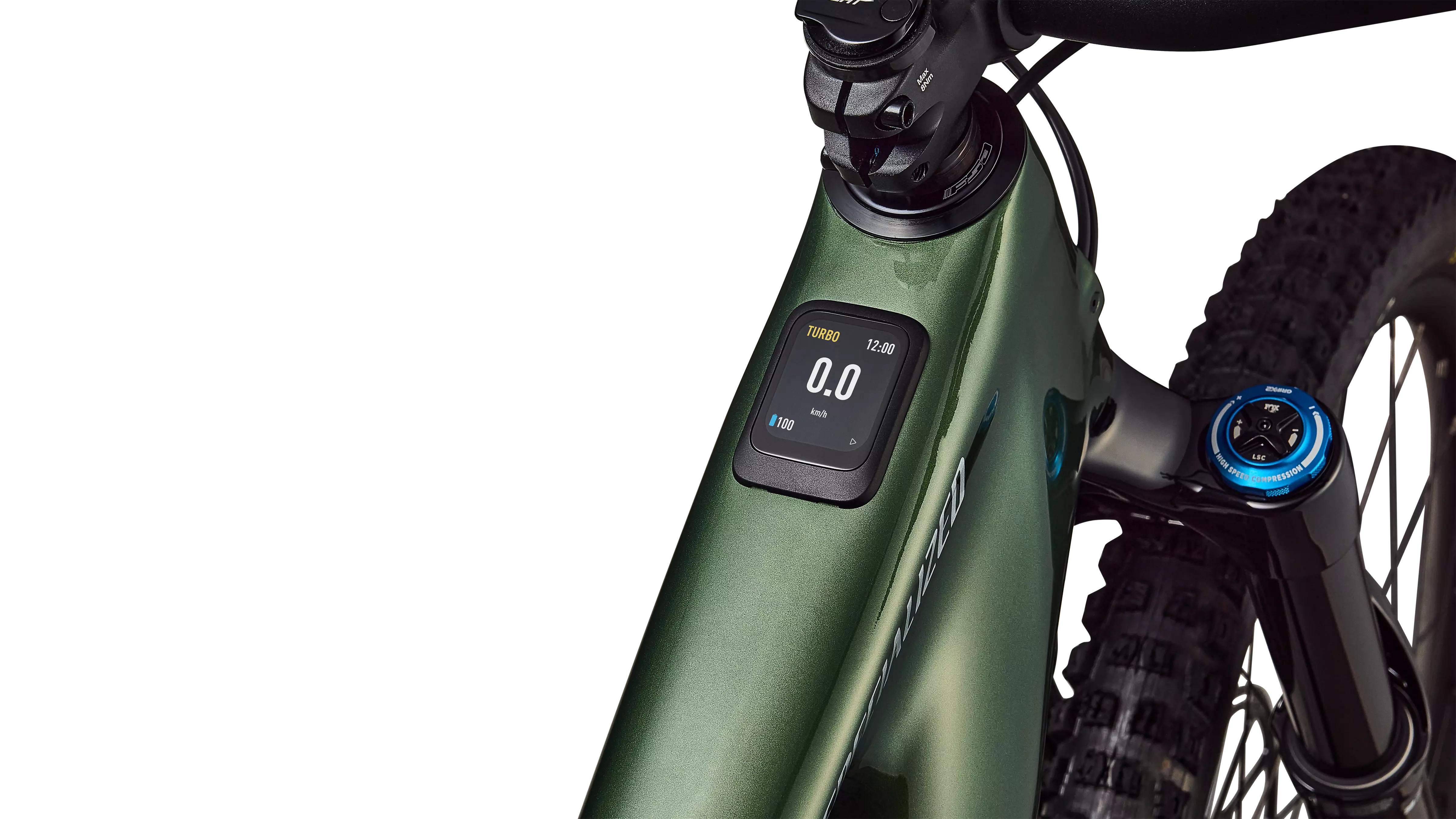

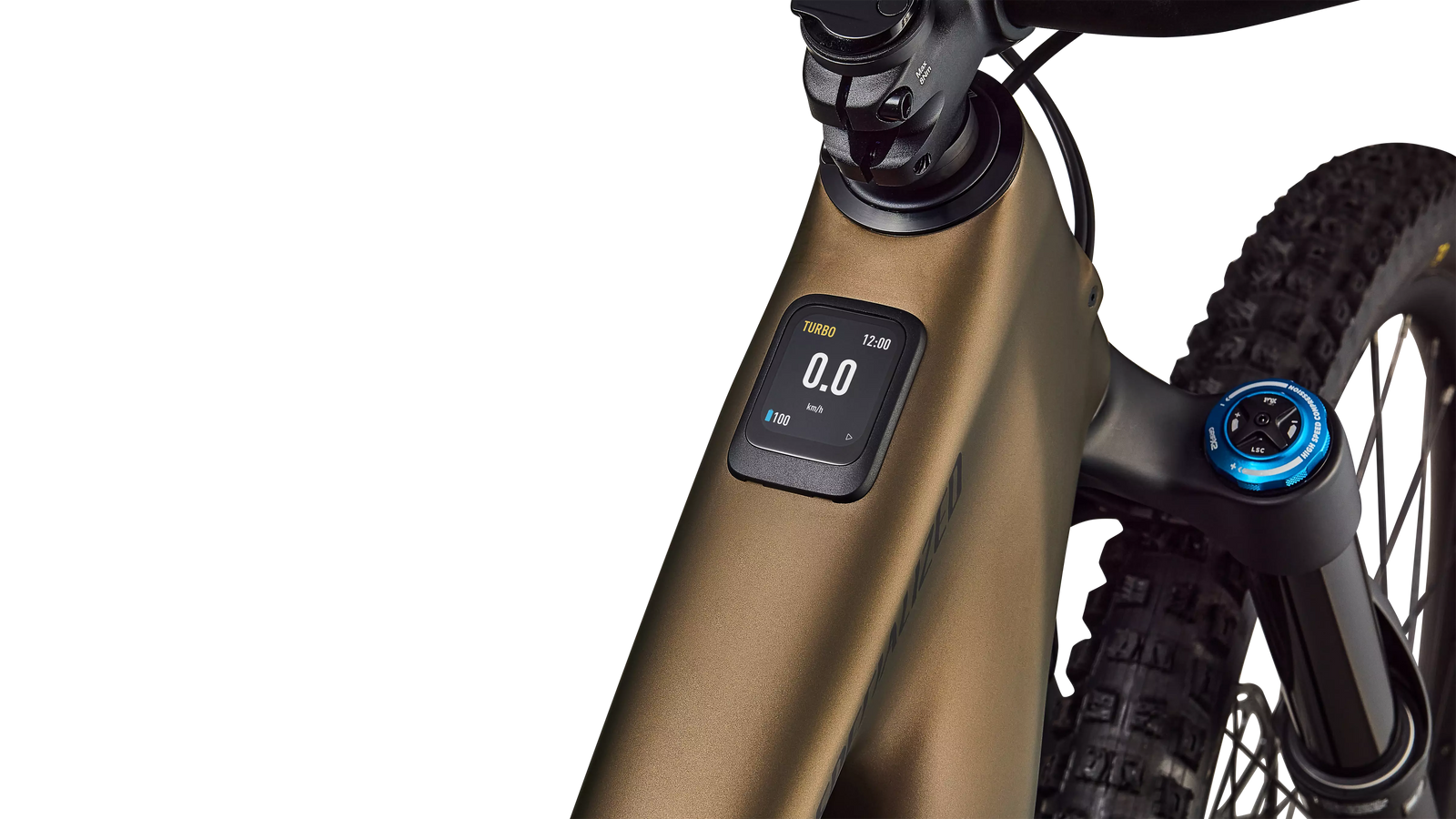

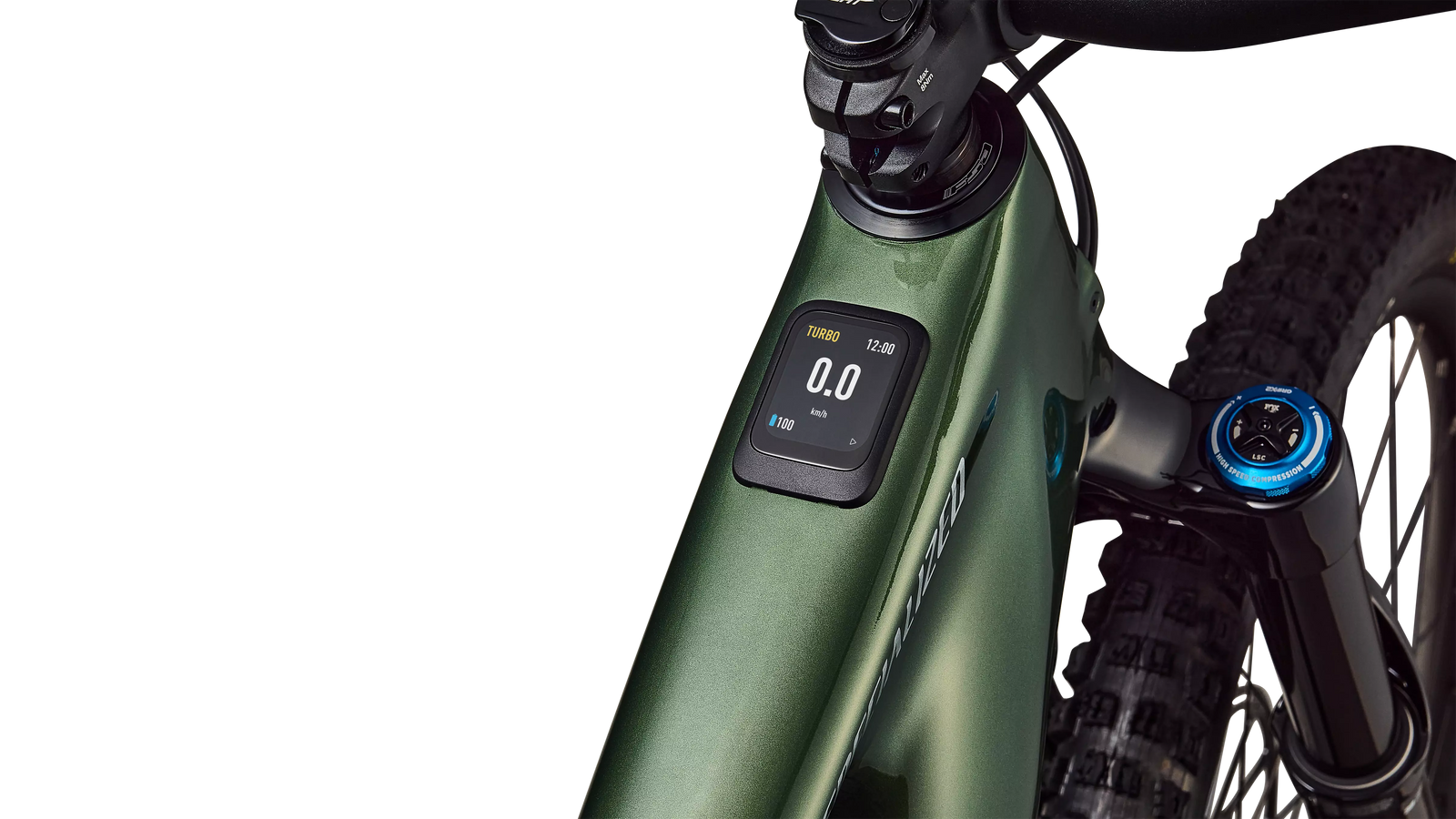

UI/Remote: All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized app

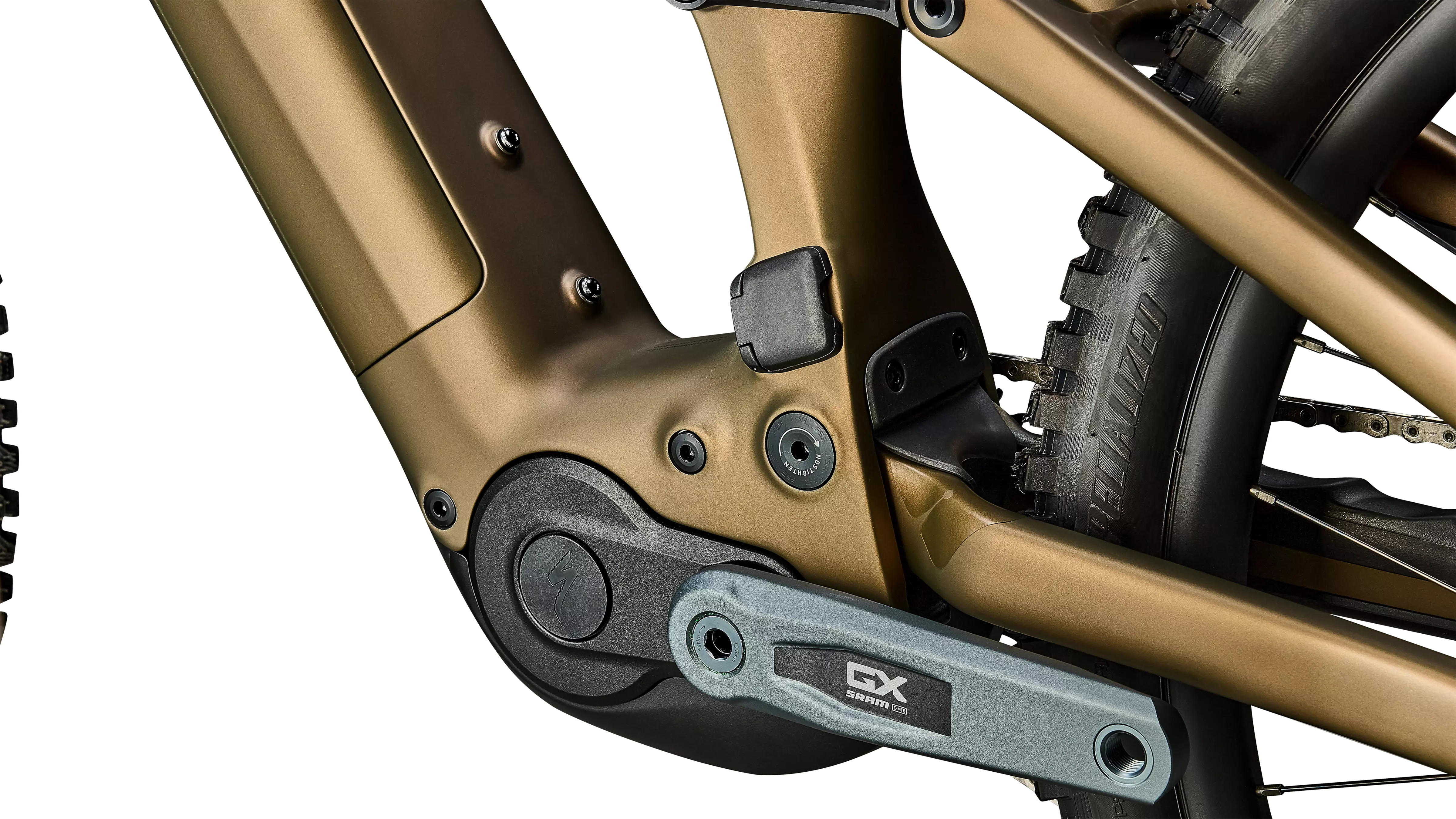

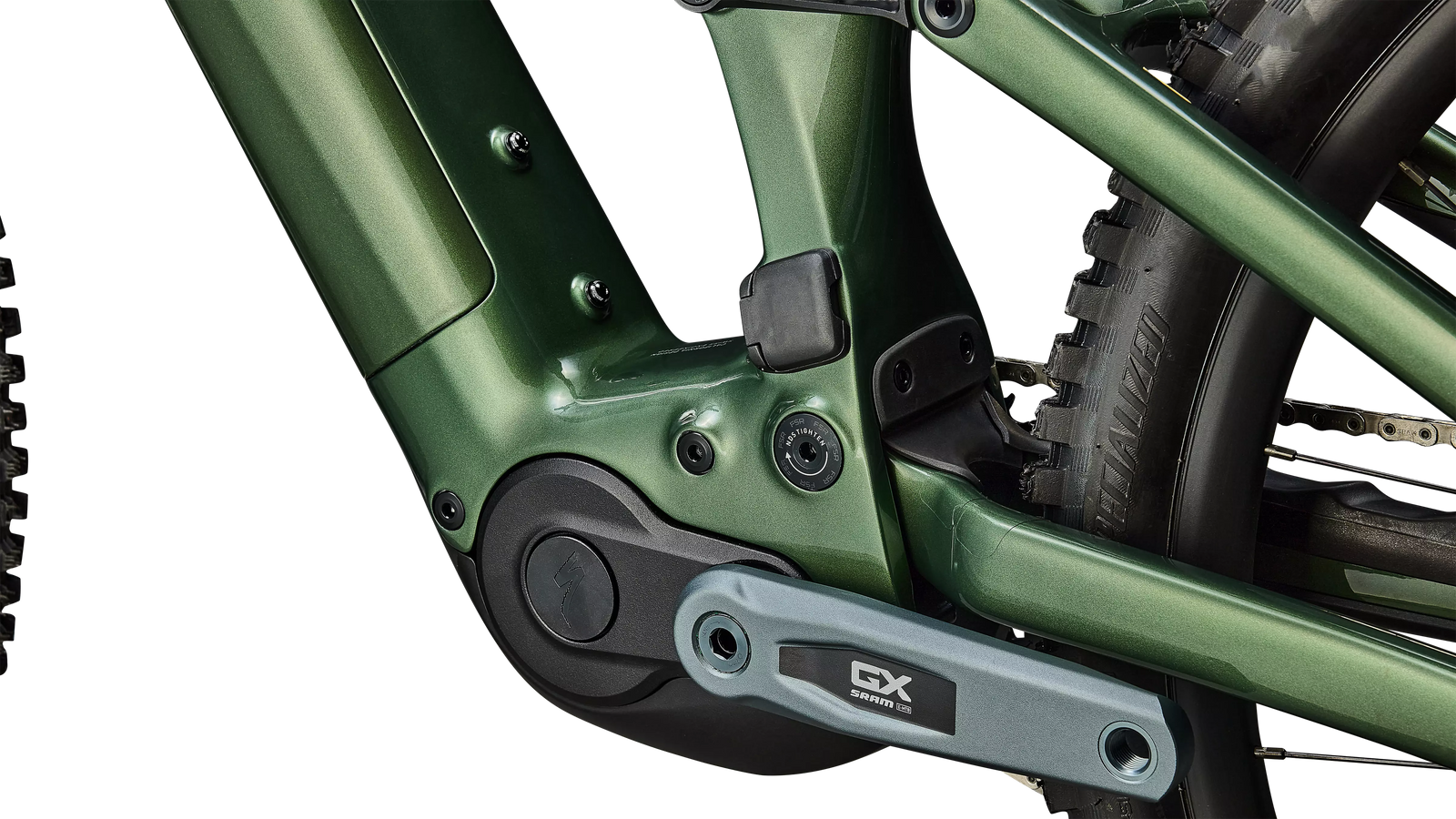

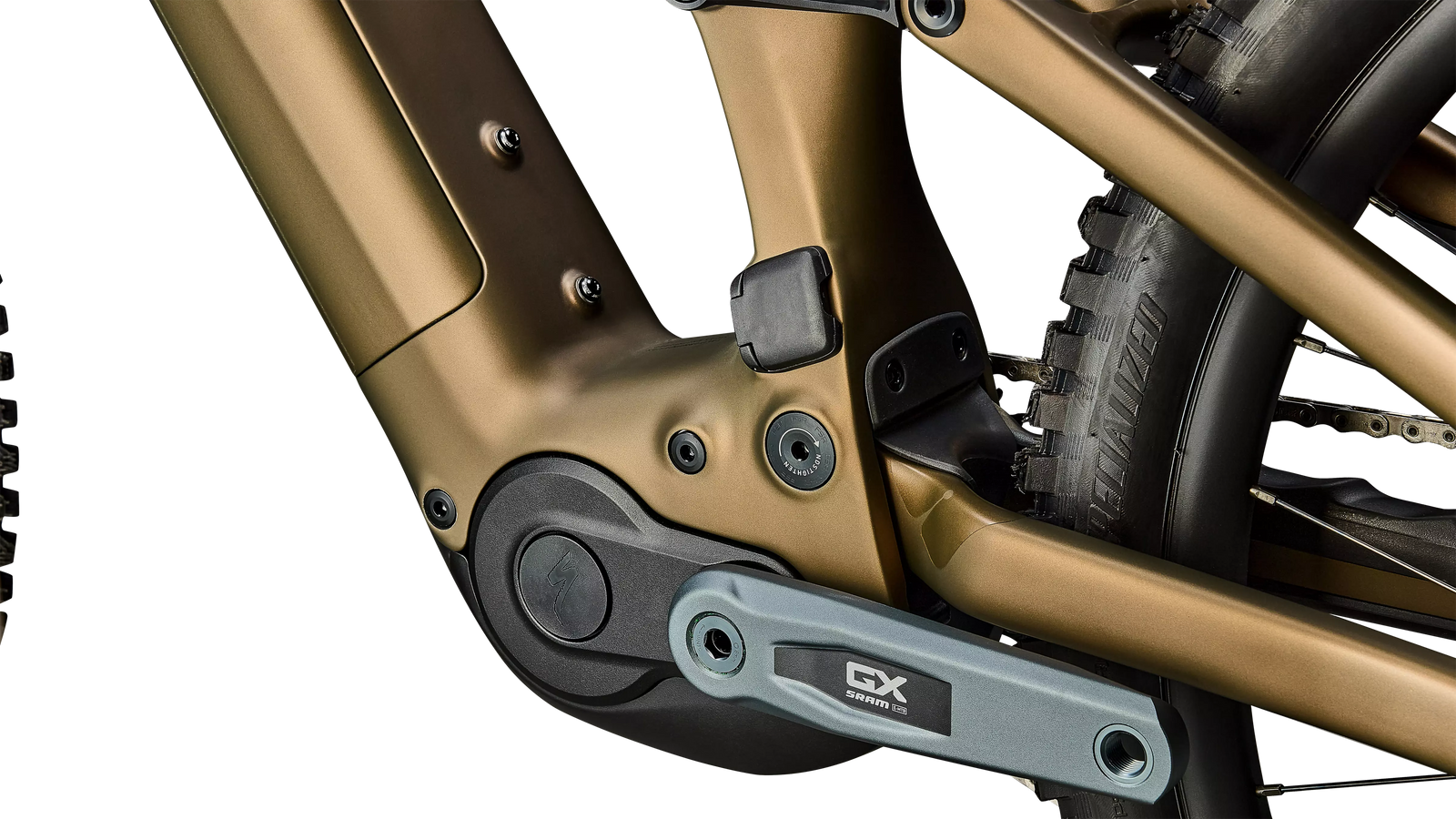

Motor: All New Specialized 3.1 Motor, 101Nm torque, 666W power

Charger: Specialized 4amp charger

Battery: 840wh battery

Frameset: Seat BinderAlloy, 38.6mm

Frame: All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, w/ SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm

Fork: FOX 38 Performance Elite series, 29", GRIP X2 damper,15x110mm axle, 44mm offset, 160mm of travel

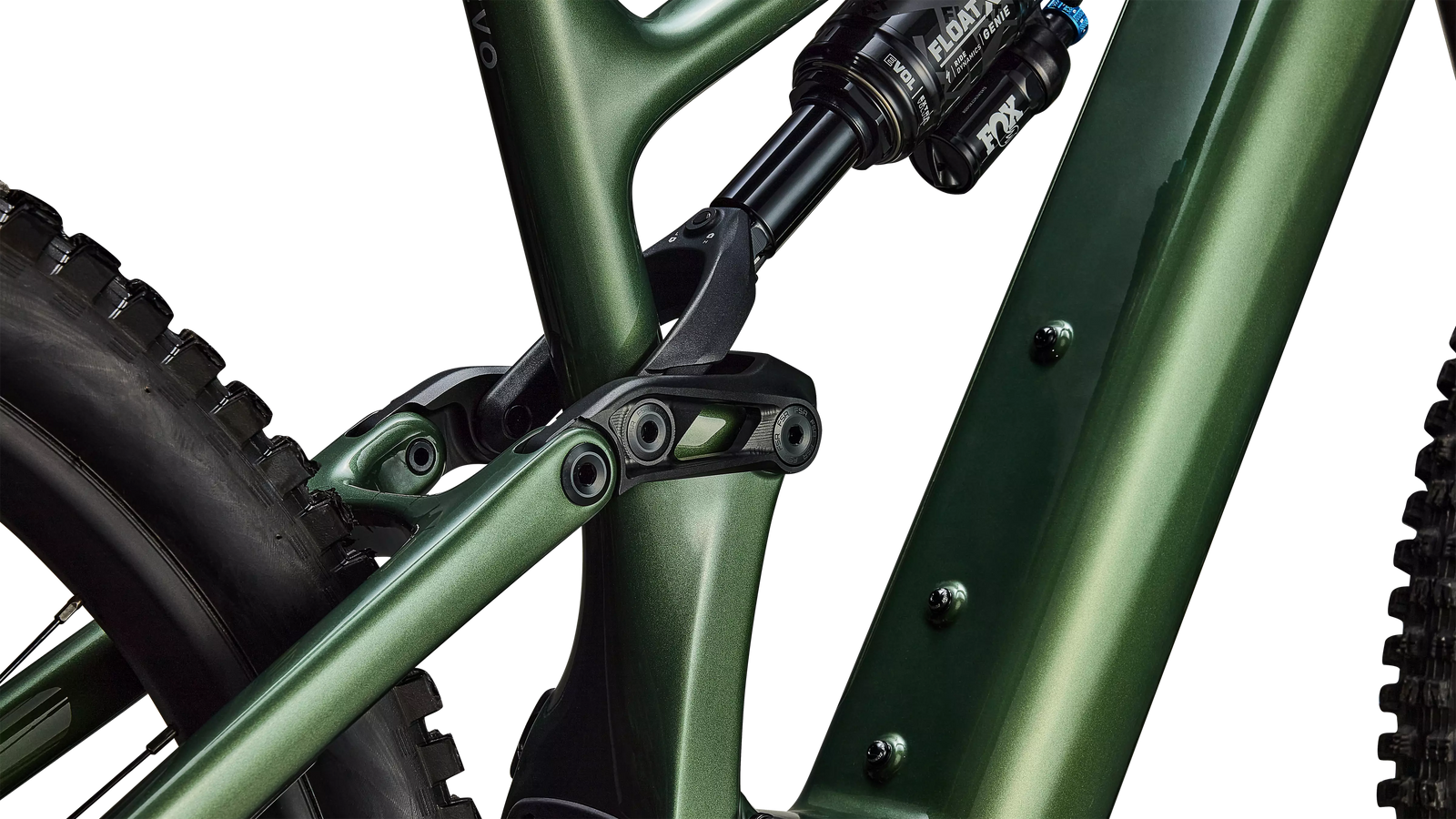

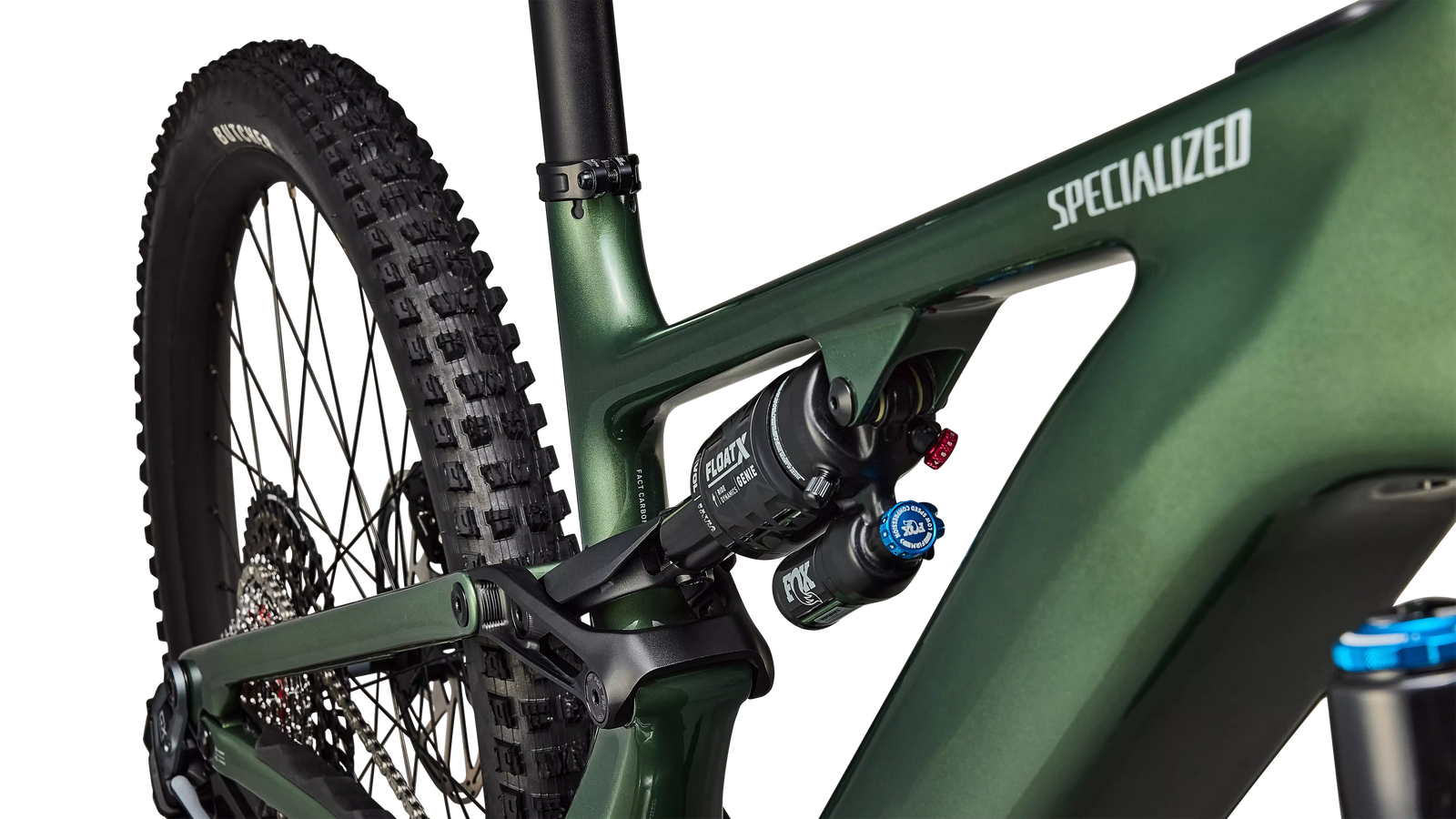

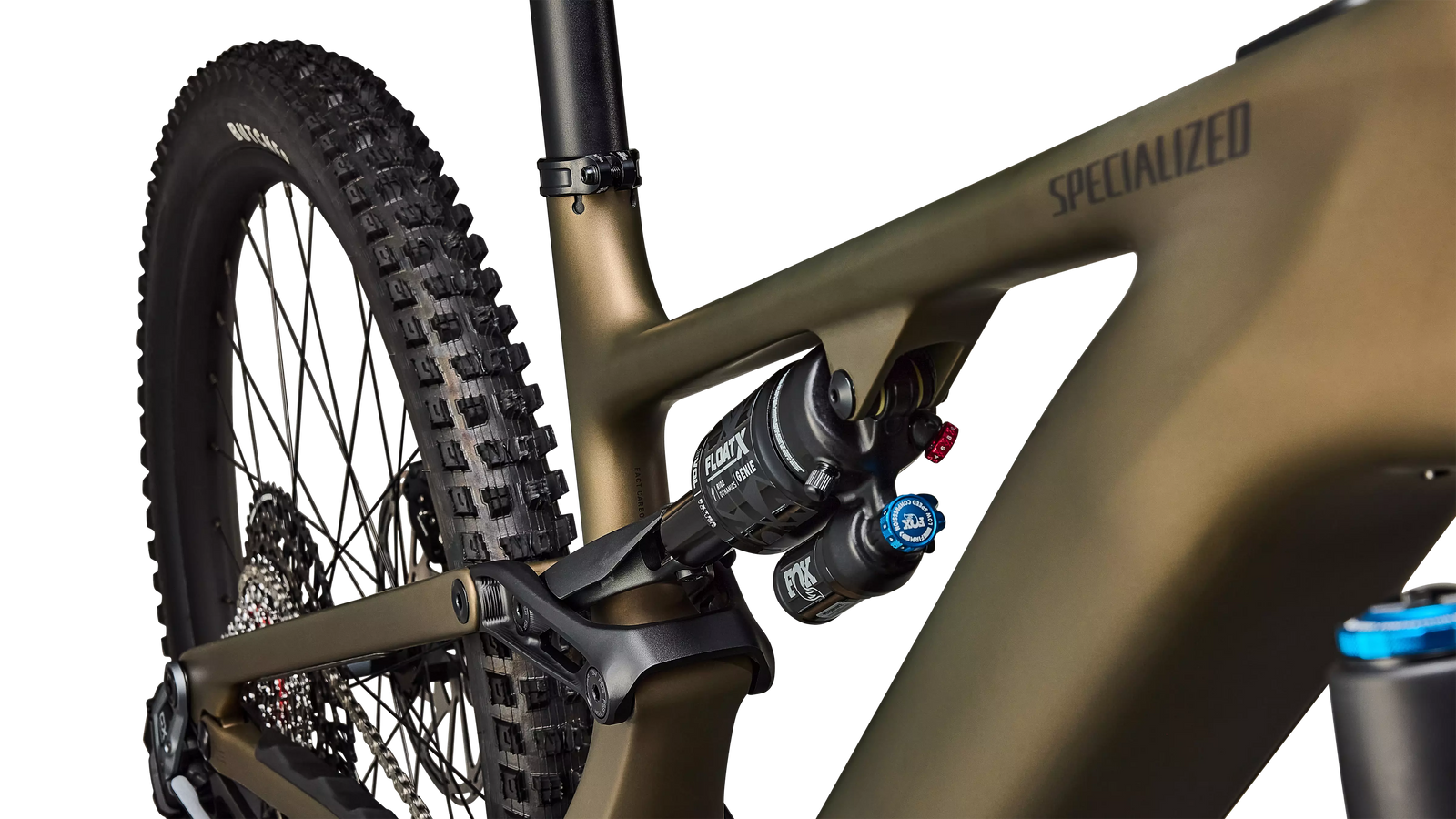

Rear Shock: FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment

Front Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm Rotor

Rear Brake: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor

Chainrings: SRAM 34t T-Type chainring, 104 BCD, steel

Shift Levers: SRAM AXS POD Controller

Crankset: SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm

Rear Derailleur: SRAM GX Eagle Transmission Derailleur

Chain: SRAM GX Eagle Transmission Flattop Chain

Cassette: SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"

Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"

Front Wheel: Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h

Rear Wheel: Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h

Inner Tubes: Standard, Presta valve

Stem: Alloy Trail Stem, 35mm bar bore

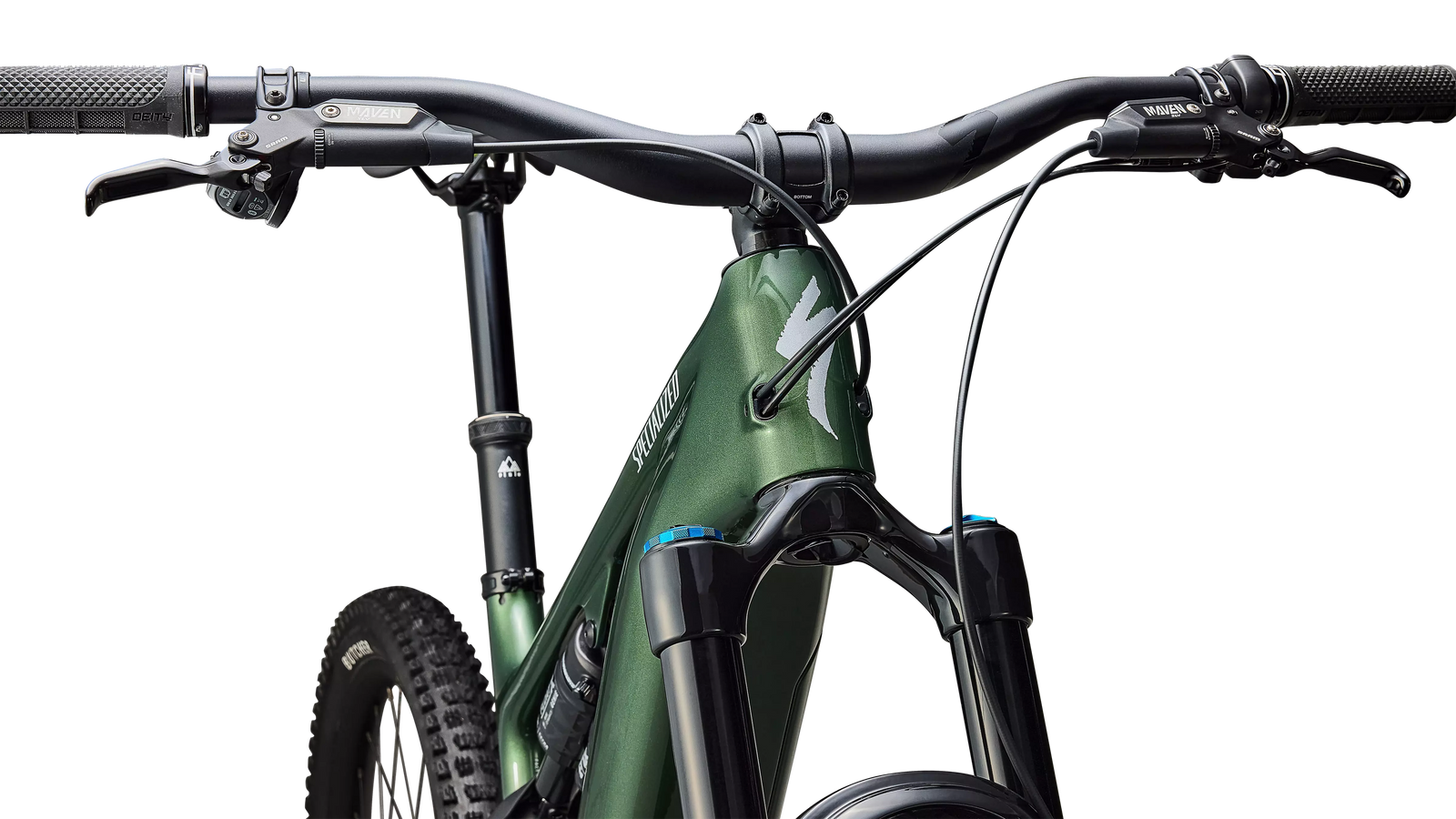

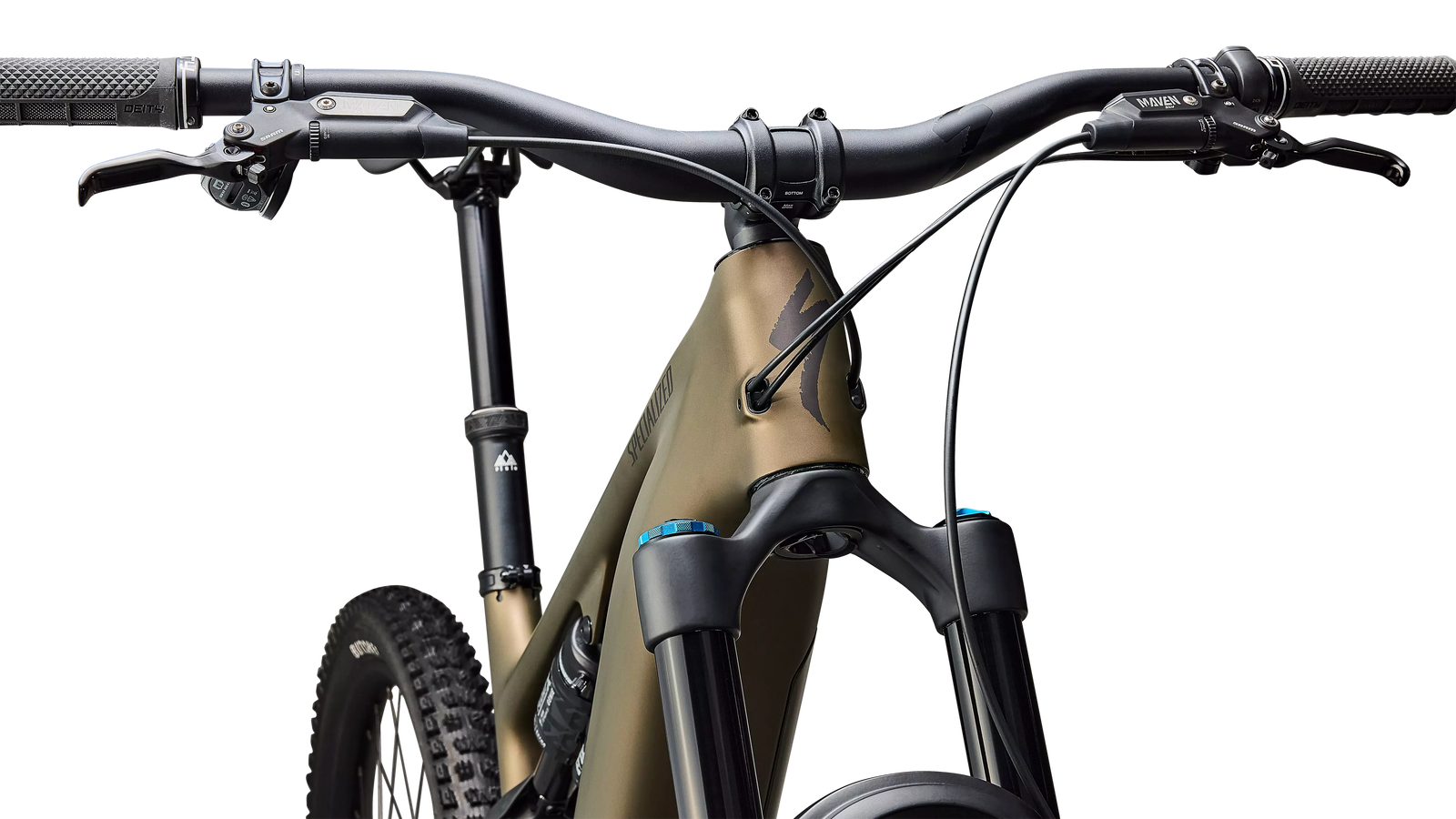

Handlebars: Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 780mm, S3-S5: 800mm

Grips: Deity Lockjaw grips

Seat Post: PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm

Saddle: Bridge Comp, Hollow Cr-mo rails

Weight: 24.41 kg (53 lb, 13.0 oz) -Weight Size S4
