Description

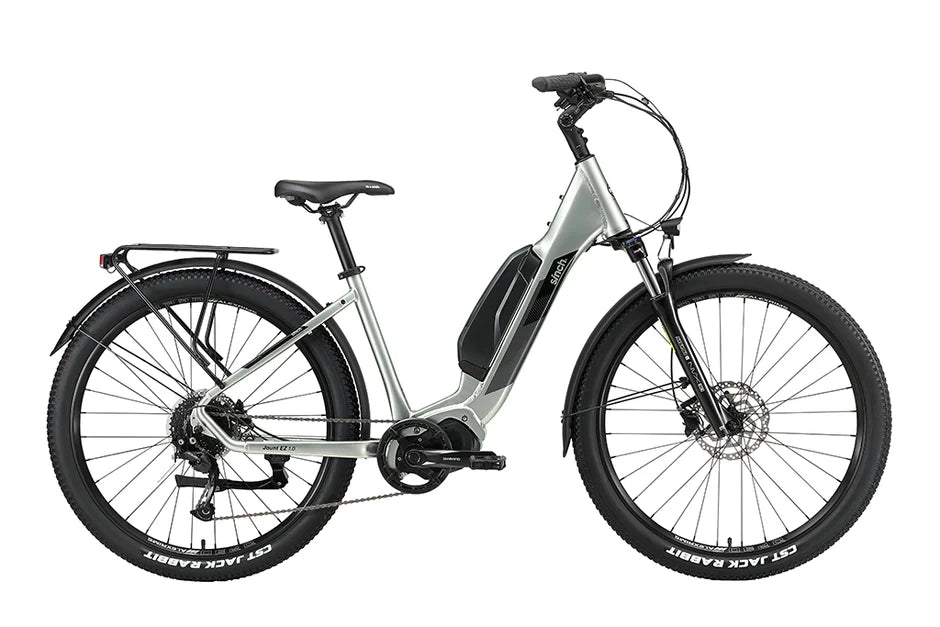

The Jaunt EZ 1 is a comfortable, premium, value-for-money bike that suits a wider range of riders from those with casual inclination to those who want to push themselves further.

Frameset

• Frame

  6061 E Bike Specific Step-through Aluminum Frame

• Front Suspension

  SR Suntour NVX30, 80mm travel, with preload adjustment and hydraulic lockout

Motor

• Drive Unit

  Shimano STEPS DU-E5000, 250watt 40Nm, 32km/hr

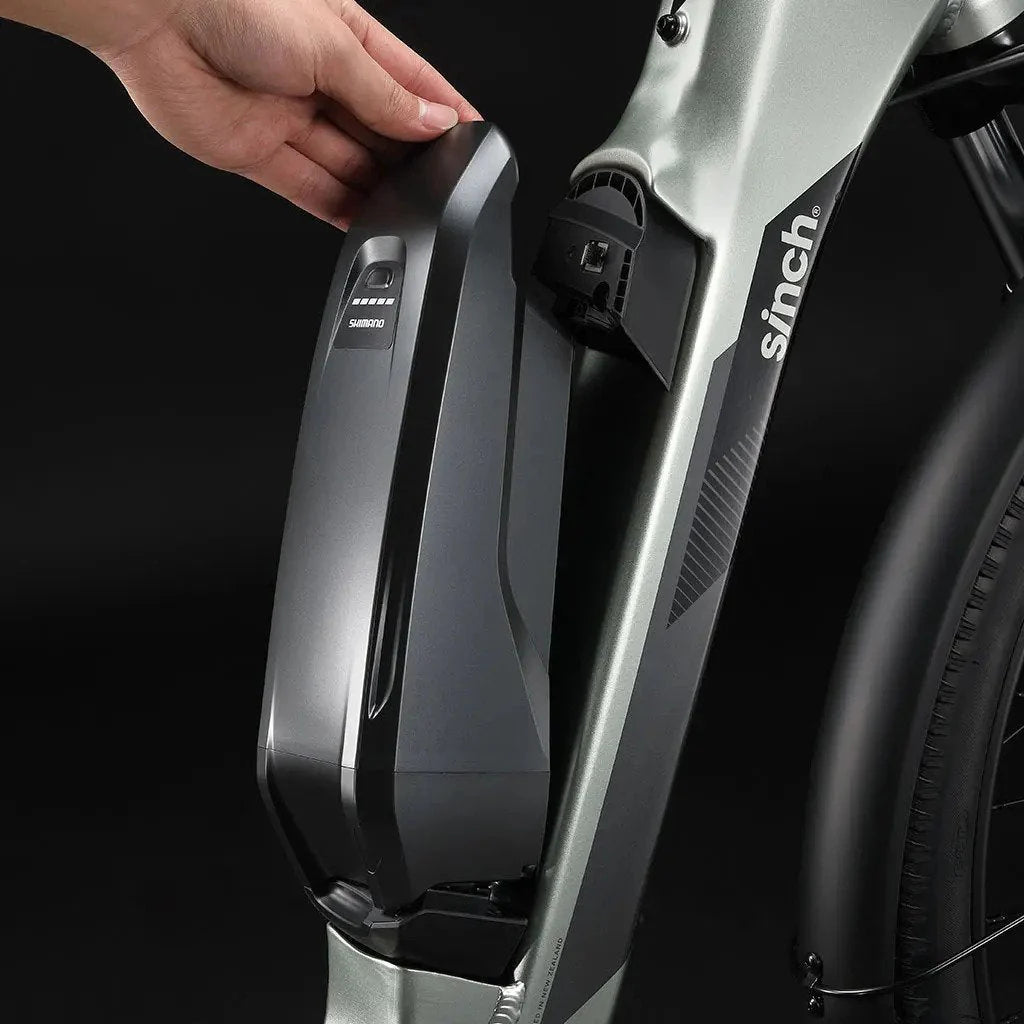

• Battery

  Shimano Steps BT-E8014, 36V 11.6Ah 418Wh

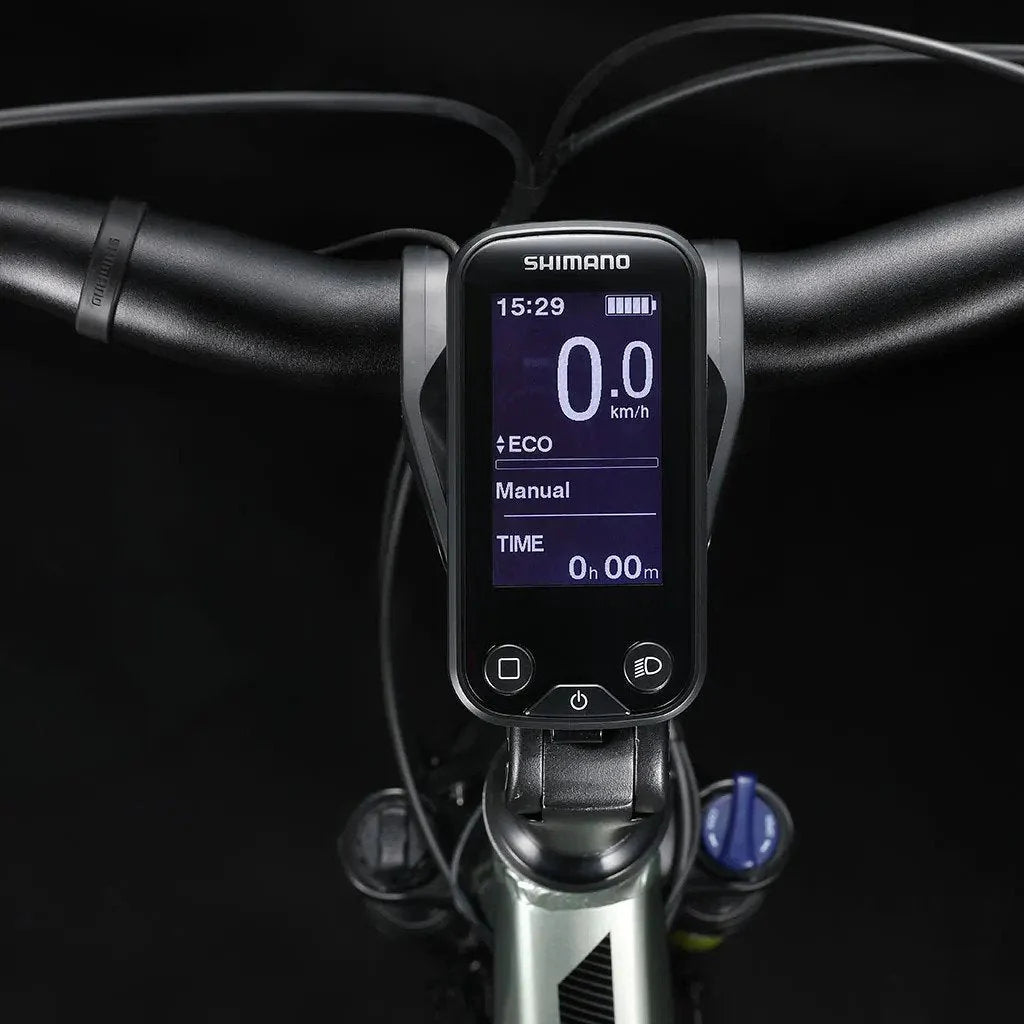

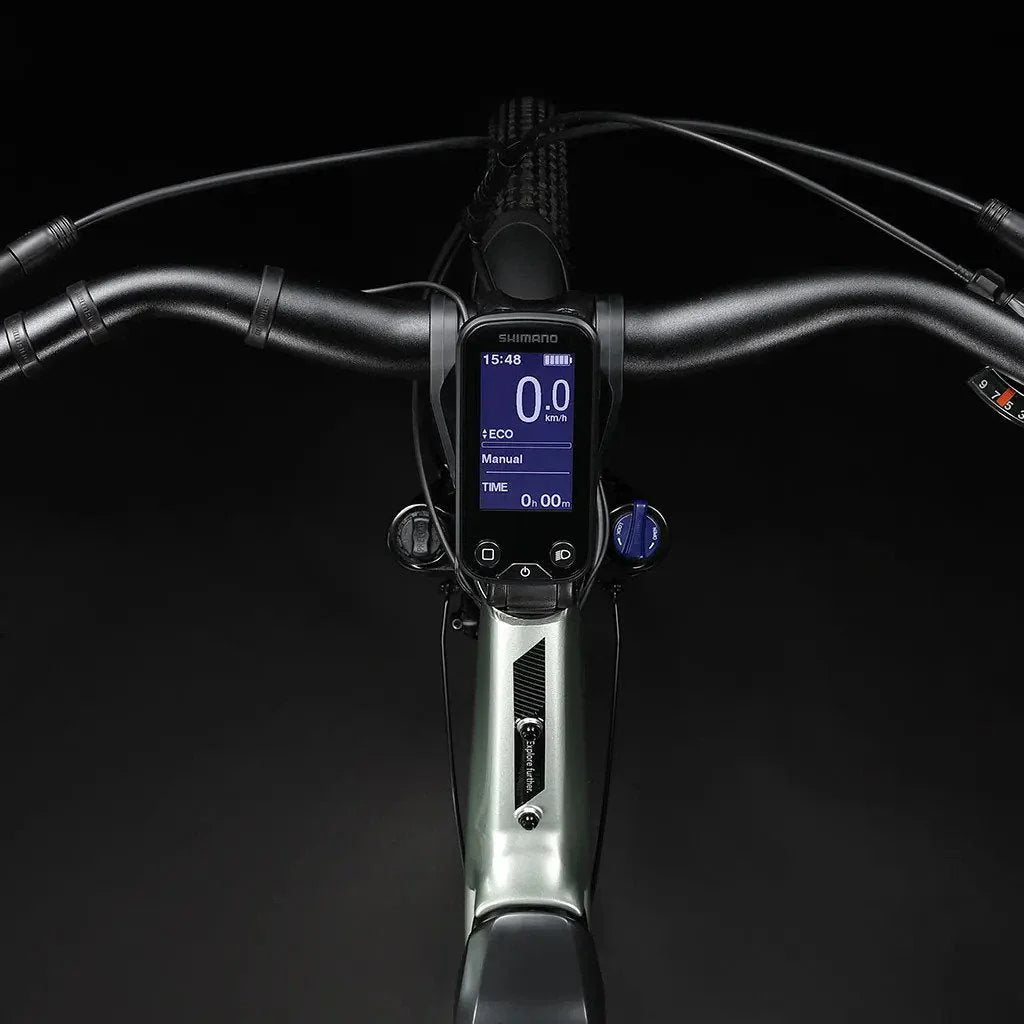

• Display

  Shimano Steps SC-E6100 Cycle Computer

Wheels

• HUBS

  Shimano TX-505 32H

• RIMS

  Alex DP30 Double Wall 27.5” 32H A/V

• TYRES

  CST Jack Rabbit 27.5x2.25”

Drivetrain

• Shifter

  Shimano Alivio SL-M3100 9 Speed

• Derailleur

  Shimano Alivio RD-M3100 9 Speed

• Crankset

  Shimano FC-E5010 with SM-CRE50 38T Chainring and double Chainguard

• Cassette

  Shimano Cassette HG200 11-36T 9 Speed

• Chain

  Shimano CN-E6070 9 Speed e-bike specific

• Pedals

  Sinch Nylon comfort

Components

• Brakeset

  Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors

• Saddle

  Sinch Comfort 199mm Gel Dual density

• Seat post

  Sinch Alloy Micro Adjust, 31.6mm

• Bar

  Sinch Alloy Comfort, 26mm rise, 30° sweep, 680mm

• Stem

  Sinch Alloy 31.8mm, Adjustable

• Grips

  Sinch Comfort Gel Lock-on dual density

Accessories

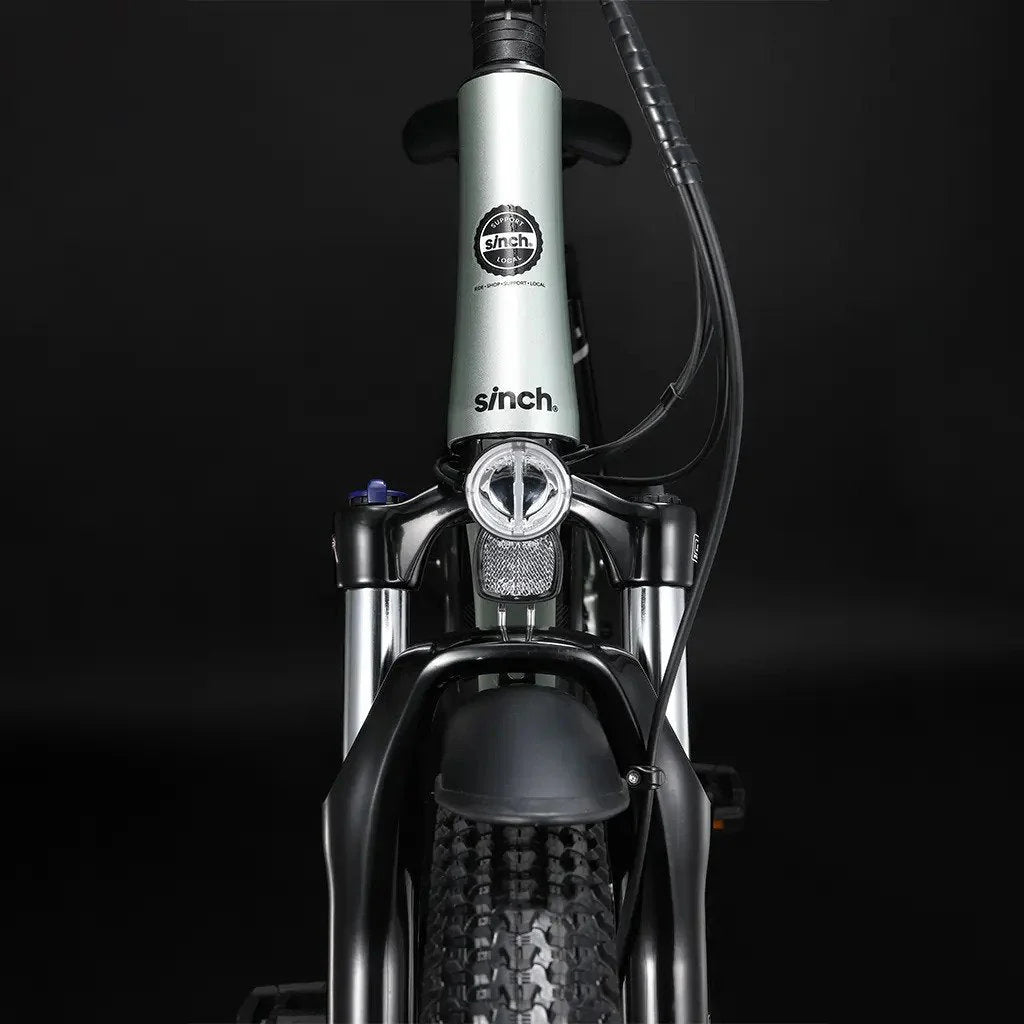

• Lights

  Spanninga Axendo 25 Front, Solo Rear

• Accessories

  Mudguards, Rear Carrier, Kickstand

• Sizes

  XS, S/M, M/L=27.5”

• Weight

  22.7kg including battery
