Description

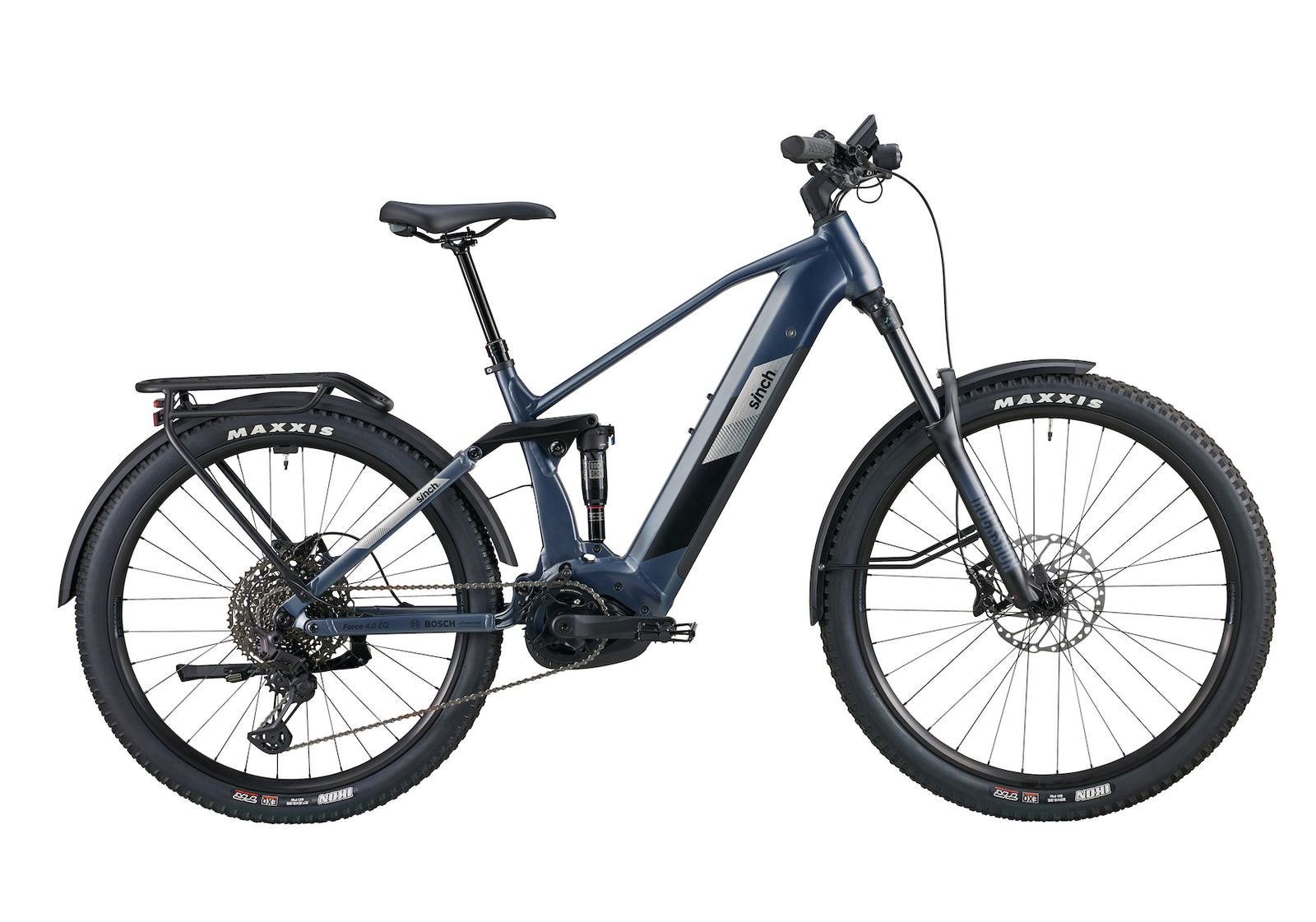

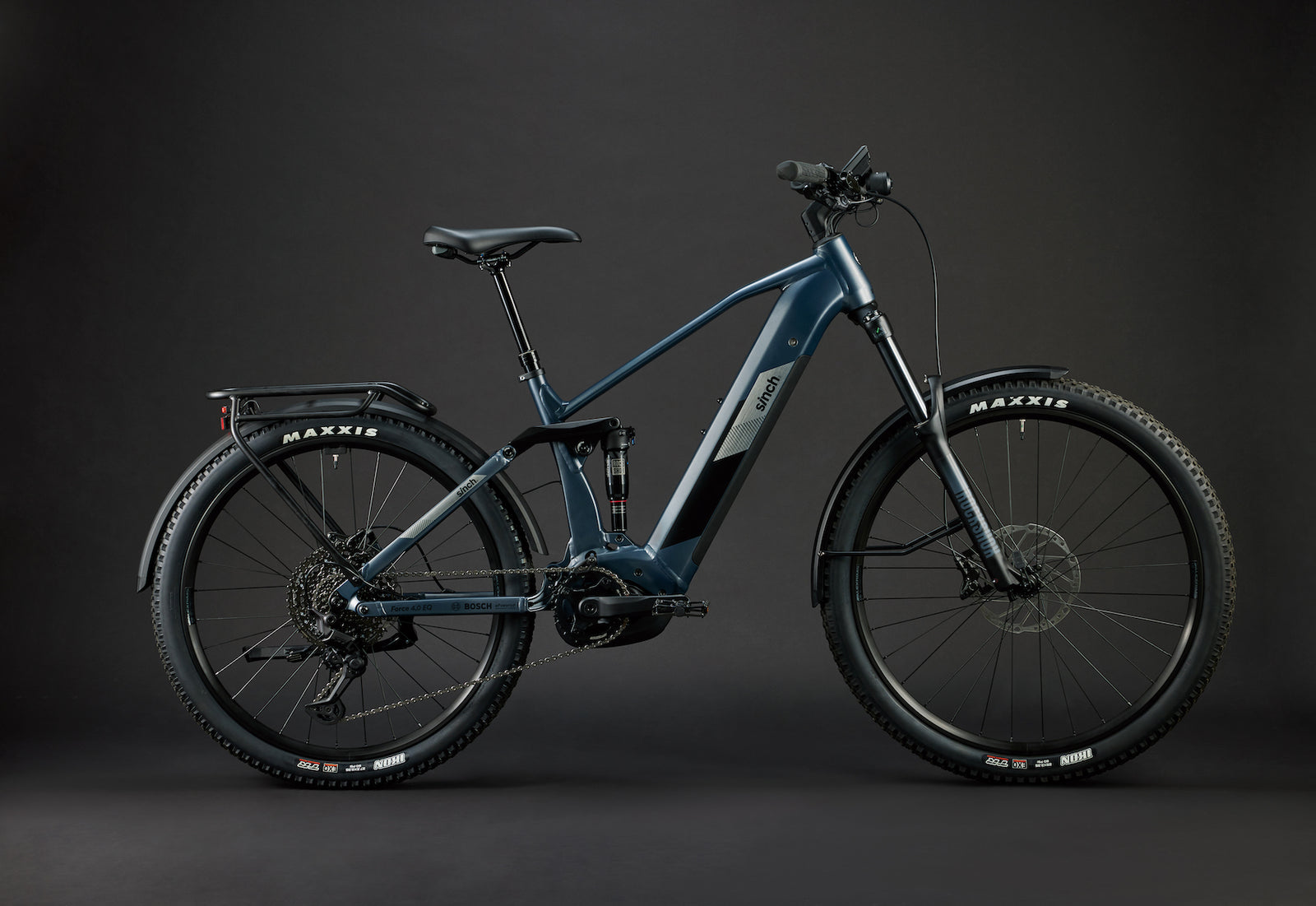

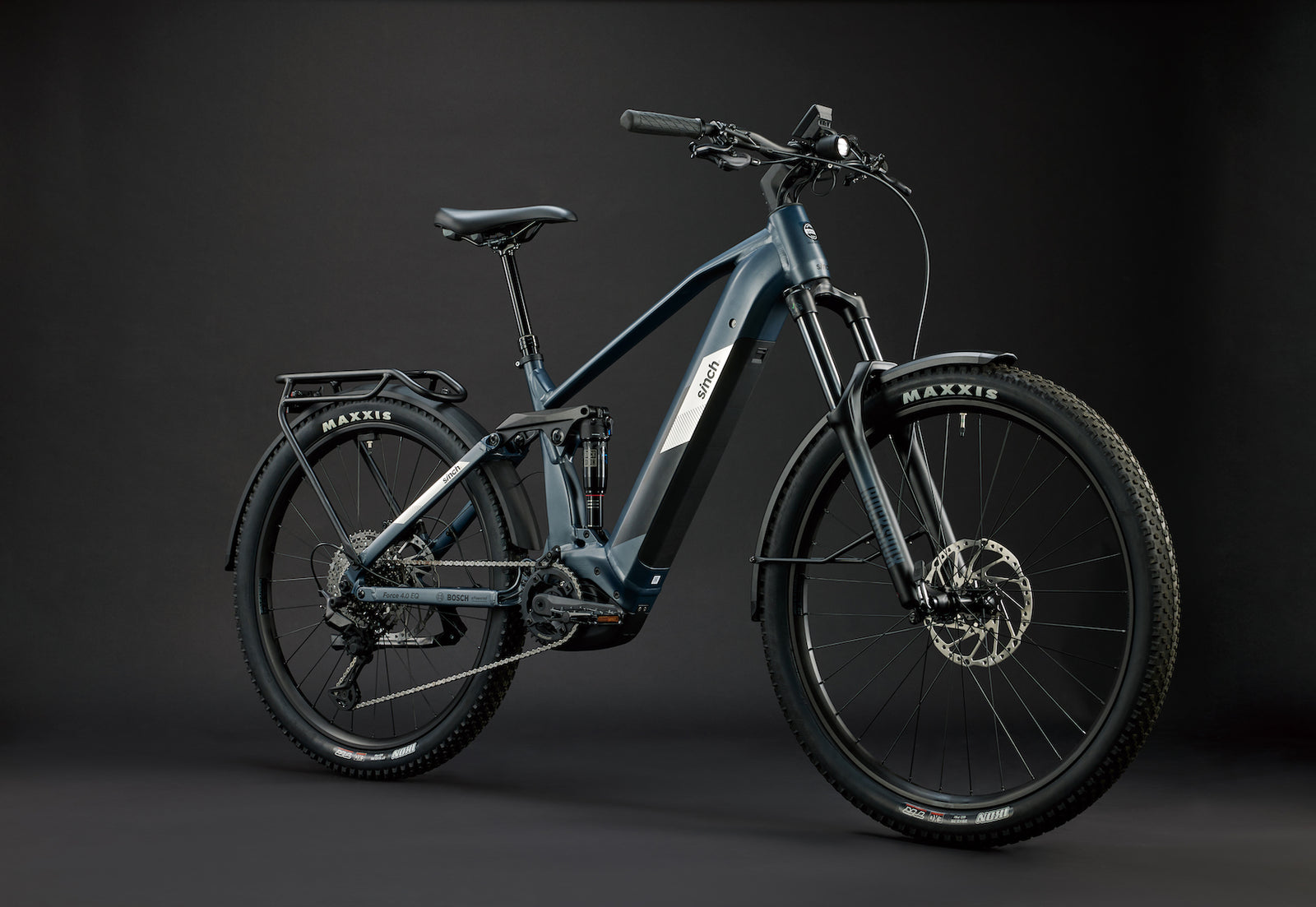

Introducing the Force 4 EQ: Your all-in-one SUV full suspension e-MTB boasting Mullet geometry and internal cable routing frame design. Equipped with integrated lighting, fenders, rear carrier, kickstand, and enhanced comfort features. Powered by Bosch smart system technology, it's the ideal sporty e-bike for outdoor adventures and daily commuting alike.

Frameset

• Frame

  6061 E Bike Specific Aluminum Suspension Mullet Frame with 150mm rear travel and fully intergrated and removable Down Tube battery and internal cable management system

• Front Suspension

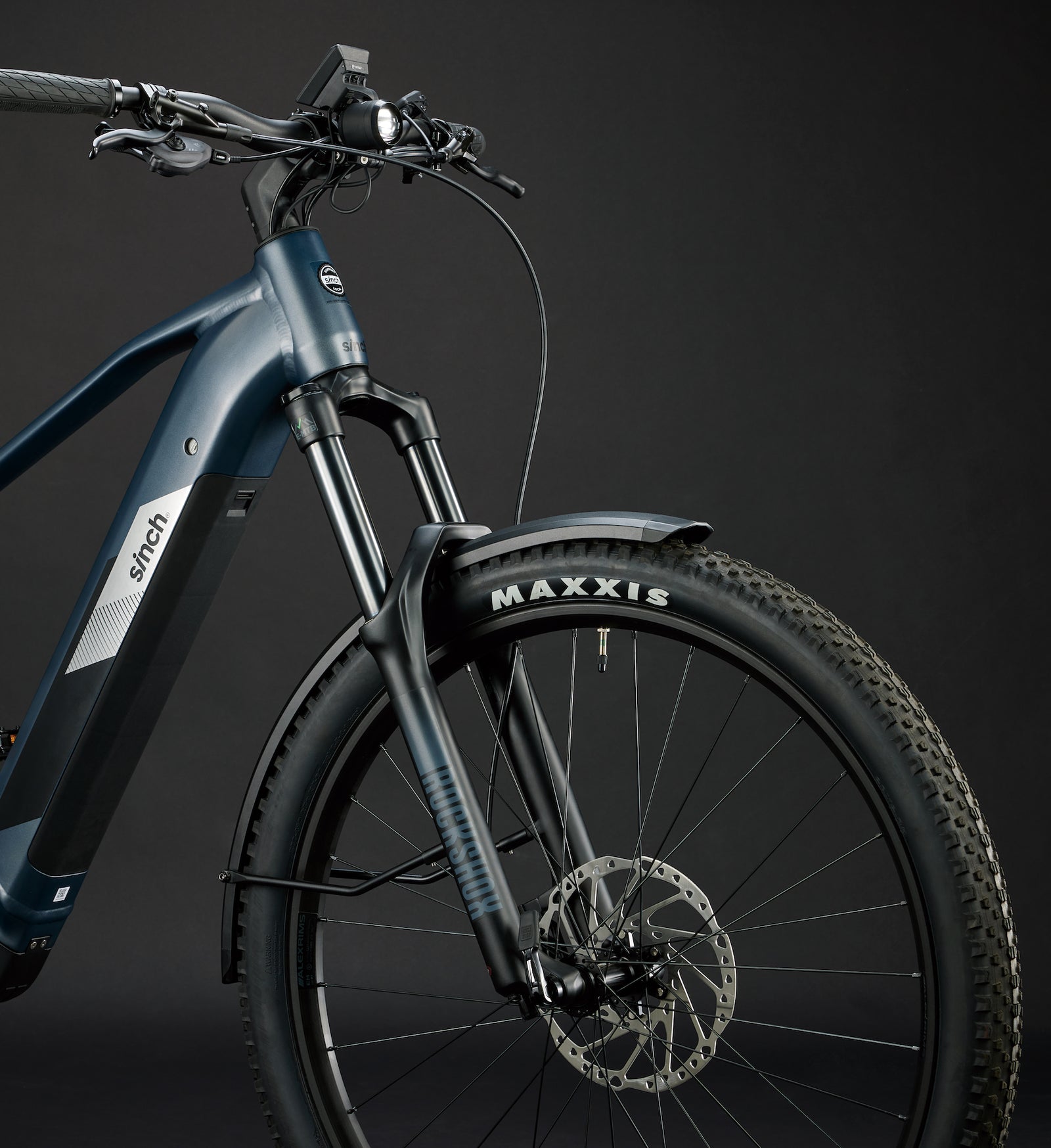

  Rock Shox 35 Silver TK Solo Air 110 x 15mm boost thru axle, 160mm travel with rebound adjust and lockout, full fender compatible

• Rear Suspension

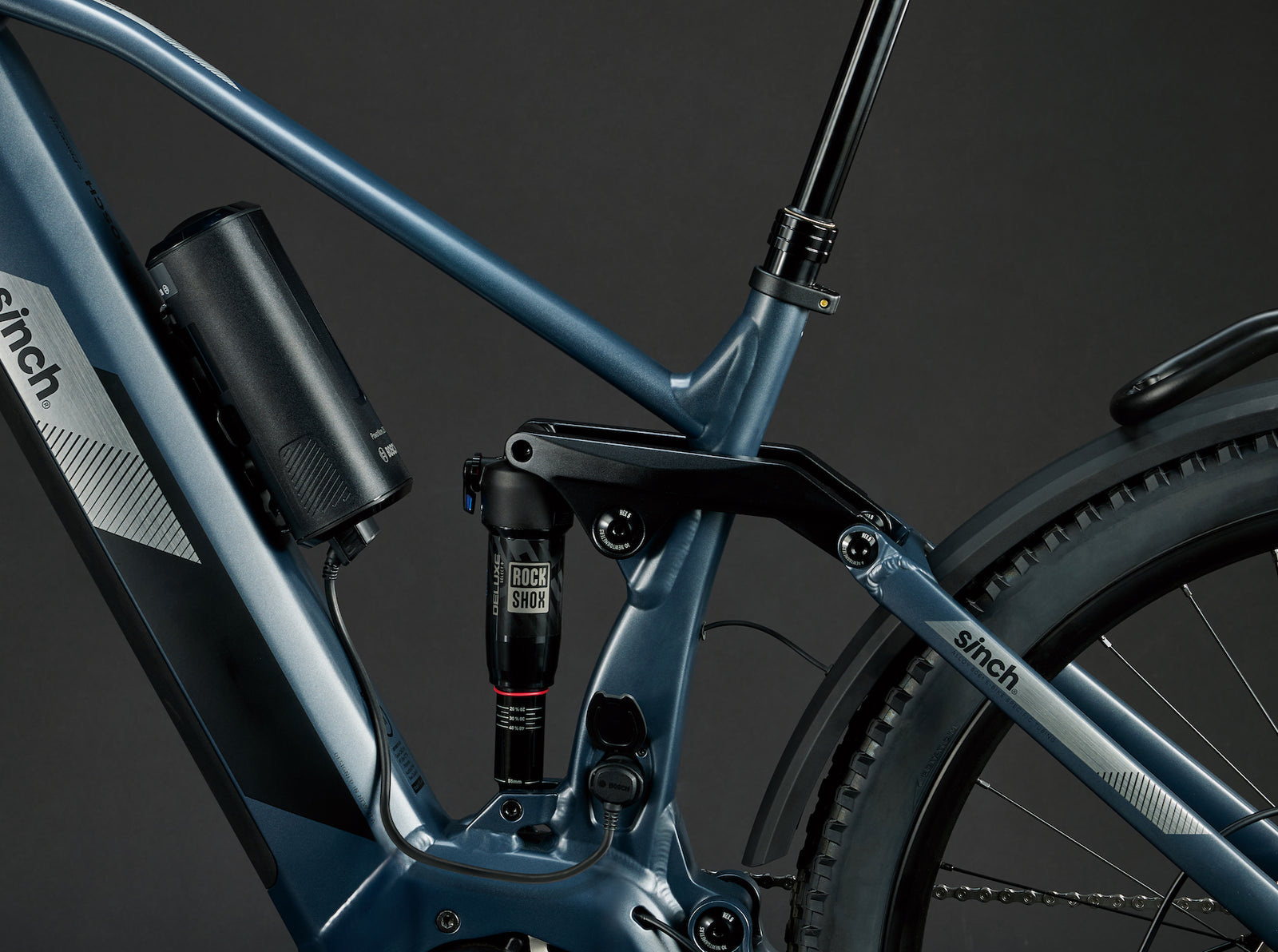

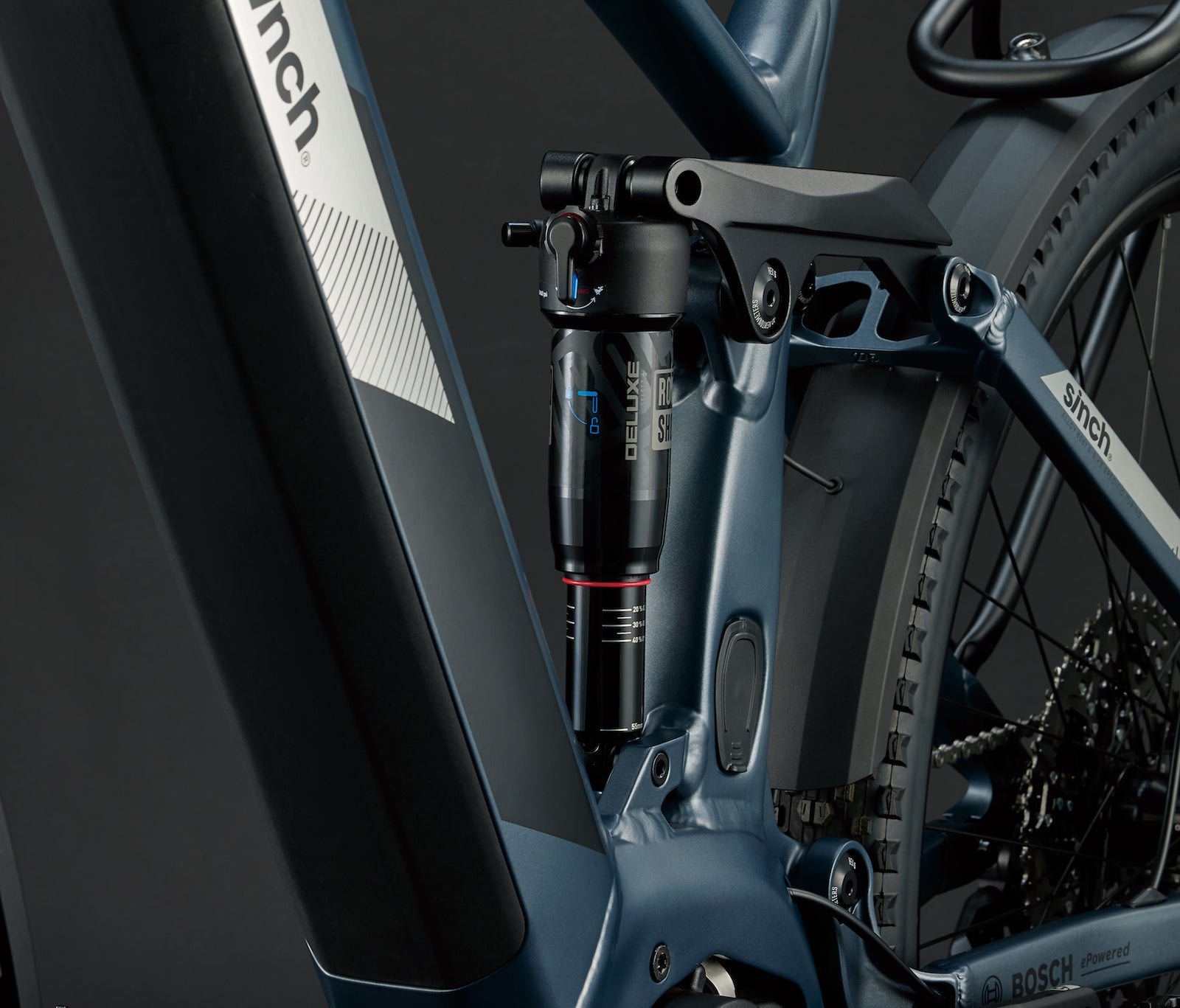

  Rock Shox Deluxe Select+RL custom tuned with rebound adjust and lockout

Motor

• Drive Unit

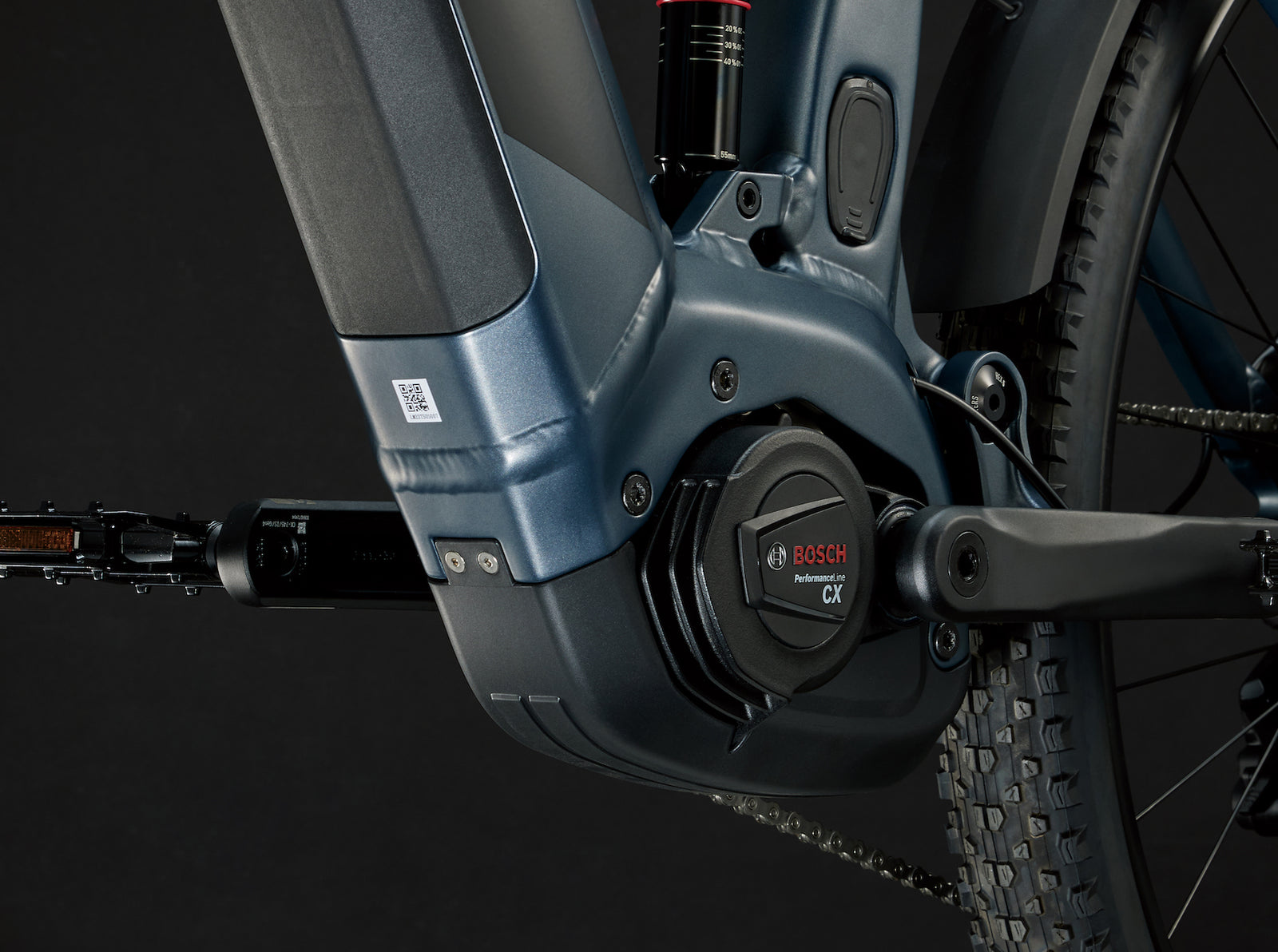

  Bosch Performance Line CX Gen 4 250watt 85Nm, 32km/hr with walk assist mode

• Battery

  Bosch PowerTube, 36V 16.7Ah 625Wh

• Display

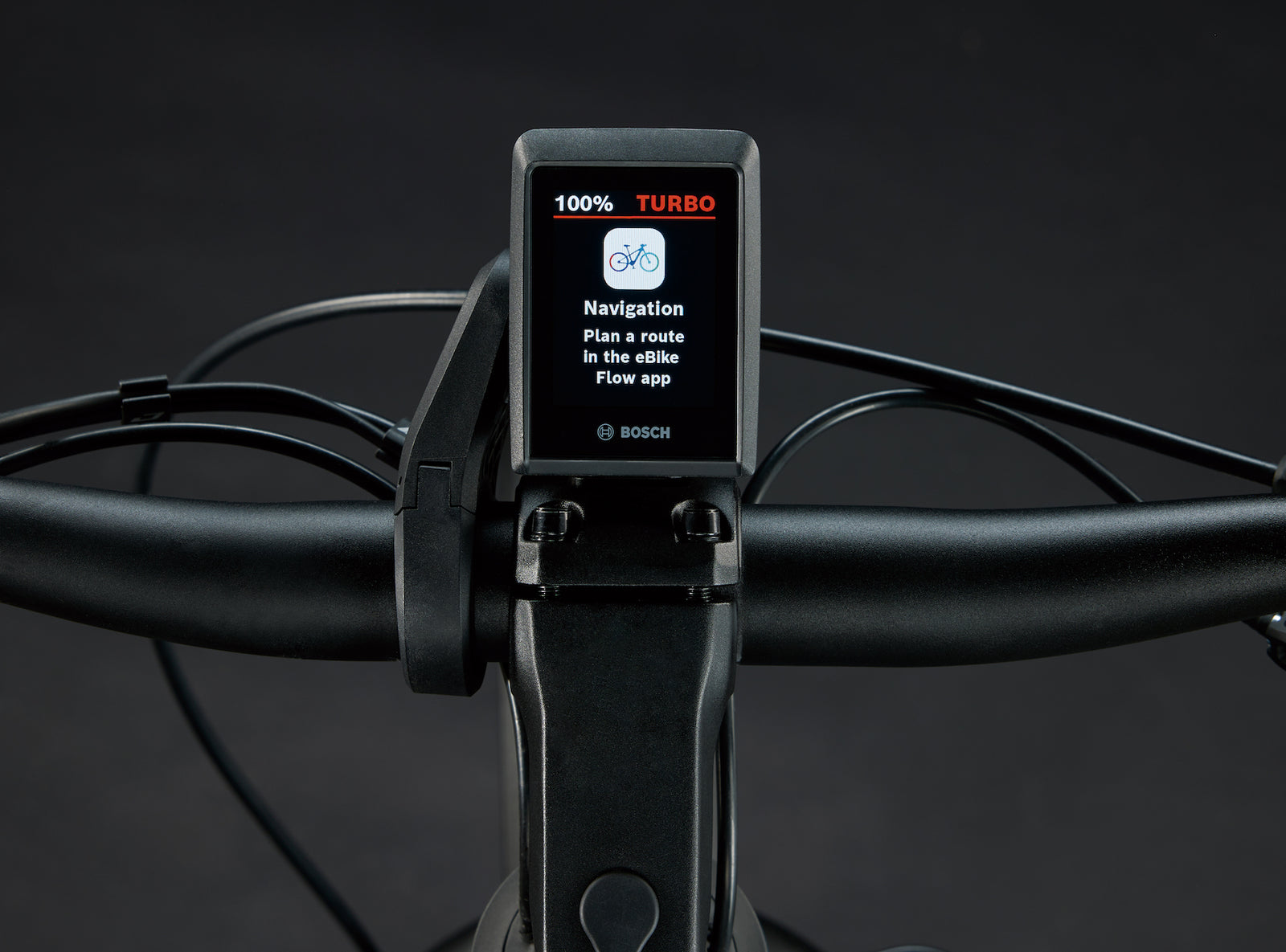

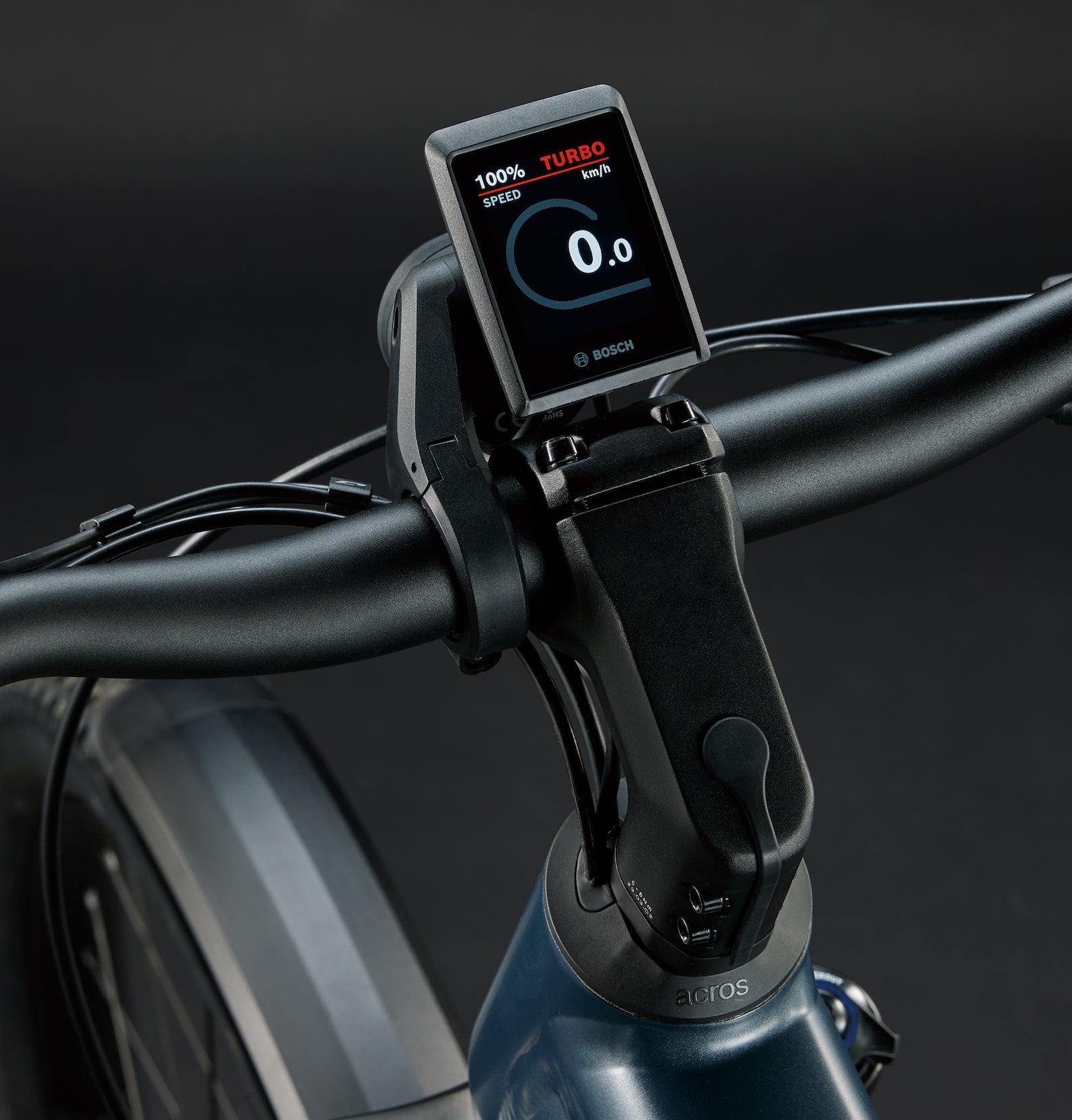

  Bosch Kiox 300

• Controller Switch

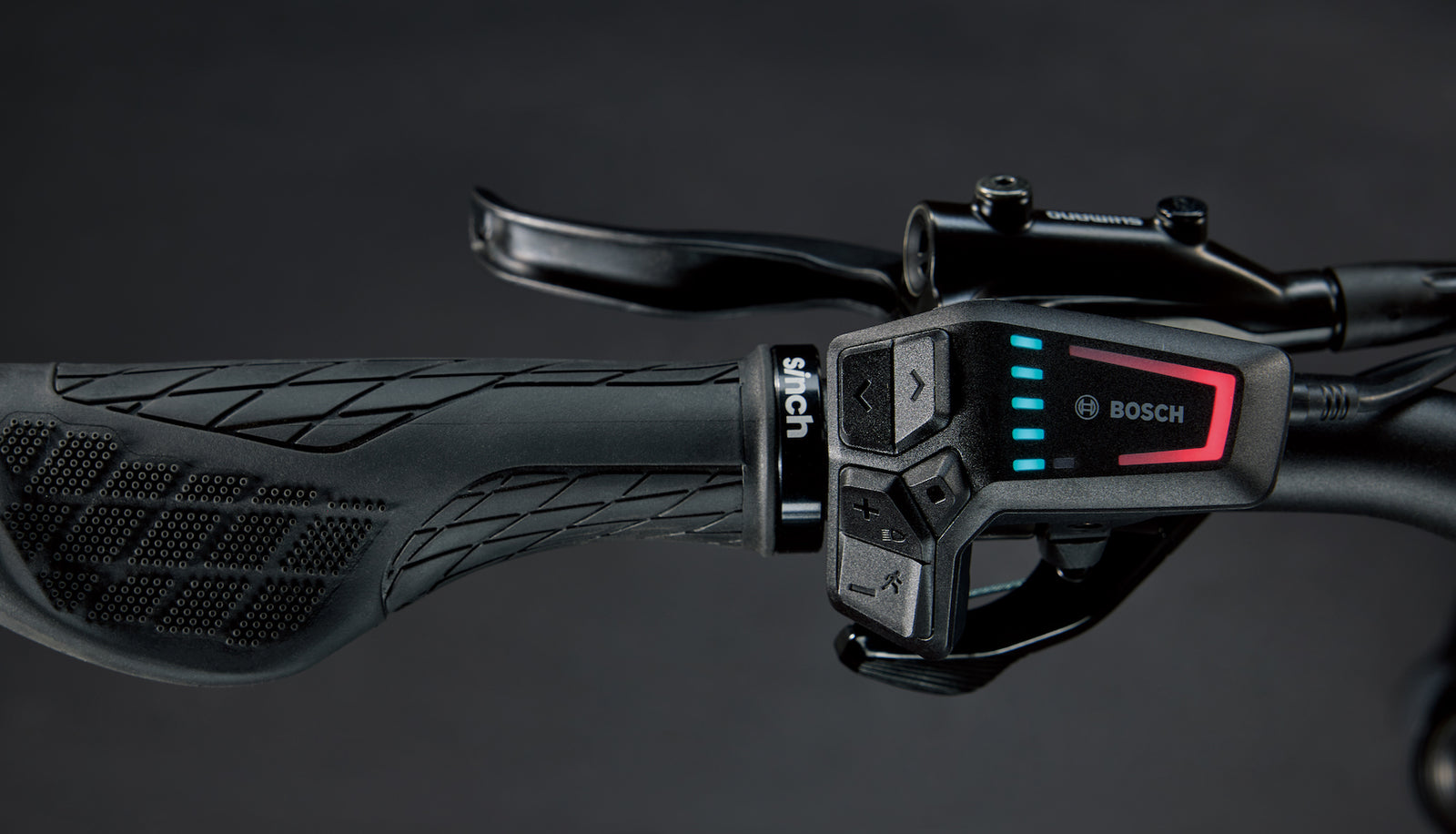

  Bosch LED remote

Wheels

• Hubs

  Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear

• Rims

  Alex EM30 Double Wall Front=29”, Rear=27.5” 32H F/V

• Tyres

  Maxxis Ikon 29x2.35” front, 27.5x2.35” rear Foldable, TR EXO puncture protection

Drivetrain

• Shifter

  Shimano Deore XT SL-M8130 11 Speed

• Derailleur

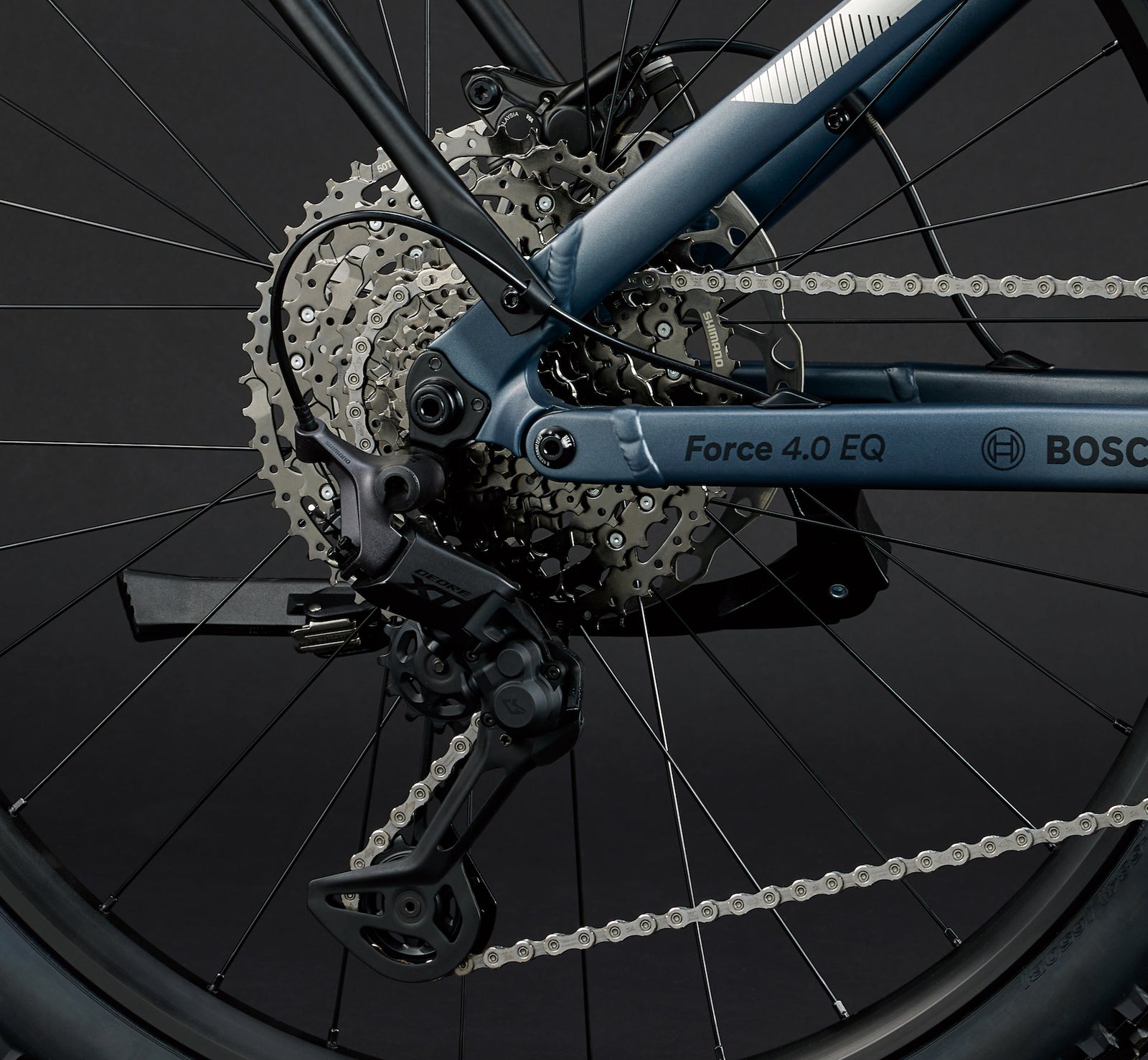

  Shimano Deore XT LinkGlide RD-M8130 SGS Shadow Plus 11 Speed

• Crankset

  FSA Alloy with 34T Chainring and Chain device

• Cassette

  Shimano Cassette LG400 LinkGlide 11-50T 11 Speed

• Chain

  Shimano CN-LG500 LinkGlide

• Pedals

  Sinch Alloy platform

Components

• Brakeset

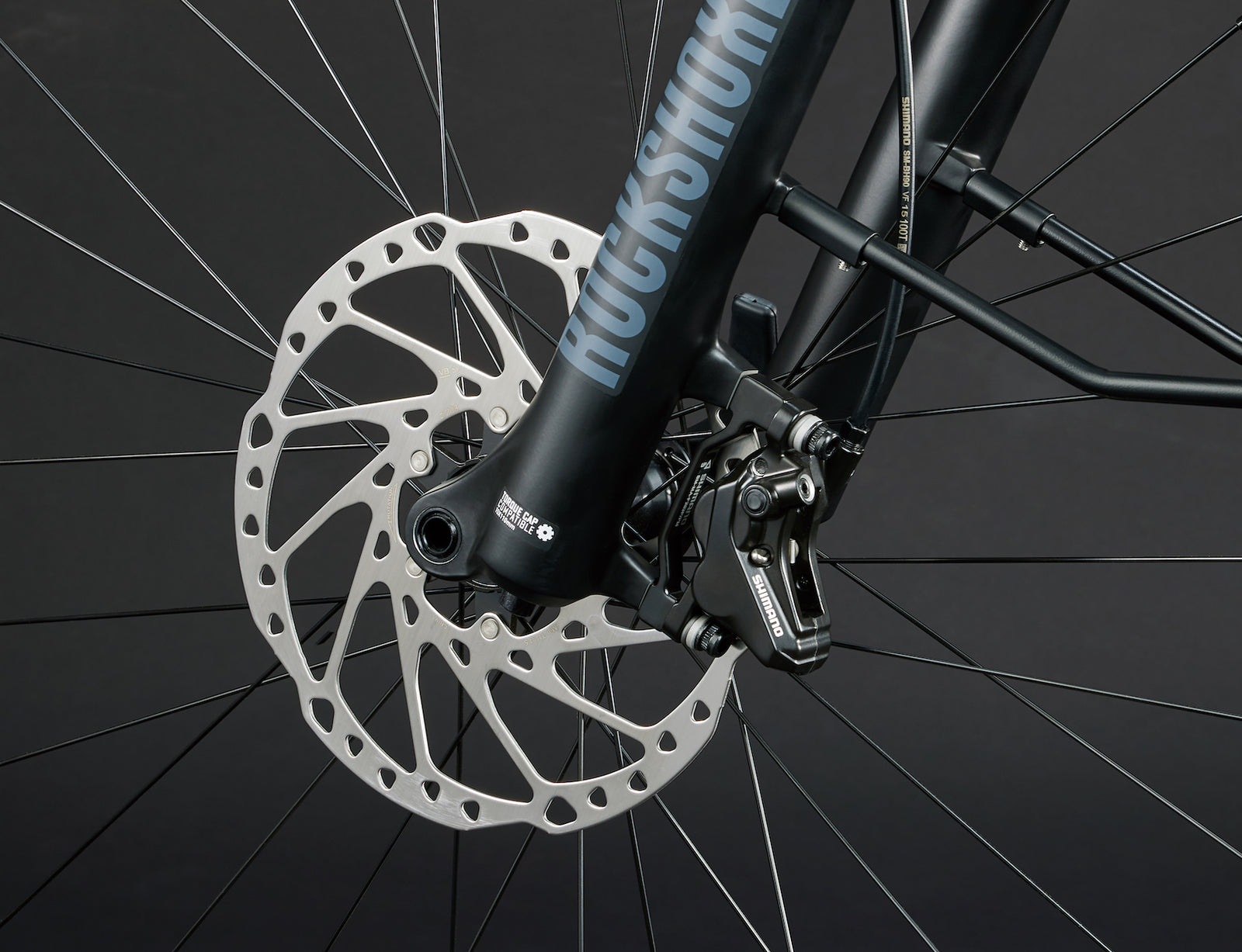

  Shimano MT420 4 Piston Hydraulic disc, 203mm rotors

• Saddle

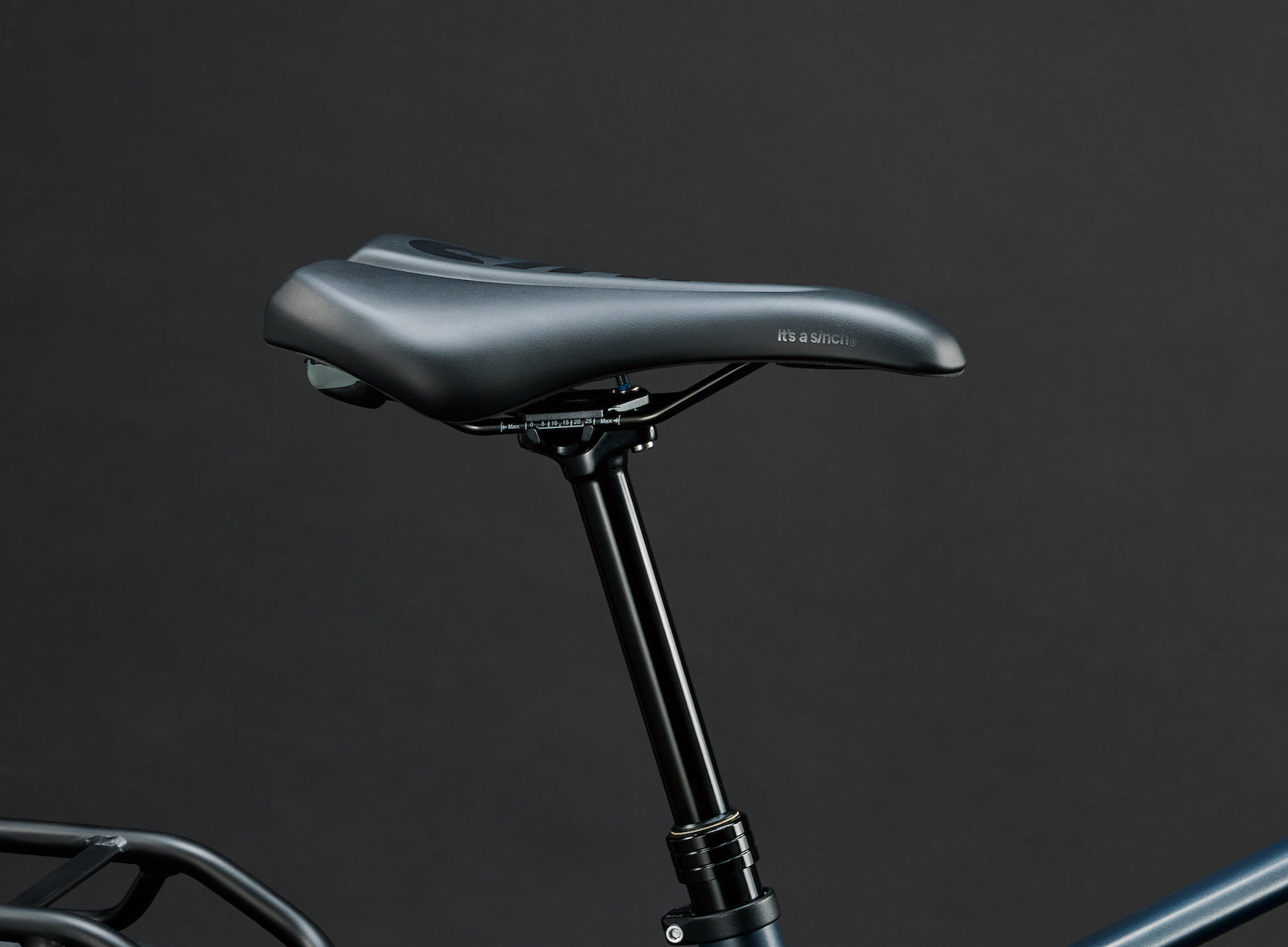

  Sinch Sport Comfort 177mm Gel

• Seat post

  Dropper, S=120, M,L=150, XL=175mm travel, Internal routing, 30.9mm

• Bar

  Sinch Alloy Comfort, 20mm rise, 15° sweep, 680mm

• Stem

  Fastback 20 31.8mm, 20-degree

• Headset

  Acros AZF-656 integrated

• Grips

  Sinch Comfort Gel Lock-on triple density

Accessories

• Lights

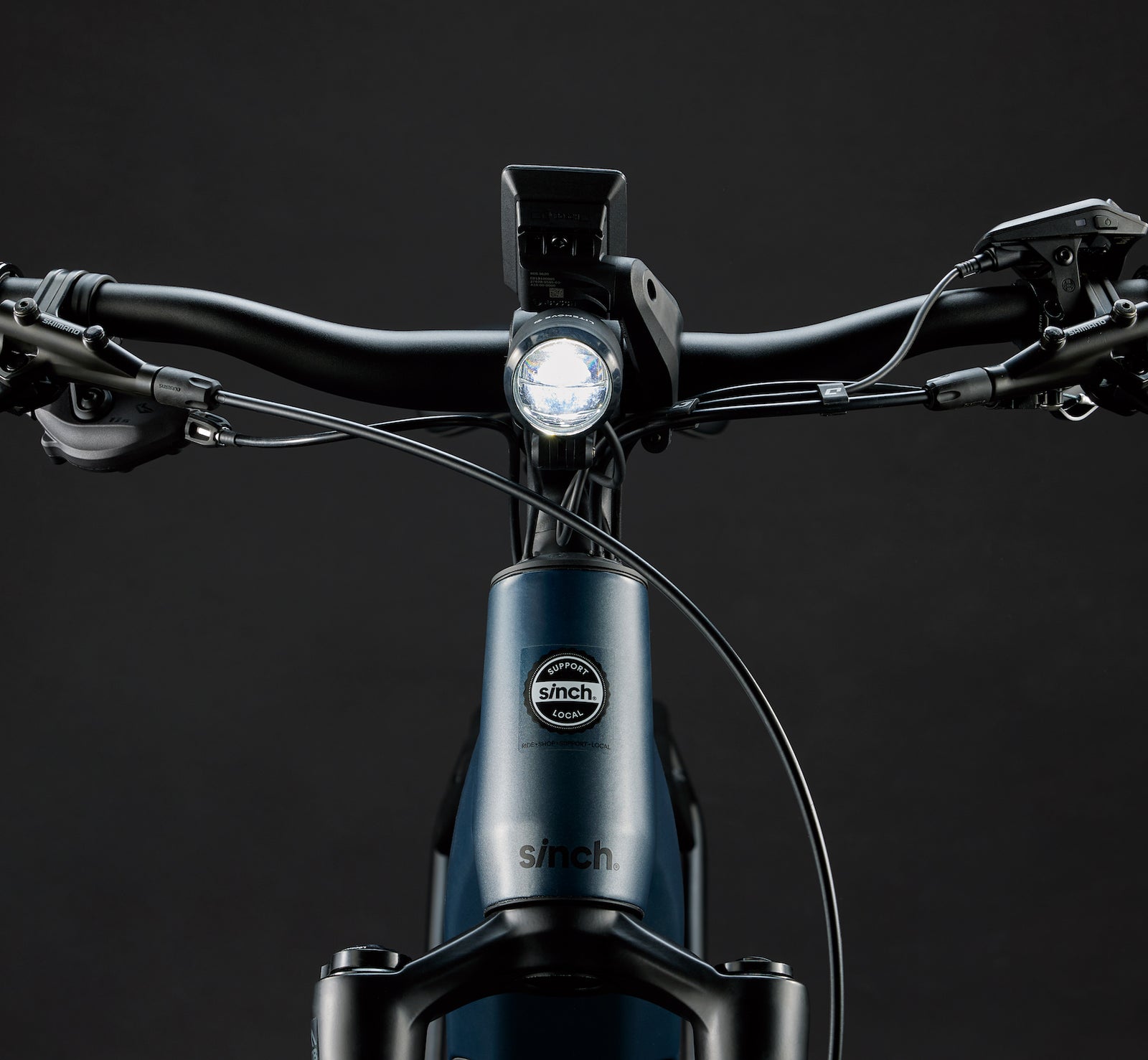

  Litemove SE-90 stem mounted Front, Pimento Large XEr Rear with Brake Sensor

• Accessories

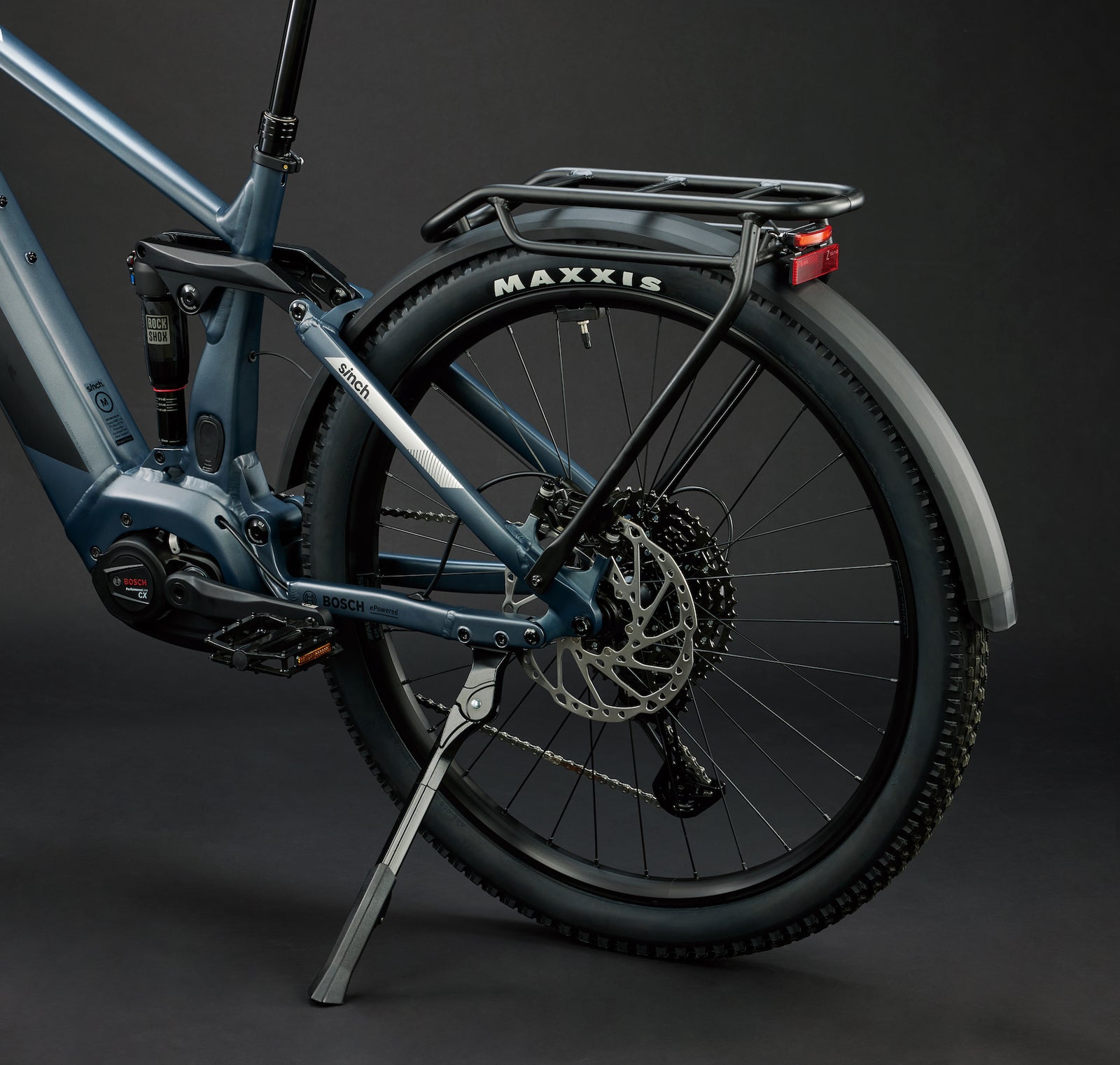

  Alloy Fenders, Rear Carrier 20kg load capacity, Kickstand, Range extender PowerMore 250 compatible, Sinch accessory case

• Sizes

  S,M,L,XL
