Description

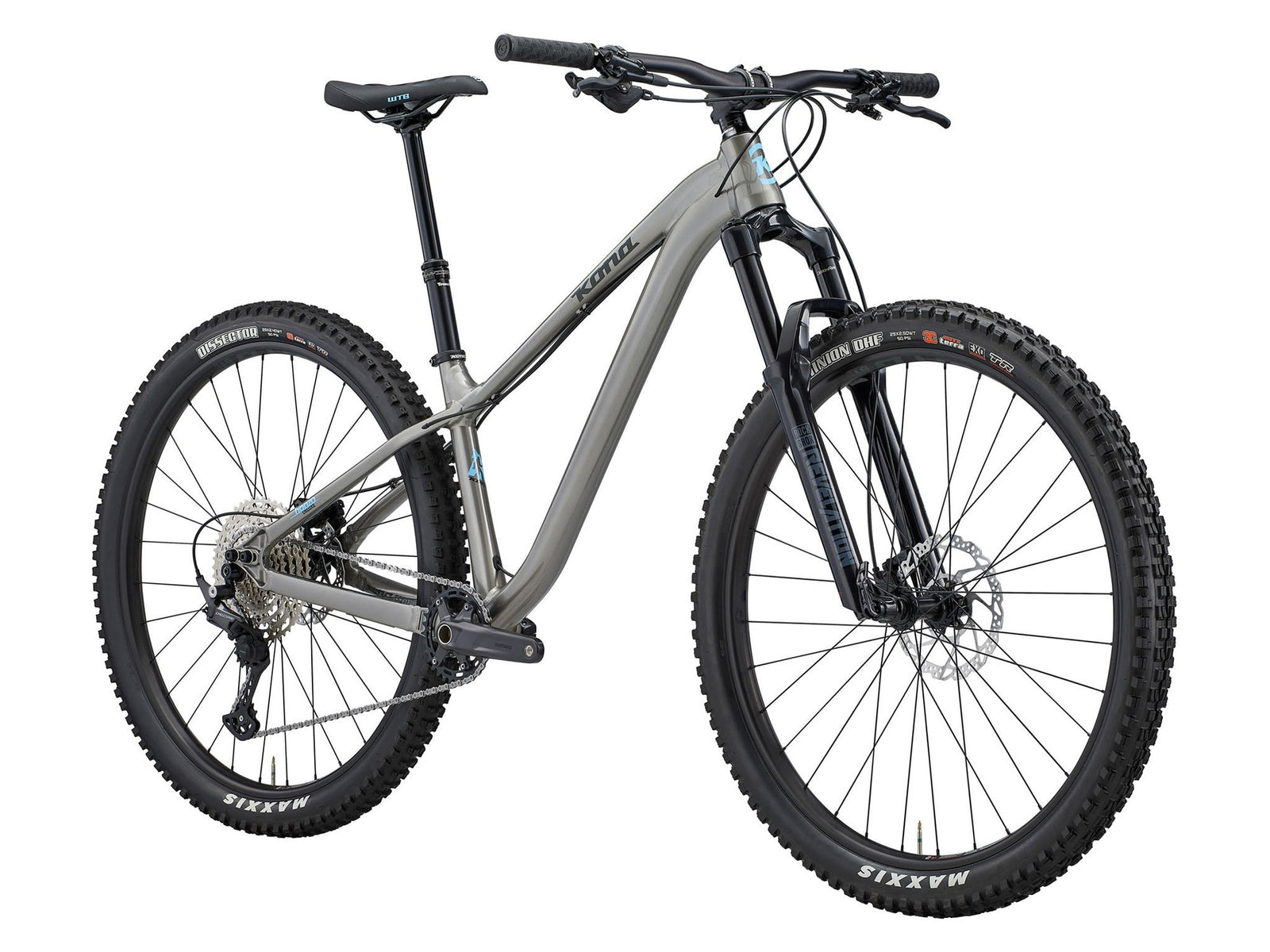

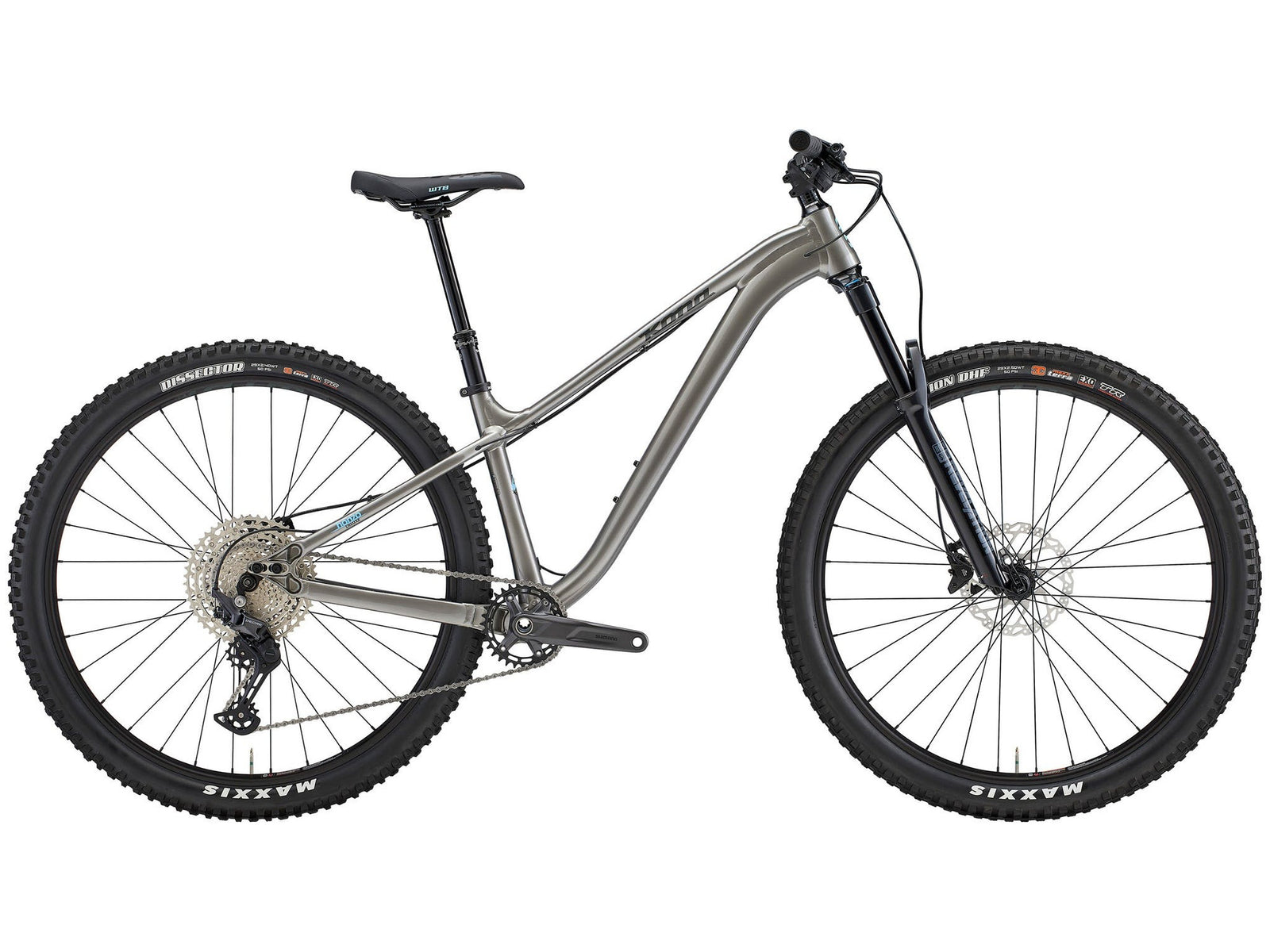

For the hardtail enthusiast, the Honzo DL is a quintessential bike to have in your quiver. Featuring an aluminum frame with geometry derived from the Process 134 it’s ready to rip up and down the trails. A short seat tube allows you to run a longer dropper post, and adjustable dropouts allow you to run the bike geared or as a single speed. Sitting squarely between the Honzo and the Honzo ESD – the Honzo DL is the all-round hardtail for any location.

SPECIFICATIONS

FRAME MATERIAL

Kona 6061 Aluminum Butted

SIZES

S, M, L, XL

REAR SHOCK

n/a

FORK

RockShox Revelation RC DebonAir 140mm Tapered 110mm Spacing

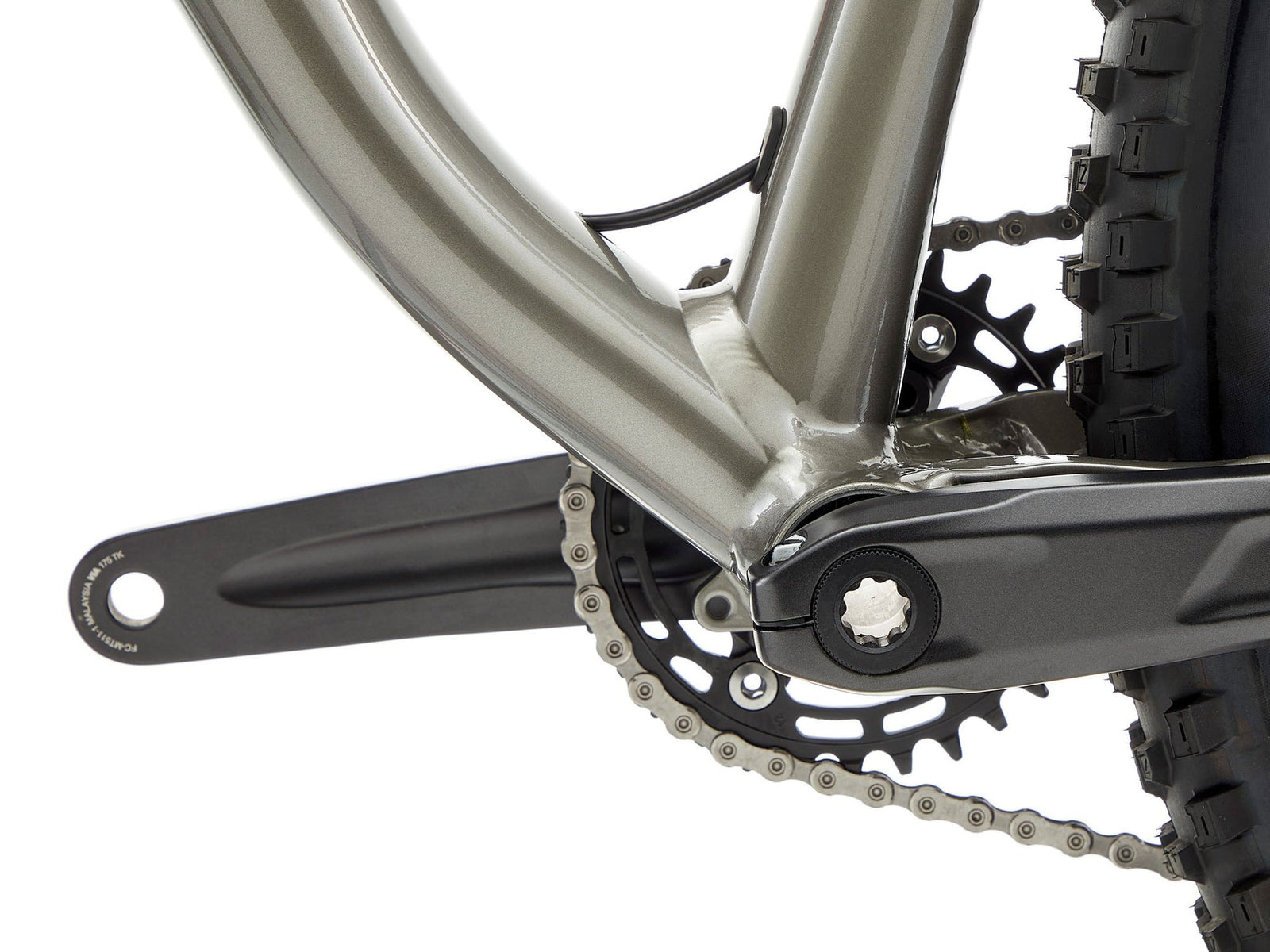

CRANKARMS

Shimano Deore 12 spd

CHAINRINGS

32t

B/B

Shimano PF92

PEDALS

n/a

CHAIN

Shimano Deore 12 spd

CASSETTE

Shimano Deore 11-50t 12spd

CHAINGUIDE

n/a

F/D

n/a

R/D

Shimano Deore 12 spd

SHIFTERS

Shimano Deore 12 spd

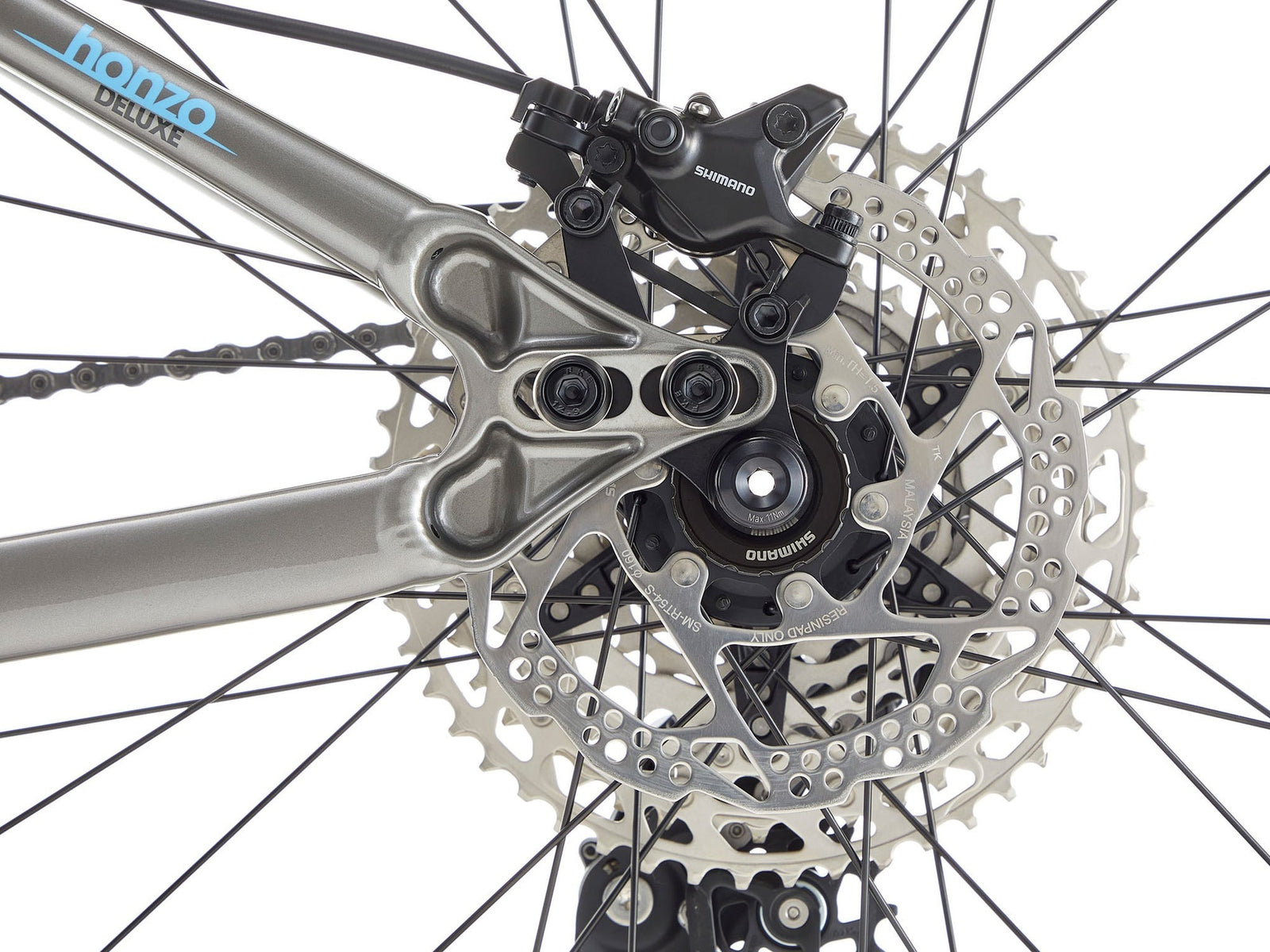

BRAKE CALIPERS

Shimano MT410 Hydraulic

FRONT BRAKE ROTOR

Shimano RT54 180mm (centerlock)

REAR BRAKE ROTOR

Shimano RT54 160mm (centerlock)

BRAKE LEVERS

Shimano MT410 Hydraulic

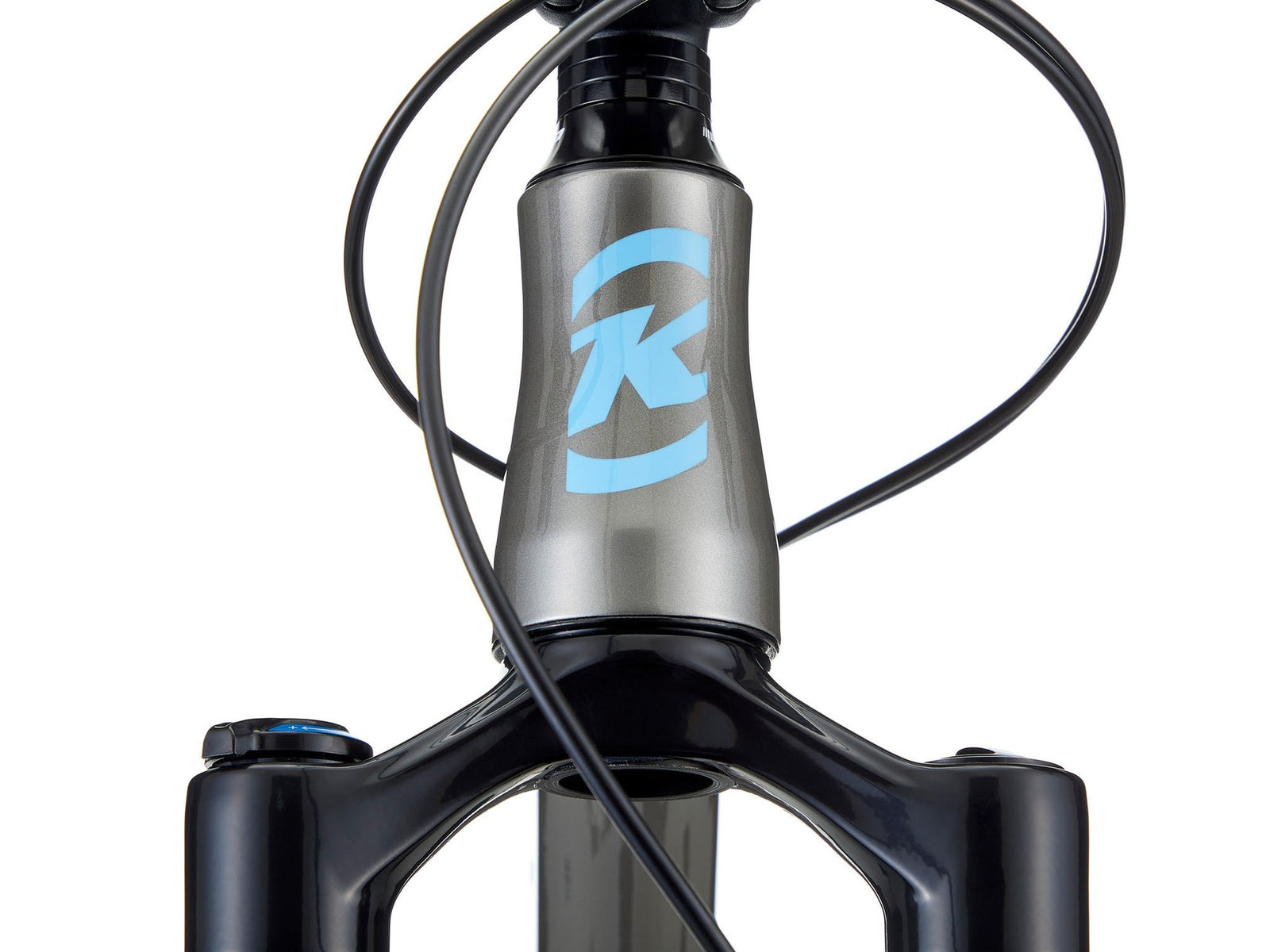

HEADSET

FSA No.57B

HANDLEBAR

Kona XC/BC 35

STEM

Kona XC/BC 35

SEATPOST

TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm

SEAT CLAMP

Kona Clamp

GRIPS

Kona Key Grip

SADDLE

WTB Volt

FRONT HUB

Shimano 110x15mm (centerlock)

REAR HUB

Shimano 148x12mm (centerlock)

SPOKES

Stainless Black 14g

RIMS

WTB ST i30 TCS

FRONT TIRE

Maxxis Minion DHF EXO TR 3C 29x2.5" WT

REAR TIRE

Maxxis Dissector EXO TR 3C 29x2.4" WT

PAINT COLOR

Gloss Metallic Grey w/ Charcoal & Cyan Decals

EXTRAS

n/a

All specifications are subject to change without notice
