Description

The all-new Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the new Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM GX/NX drivetrain, trail-taming Fox suspension, and a lightweight, durable alloy wheelset, the all-new Turbo Levo delivers more of everything that you love about trail riding.

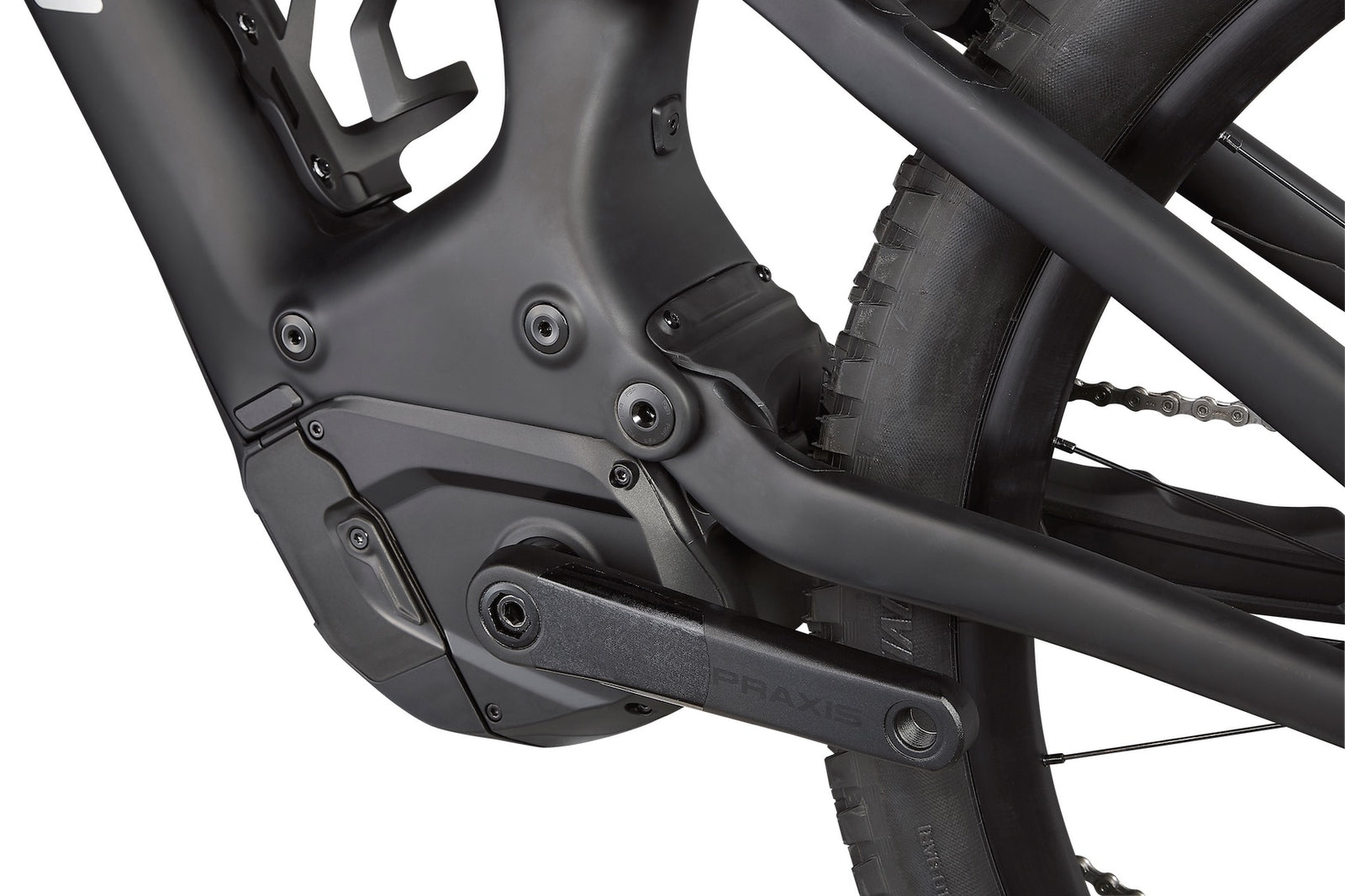

• Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and advanced MasterMind Turbo Control Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

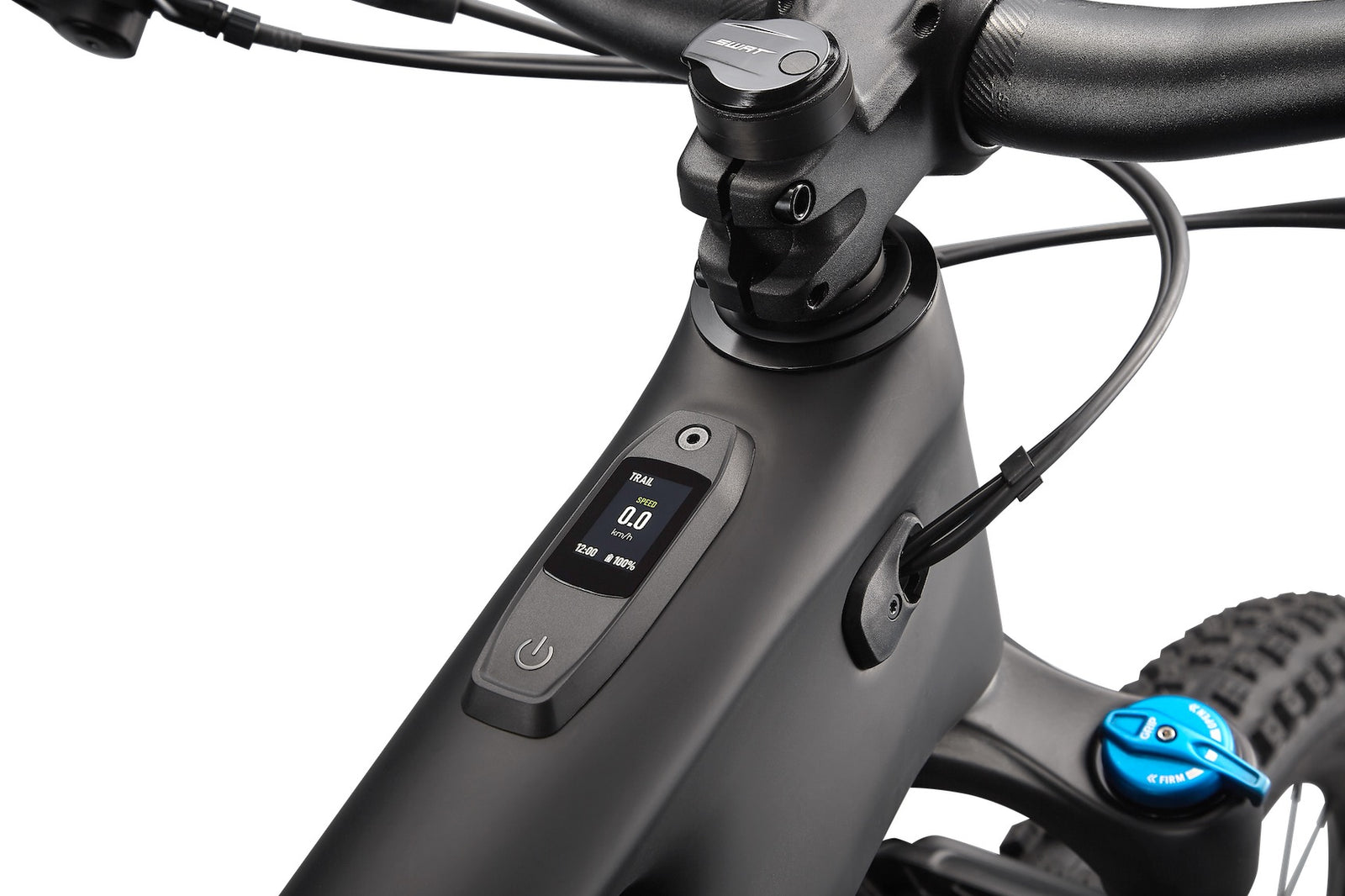

• The MasterMind Turbo Control Unit is your information hub with customizable display fields, including the exact percentage of battery level, and it features our all-new MicroTune function to adjust power delivery in 10% increments, so you get exactly the support you need to experience precisely the ride you want.
• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
• Levo offers six distinct geometry settings, allowing you to easily dial-in its performance for any riding style andany terrain. Head tube angle can be adjusted between 63- and 65.5-degrees. Bottom bracket height can be fine-tuned up or down by 7mm.

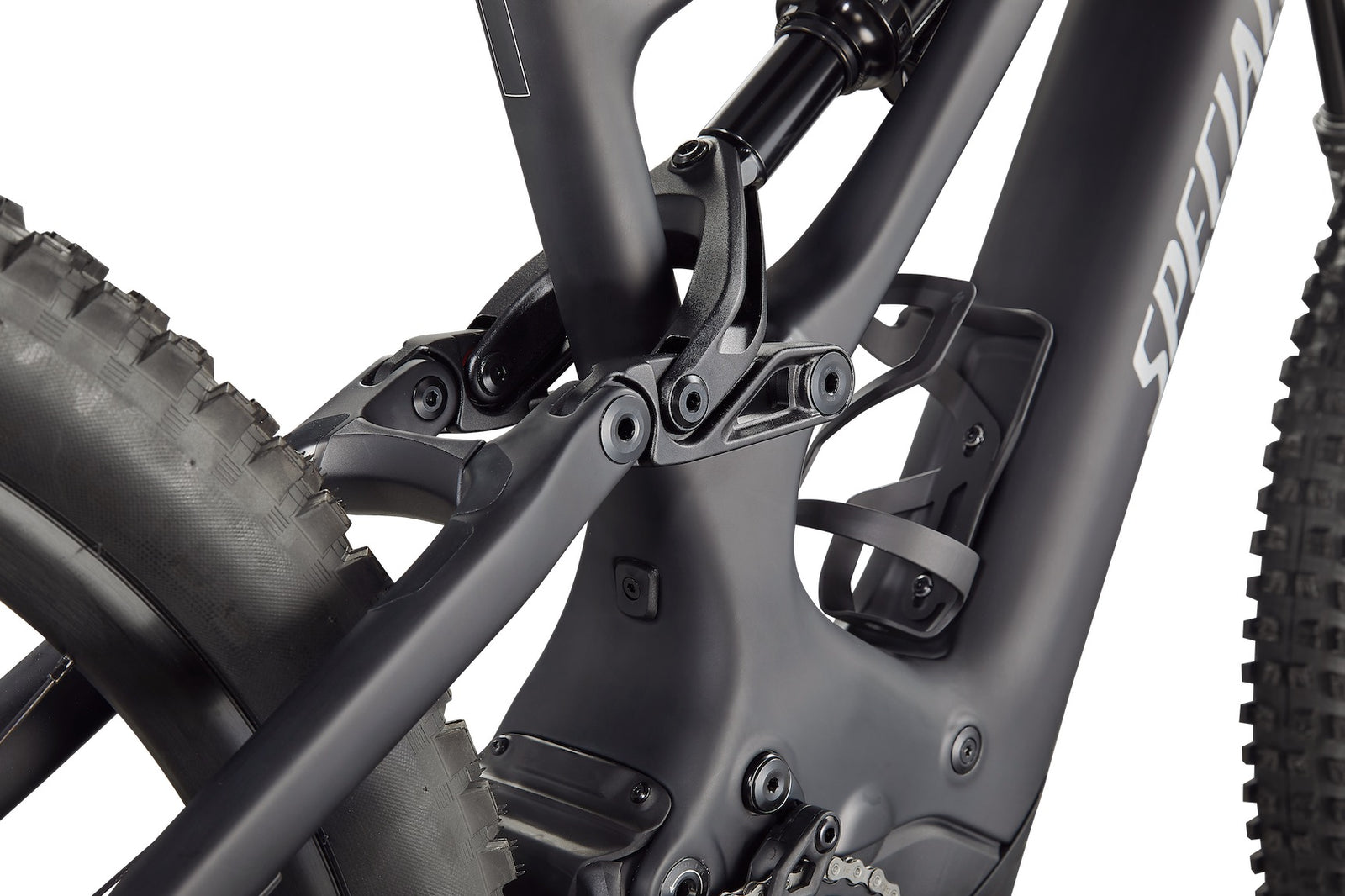

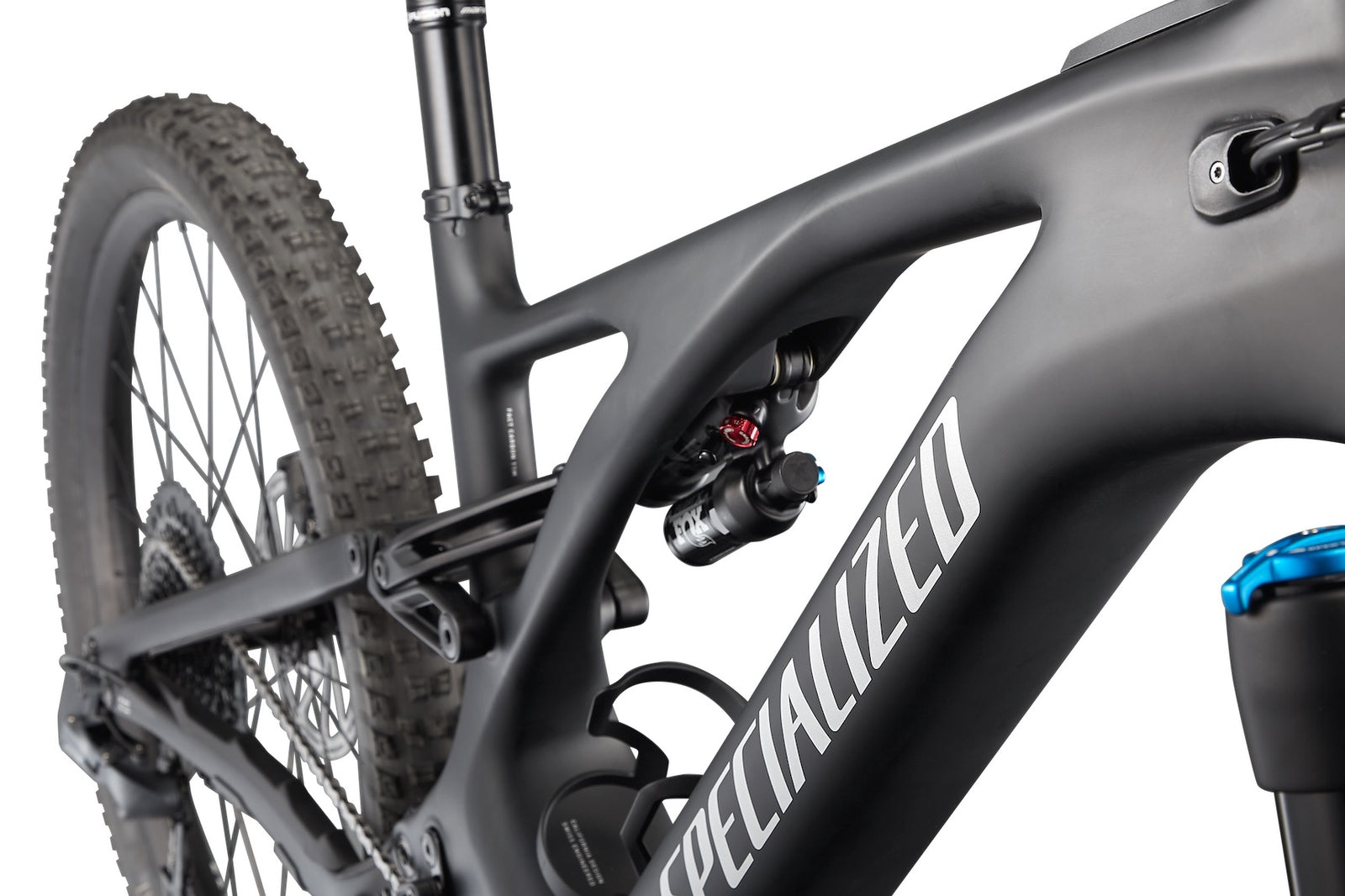

• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

FRAMESET

Seat Binder

Alloy, 38.6mm

Frame

FACT 11m full carbon, 29" front wheel, 27.5" rear wheel, full internal cable routing, 148mm spacing, fully sealed cartridge bearings, 150mm of travel, geo adjust head tube, geo adjust horst pivot

FRAMESET

Fork

Fox 36 Rhythm, 29", 44mm offset, Grip damper, S1: 150mm, S2-S6: 160mm travel

ACCESSORIES

Pedals

PEDAL, TEST RIDE PEDALS PROVIDED BY SPECIALIZED

SWAT

SWAT CC steerer tube integrated tool with chain tool and link

SUSPENSION

Rear Shock

FOX FLOAT X Performance, LSR, 2-position lever, 55x210mm

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Tape

Specialized Trail Grips

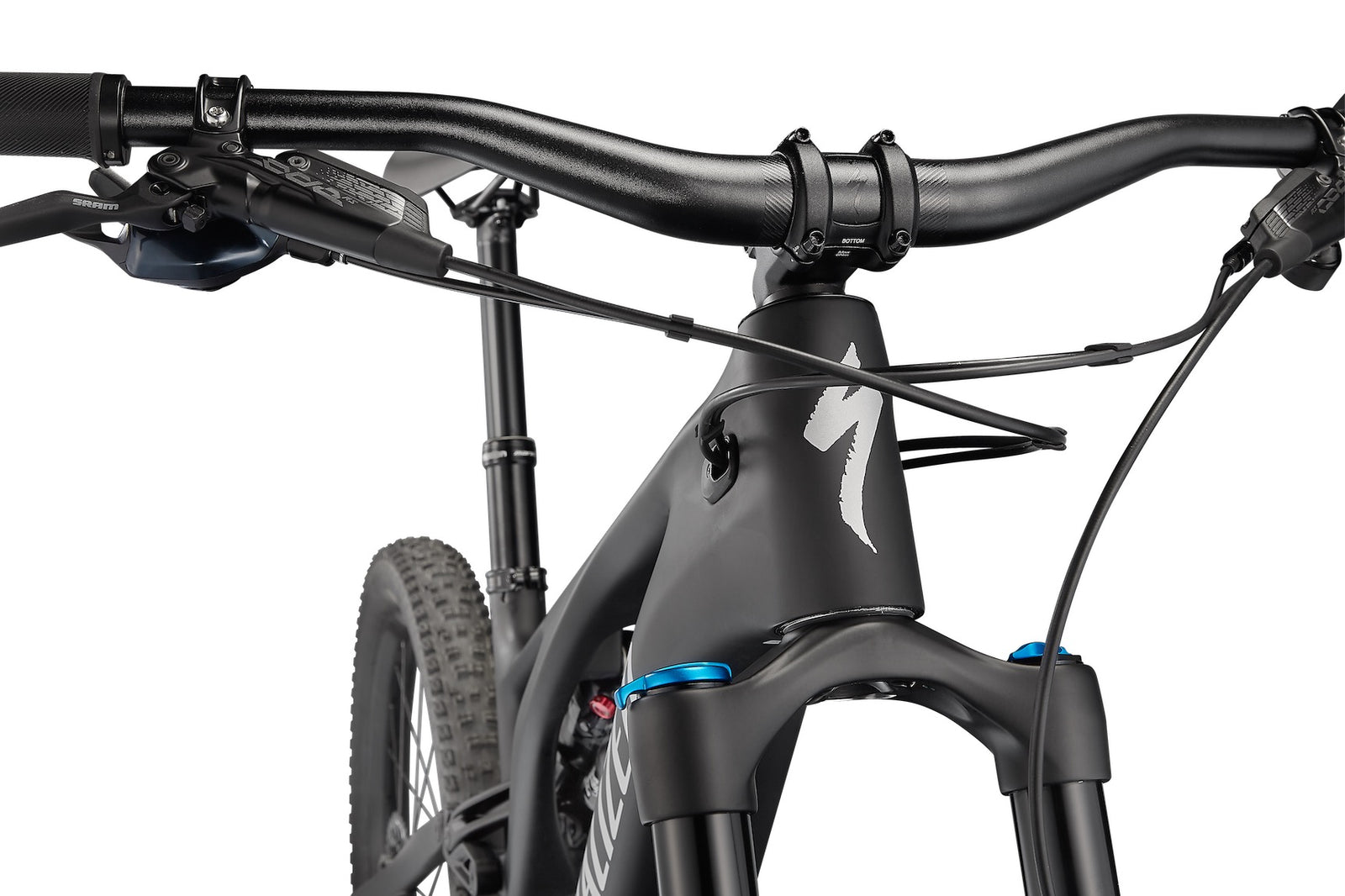

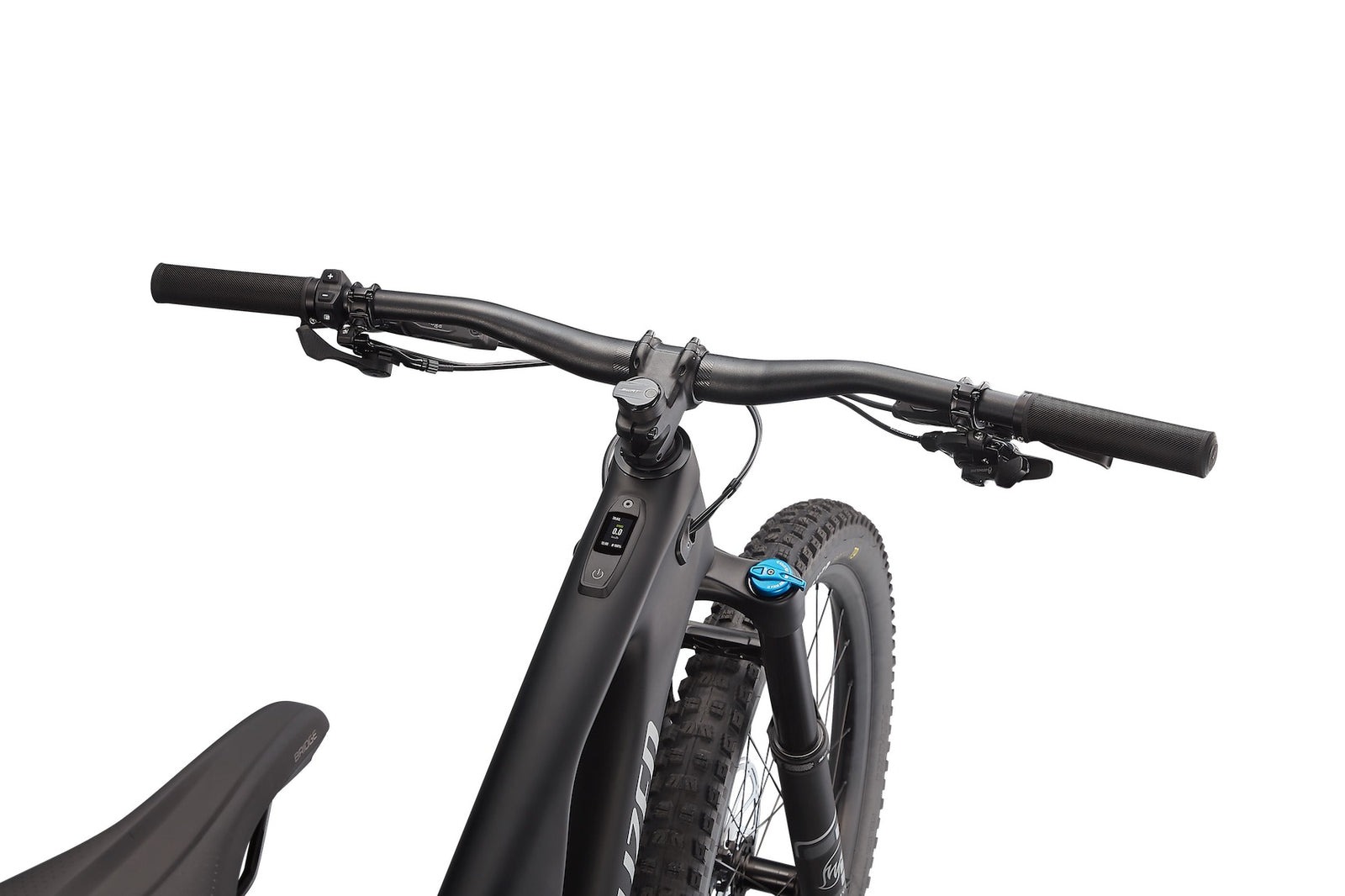

Handlebars

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm

BRAKES

Rear Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm

Front Brake

SRAM Code RS, 4-piston caliper, hydraulic disc, S/M: 200mm, L/XL: 220mm

DRIVETRAIN

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Rear Derailleur

SRAM GX Eagle, 12-speed

Shift Levers

SRAM GX, trigger, 12-speed

Chain

SRAM NX Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34t, steel

Cassette

Sram XG-1275, 12-speed, 10-52t

WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h

Front Hub

Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Inner Tubes

Standard, Presta Valve

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Battery

Specialized M3-700, Integrated battery, 700Wh

E-BIKE

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

UI/Remote

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote

WEIGHT

Weight

22.8kg (50 lb, 4.2 oz)

Weight Size

S4
