Description

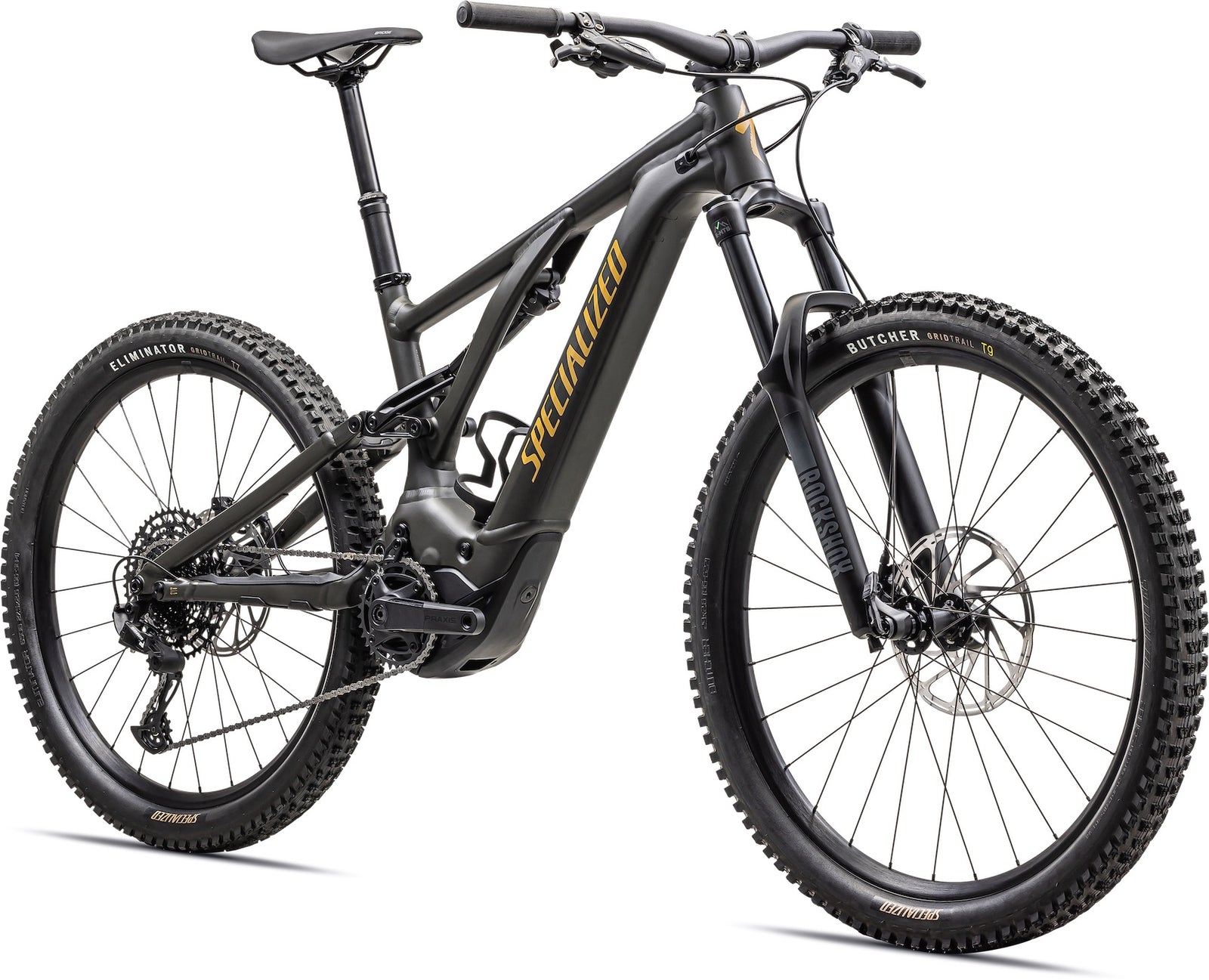

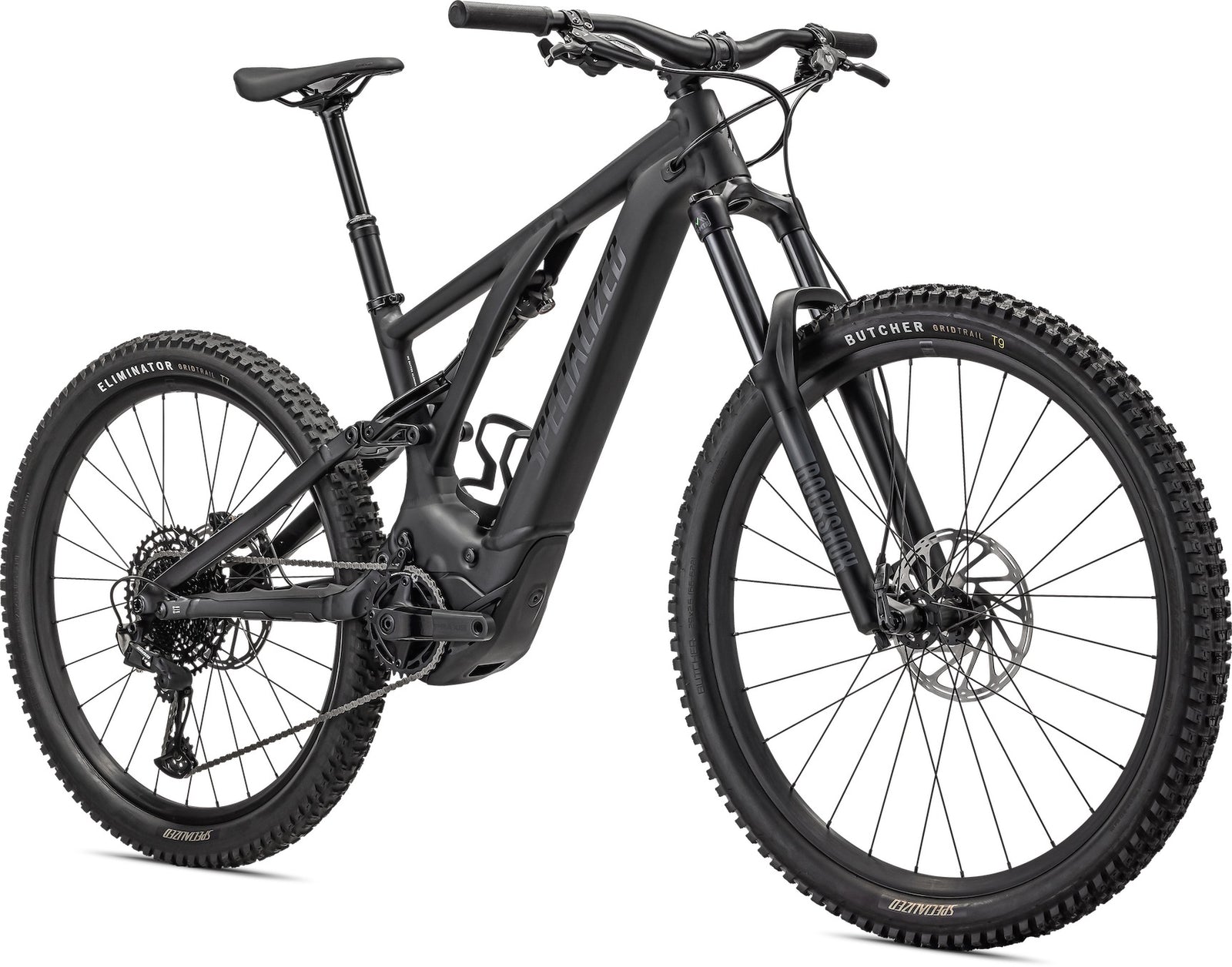

The Levo delivers the unbelievable power to ride more trails through an unequaled combination of ride quality, usable power, and ride-anywhere range. It’s the distillation, application, and amplification of a 40-year obsession with creating the world’s best riding mountain bikes. Since its introduction, Levo has set the bar every other e-MTB aims for, and the latest Levo raises that bar again.

It starts with our Turbo Full Power 2.2 motor and Master Mind Turbo Connect Unit (TCU), which provide Levo with a smooth and seamless amplification of your efforts—4x you power that lets you choose where to ride, and when you want to do it. Levo also shatters limitations when it comes to range, amplifying your effort for up to five hours of trail time. Now you can ride farther, and explore more, than ever before. And the optimized chassis boasts 150mm of custom-tuned rear suspension and adjustable geometry that delivers a stable and natural ride like no other. Because at the end of the day, it’s the ride that matters. Believe it.

More climbing, more descending, more miles, more fun. Spec’d with a no-fuss SRAM SX/NX drivetrain, trail-taming RockShox suspension, and a lightweight, durable alloy wheelset, the Turbo Levo delivers more of everything that you love about trail riding.

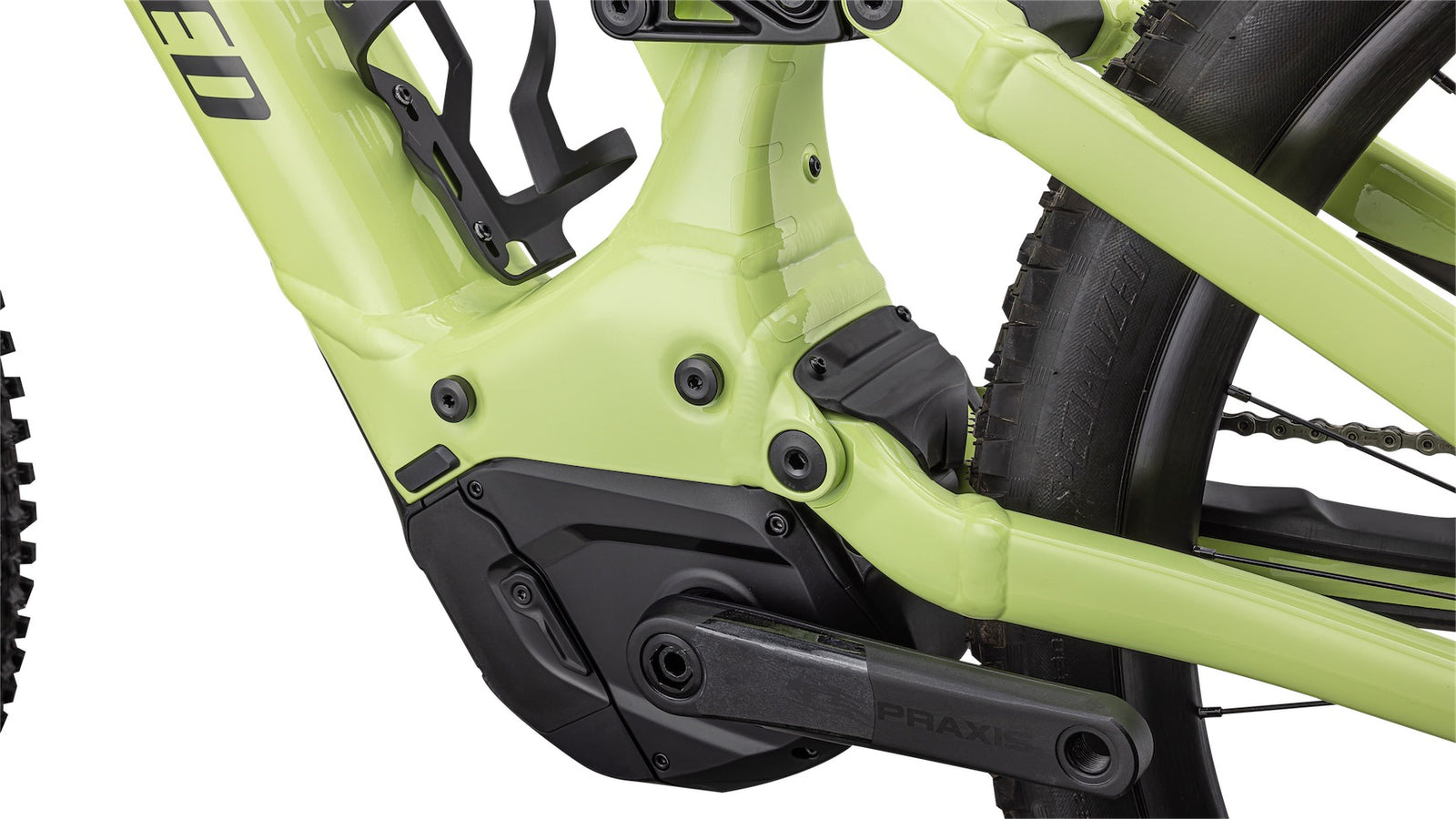

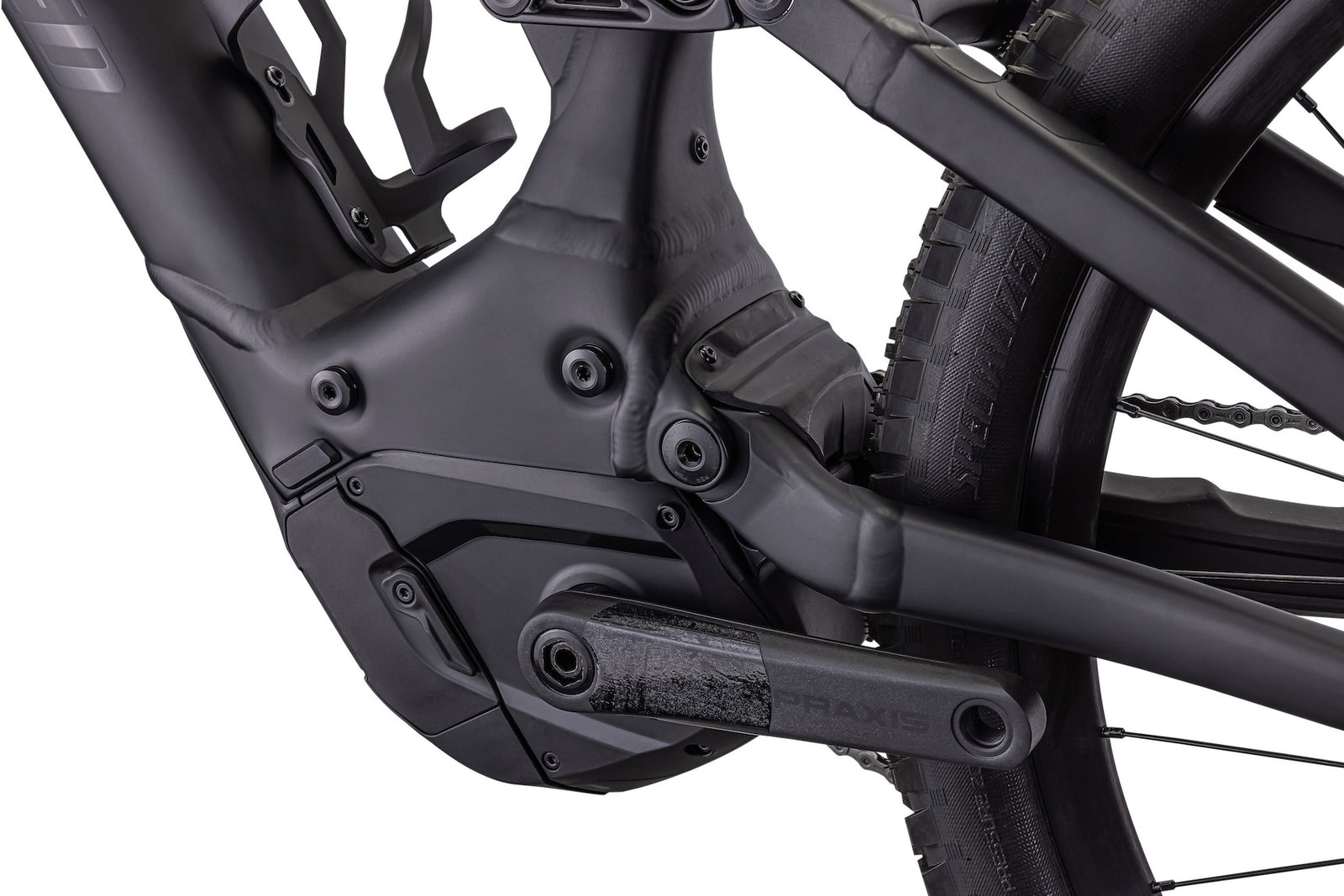

• Levo’s fully integrated Turbo Full Power 2.2 motor, 700Wh battery, and Turbo Connect Unit deliver category-leading 90 Nm of torque and 565 watts of power for up to five hours of ride time, empowering you to ride farther and faster than ever before.

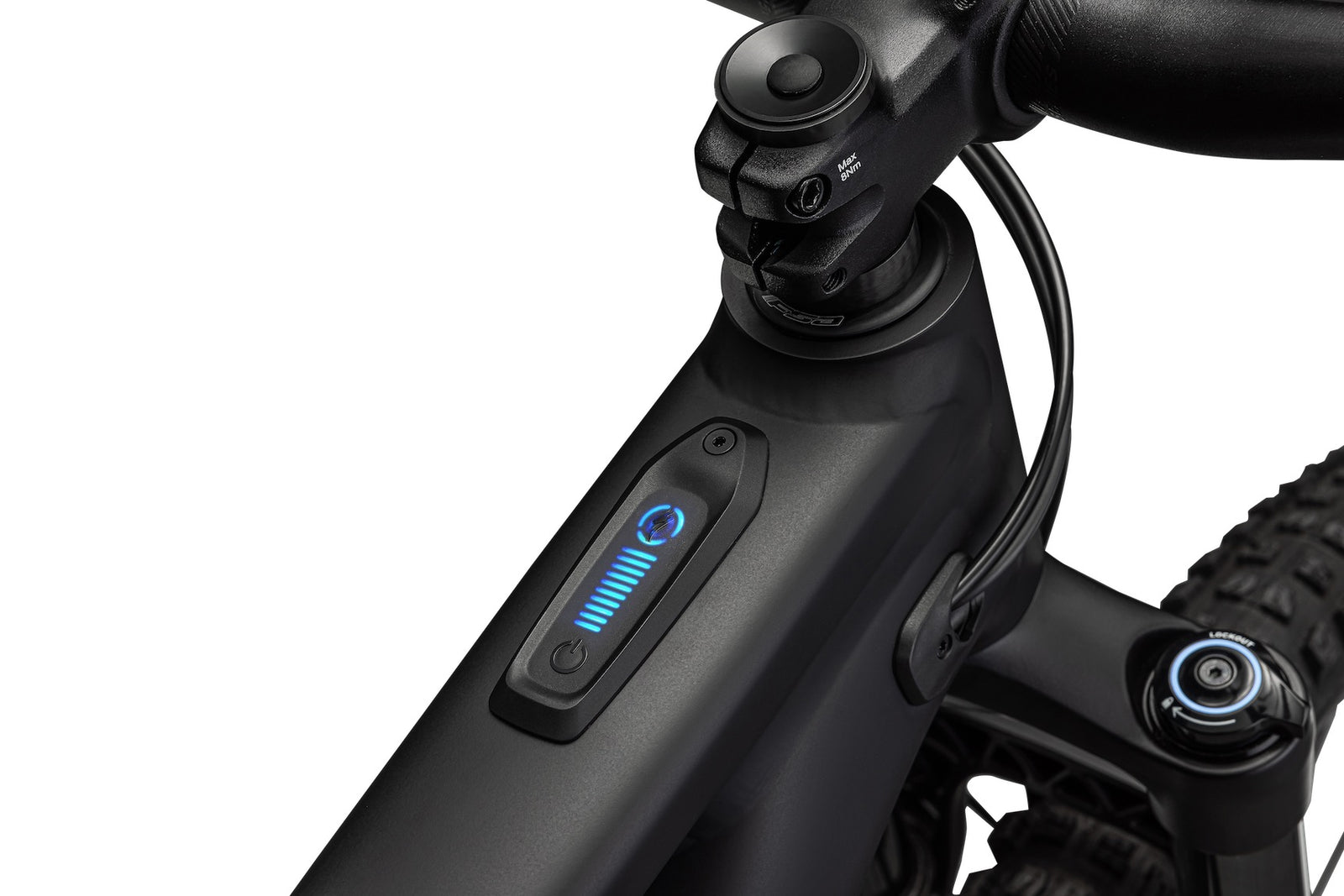

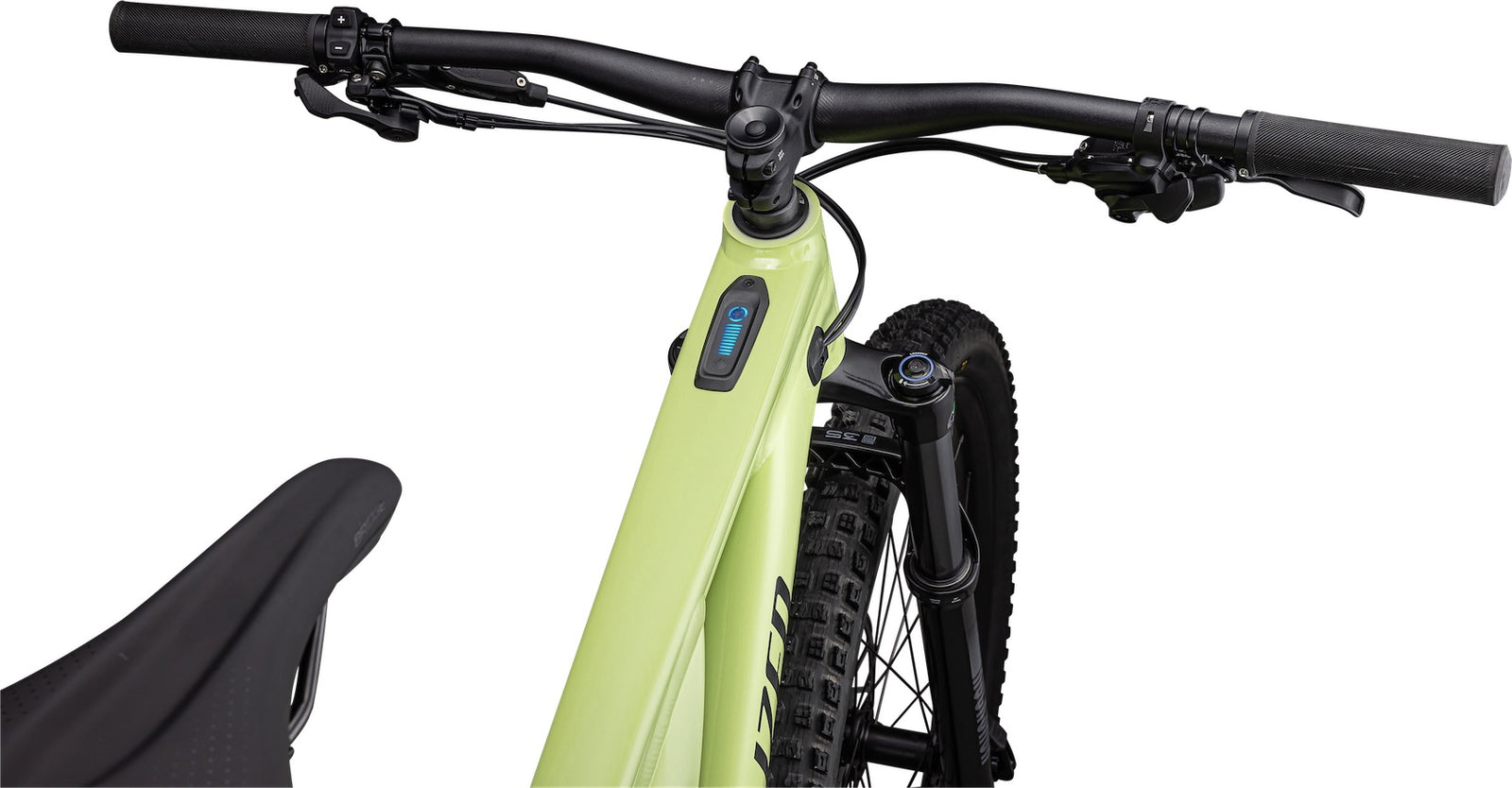

• The Levo’s Turbo Connect Unit (or “TCU”) is more than an “On-Off” button—it’s the brains of the bike. The TCU shows your battery level and power-assist mode. It also communicates, via ANT+/Bluetooth®, with our optional handlebar display to display even more information about your day’s ride.

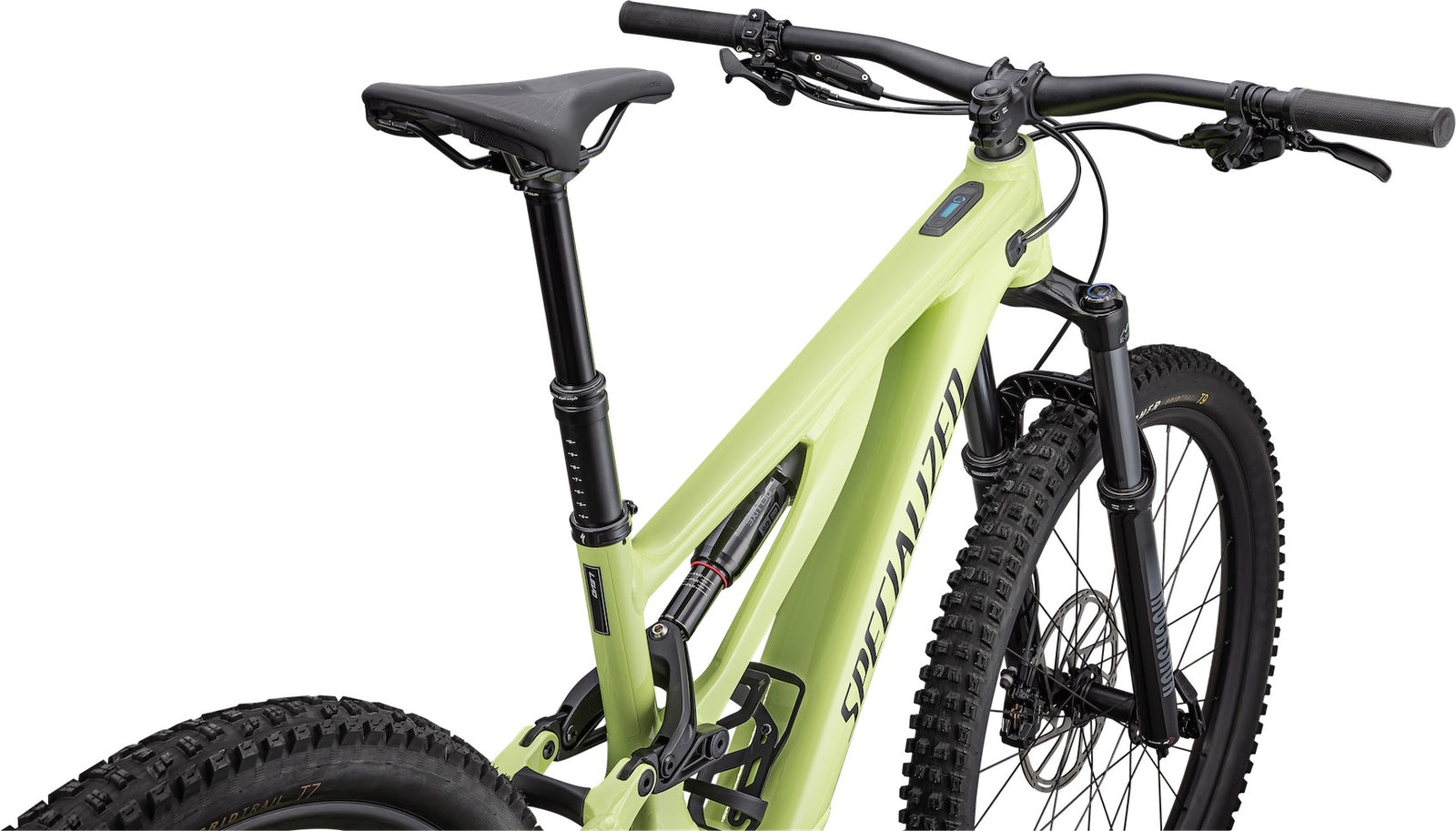

• A dedicated mixed-wheel size design with a 27.5” wheel in the back and 29” up front delivers a nimble ride that carves circles around other full-power e-MTBs. A generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack headtube angle and reduced fork offset keep things stable in the rough.
• Levo offers two distinct geometry settings, allowing you to easily dial-in its performance for any riding style and any terrain. Bottom bracket height can be fine-tuned up or down by 7mm.

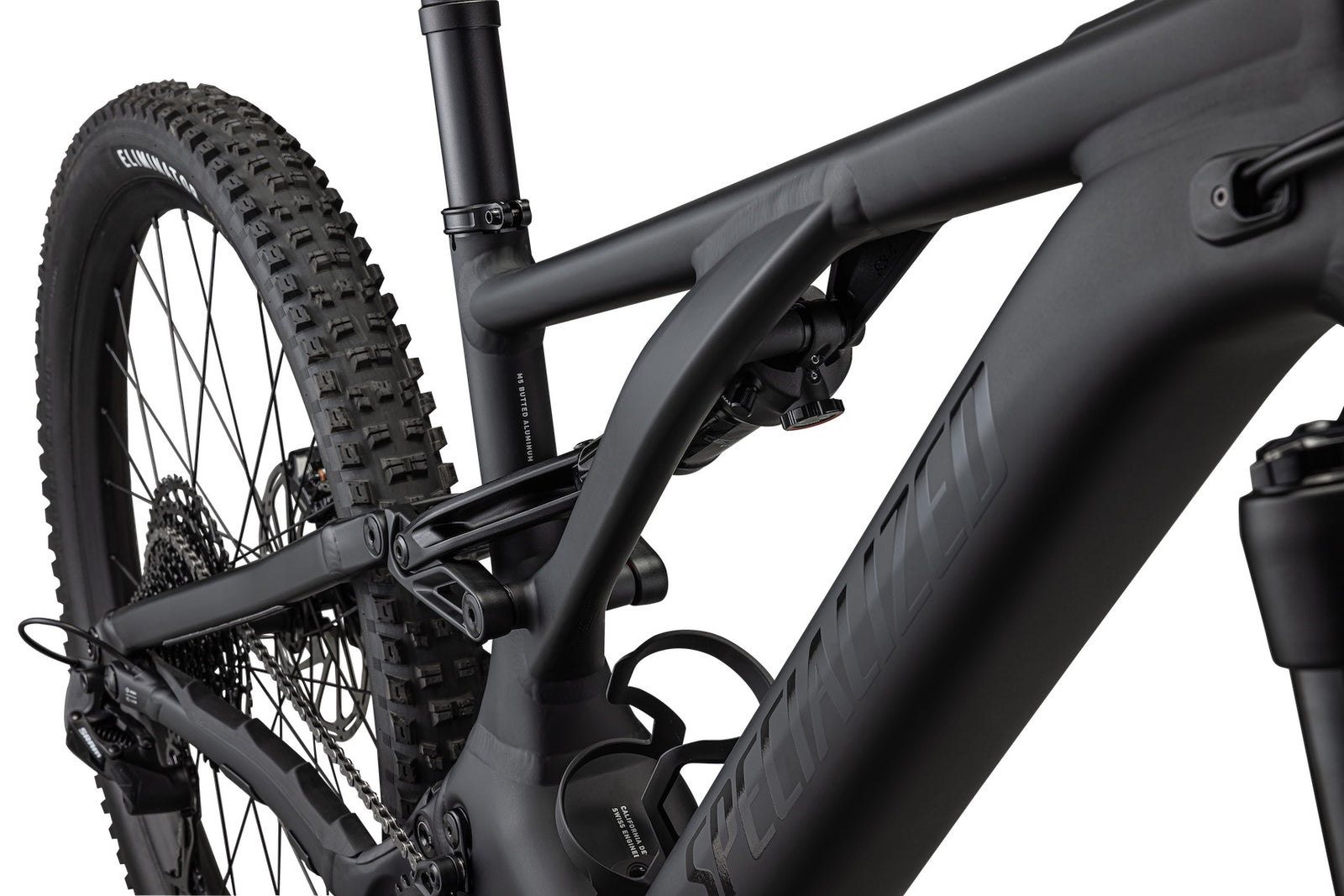

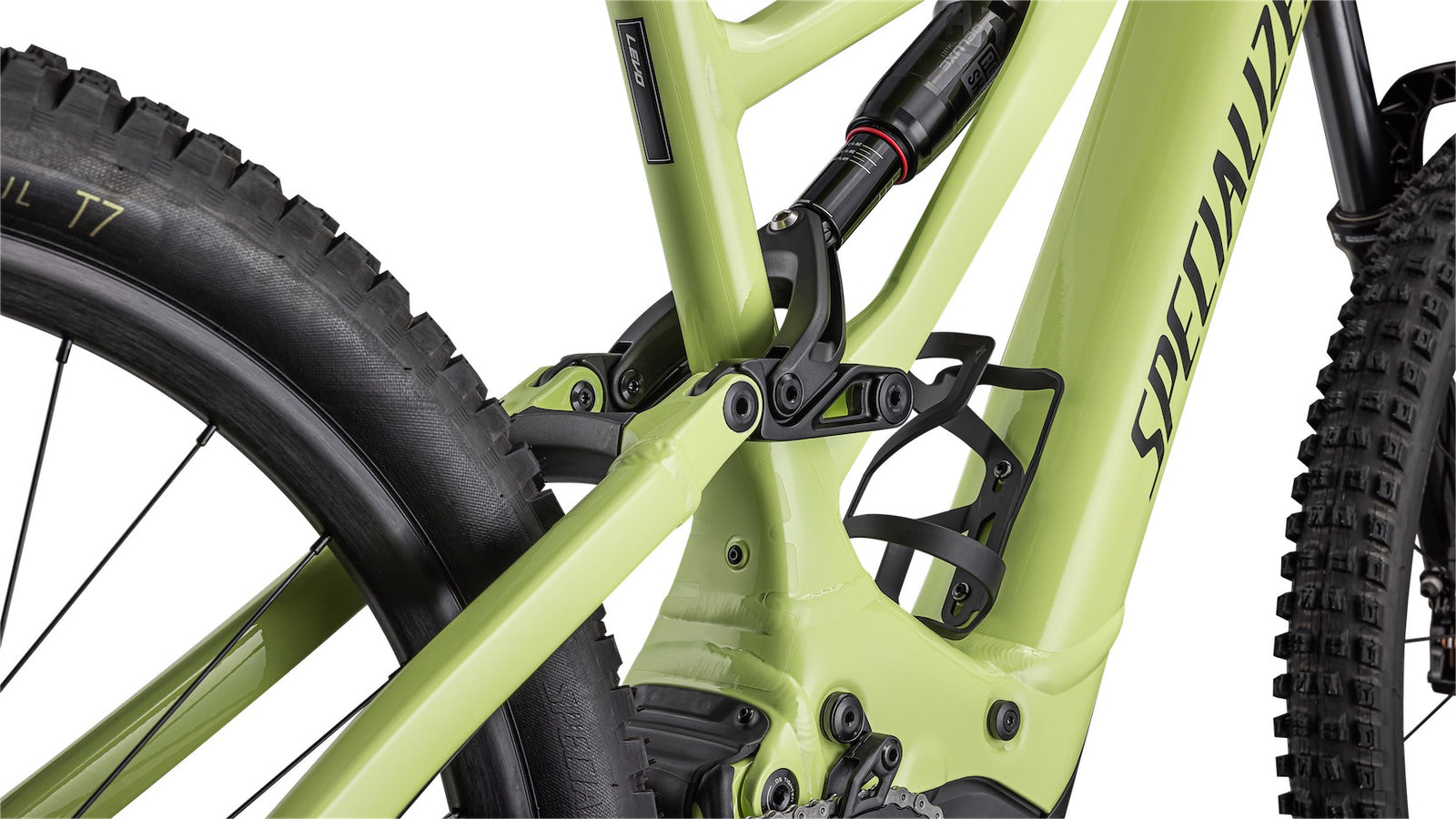

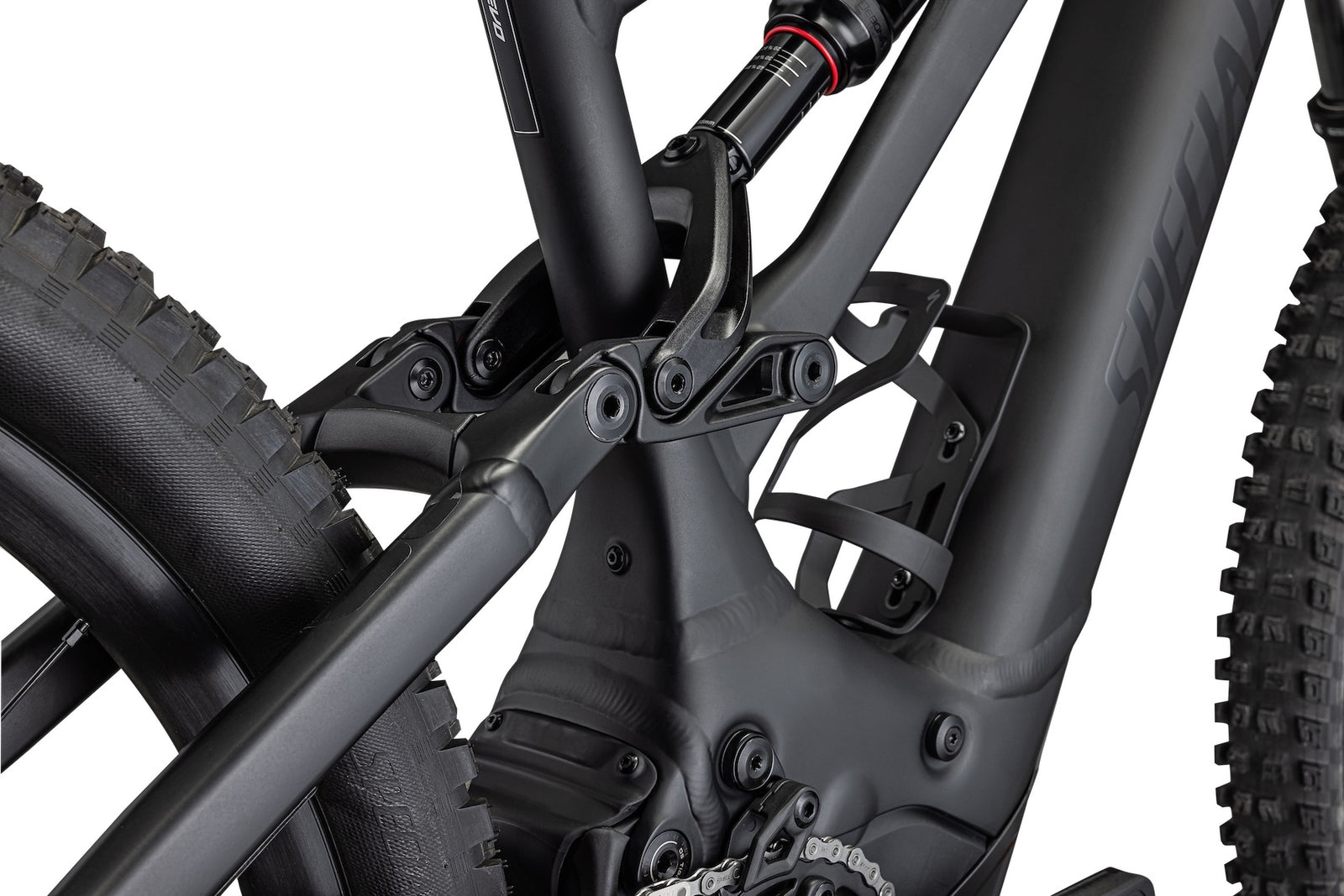

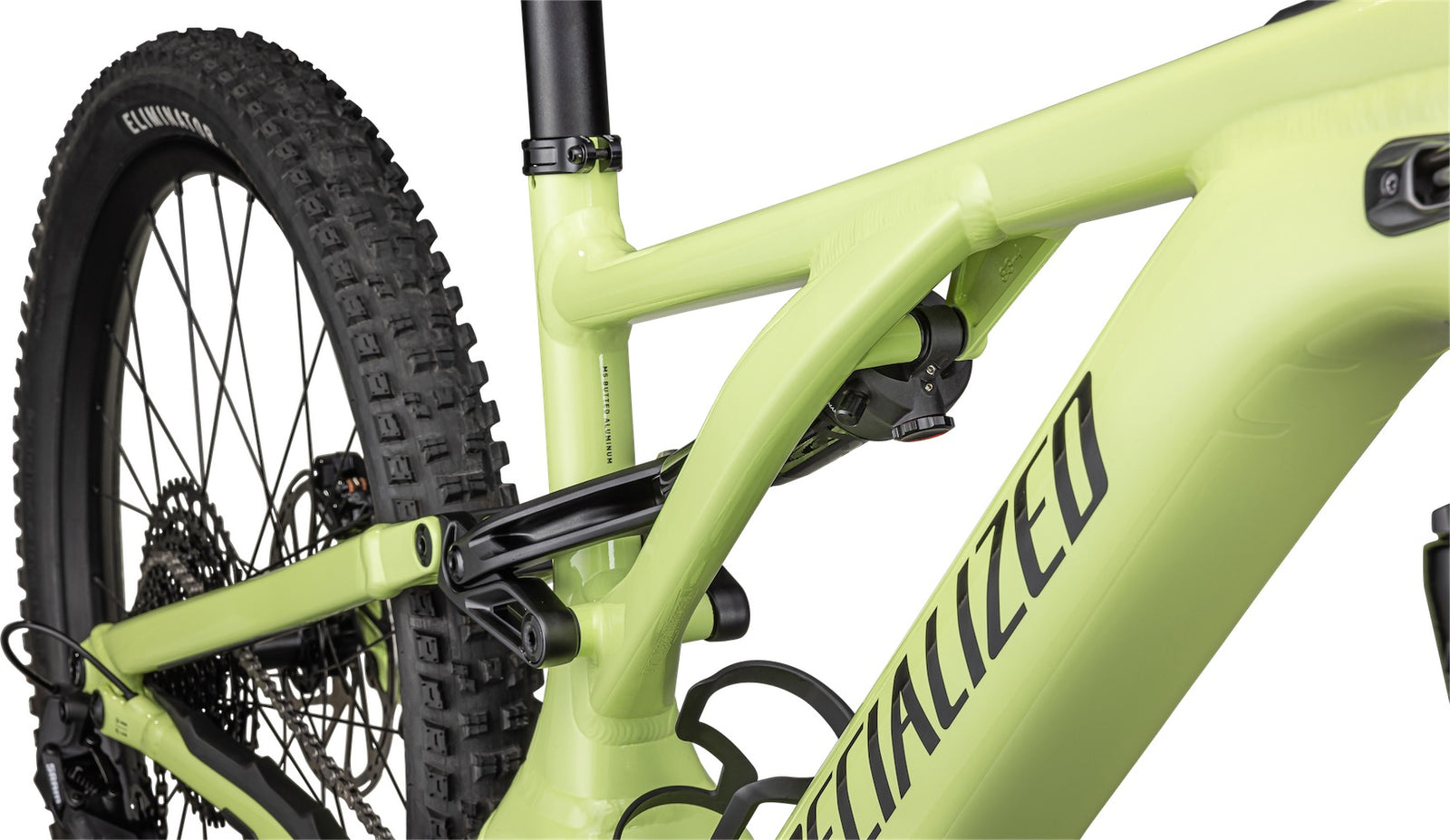

• Levo’s 150mm of rear travel is supple on small bumps, devours square-edged hits without a twitch, eats massive G-outs for breakfast, yet still offers amazing pedal response and delivers your power to the ground with total efficiency.
• The Levo’s S-Sizing is based on what matters—rider size and style, not inseam. Six sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. Smaller S-Size numbers are going to be nimble and more flickable, while bigger S-Sizes deliver more stability and a roomier ride.

FRAMESET

Seat Binder

Alloy, 38.6mm

FRAMESET

Frame

Specialized M5 premium alloy, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing

SUSPENSION

Fork

RockShox 35 Silver, 35mm stanchion, Turnkey damper, S1: 150mm travel, S2-S6: 160mm travel

Rear Shock

RockShox Deluxe Select R, rebound adjust, S1: 52.5x210mm, S2-S6: 55x210mm

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Body Geometry Bridge Saddle, steel rails

Tape

Specialized Trail Grips

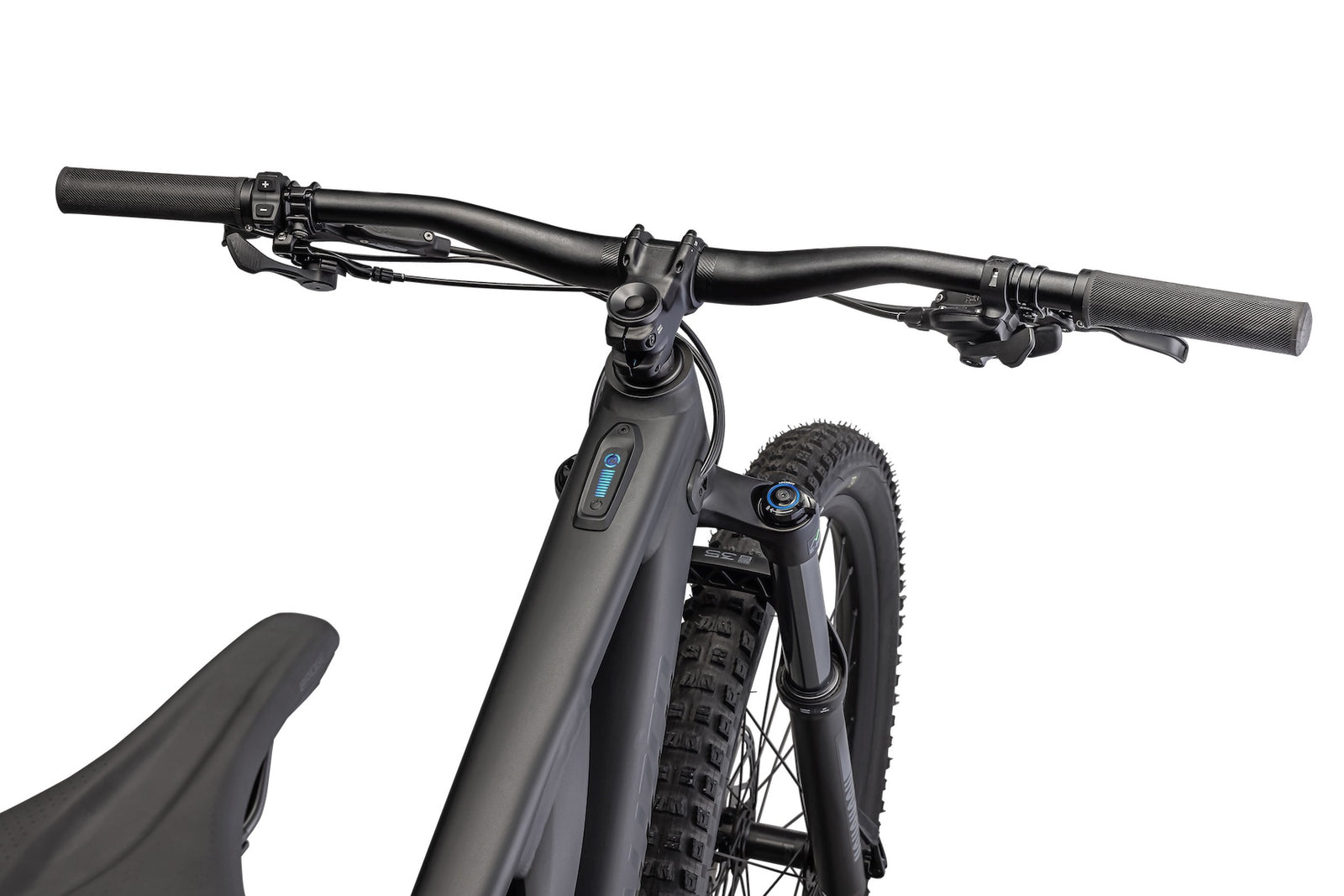

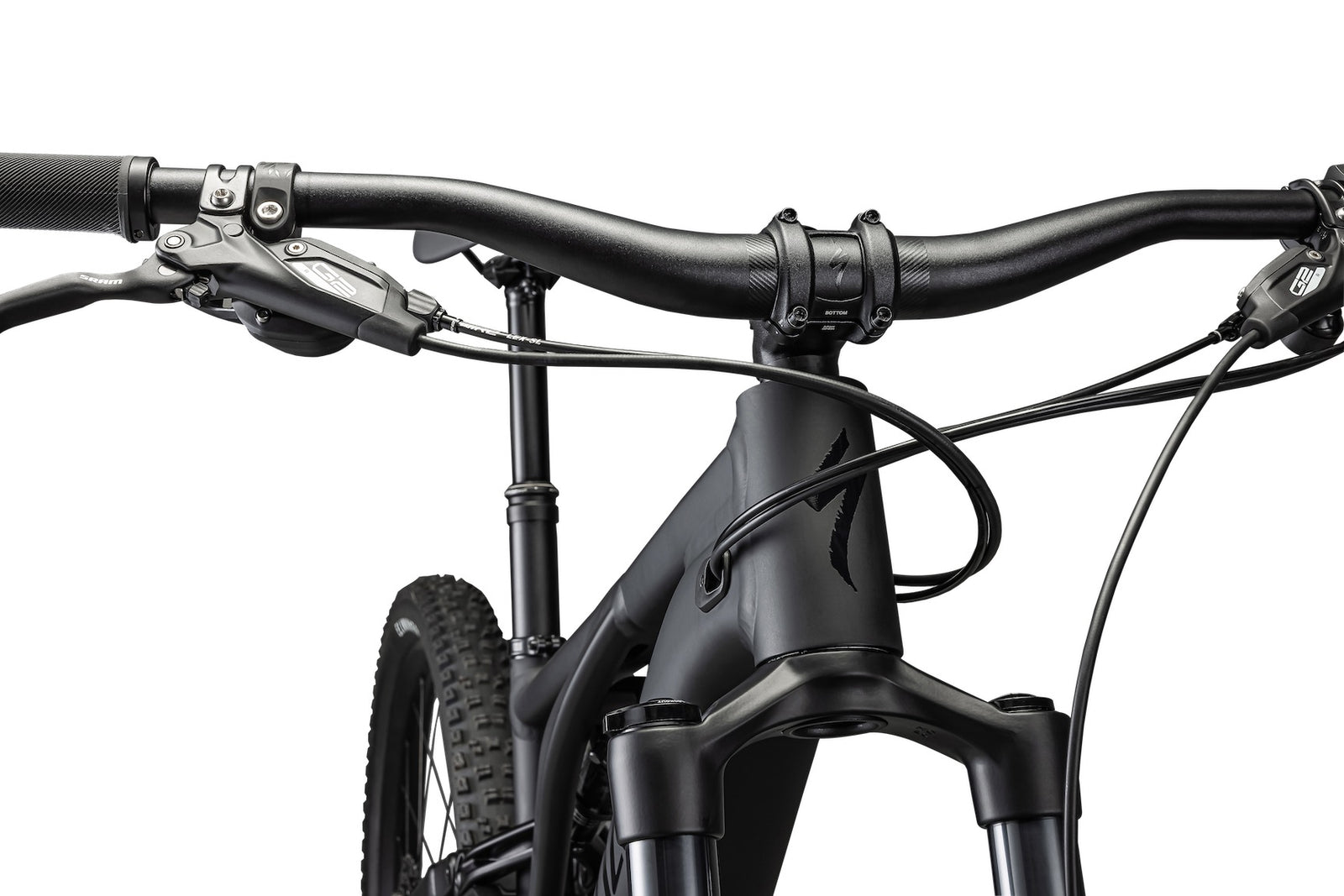

Handlebars

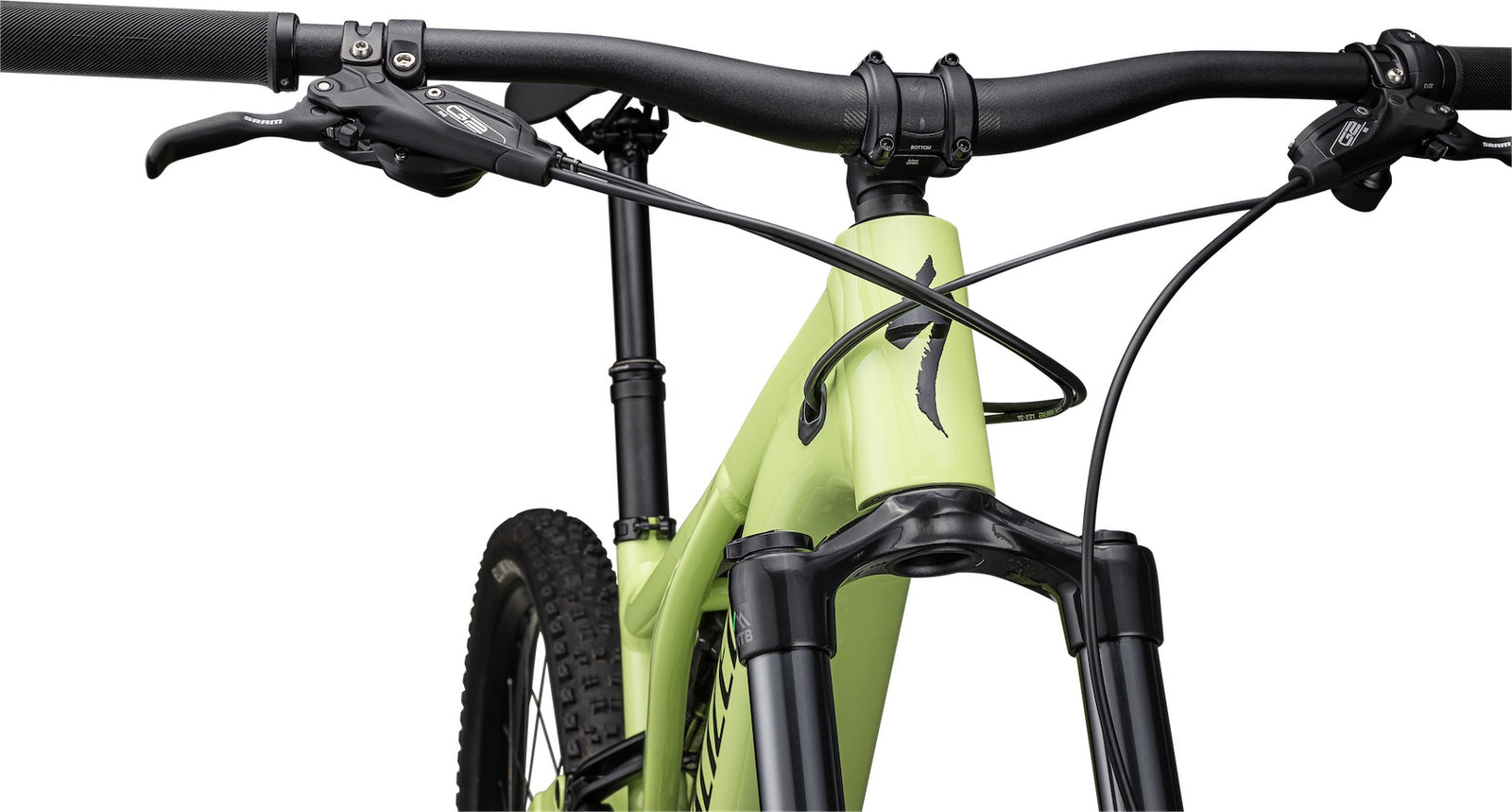

Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width

SeatPost

TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6- 200mm

BRAKES

Rear Brake

SRAM Guide RE, 200mm

Front Brake

SRAM Guide RE, S1-S3: 200mm, S4-S6: 220mm

DRIVETRAIN

Crankset

Praxis Forged/Custom Offset/ISIS Spindle Interface, 160mm

Chain

SRAM NX Eagle, 12-speed

Cassette

SRAM NX Eagle, 12-speed, 11-50t

Rear Derailleur

SRAM SX Eagle, 12-speed

Chainrings

SRAM X-Sync Eagle, 104 BCD, 34t, steel

DRIVETRAIN

Shift Levers

SRAM SX Eagle, 12-speed

WHEELS

Rear Hub

Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Front Tire

Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"

Spokes

DT Swiss Industry

Rear Tire

Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"

Rims

Specialized 29, hookless alloy, 30mm inner width, tubeless ready

Front Hub

Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h

Inner Tubes

Standard, Presta Valve

E-BIKE

Wiring Harness

Custom Specialized wiring harness

Charger

Custom charger, 42V4A w/ Rosenberger plug, 100-240V

Battery

Specialized M3-700, Integrated battery, 700Wh

E-BIKE

Motor

Specialized 2.2 Custom Rx Trail Tuned Motor

UI/Remote

Specialized TCU, 10-LED State of charge, 3-LED Ride Mode display, ANT+/Bluetooth®, w/Handlebar remote

WEIGHT

Weight

23.81kg (52 lb, 7.9 oz)

Weight Size

S4
