Description

When we say "The Ultimate Trail Bike," we mean it—the all-new Stumpjumper is everything you could ever ask for in a trail-ripping steed. Want a bike that climbs with ease? The Stumpjumper delivers, thanks to a ground-up suspension redesign and lightest-in-class frame weight. How about something that's ready to shred when the trail turns downhill? That suspension re-design - paired with new Trail Geometry and the Rider-First Engineered™ frame’s perfect blend of stiffness and light weight - turns the Stumpjumper into an absolute monster descending. Point it where you want to go and let the party begin.

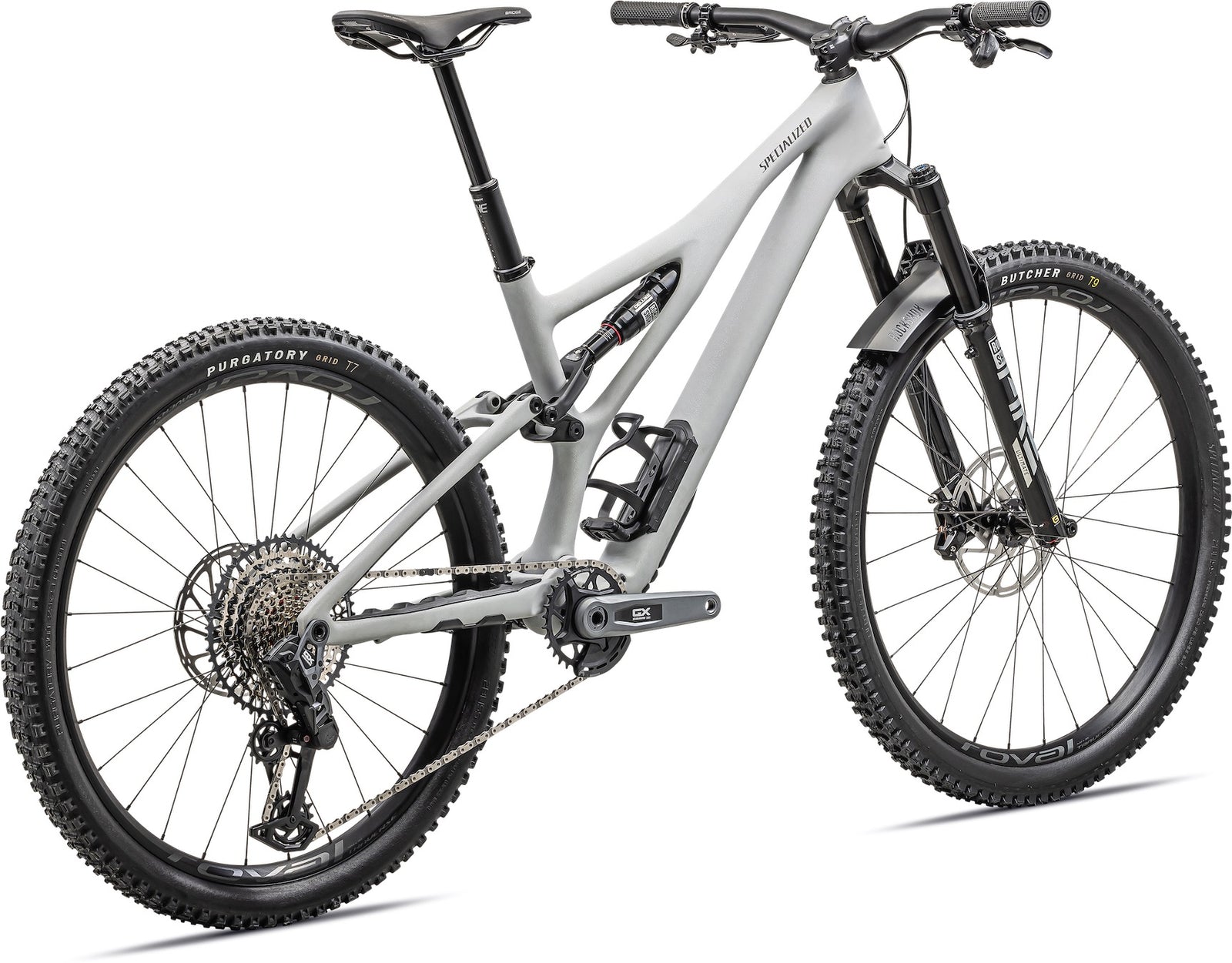

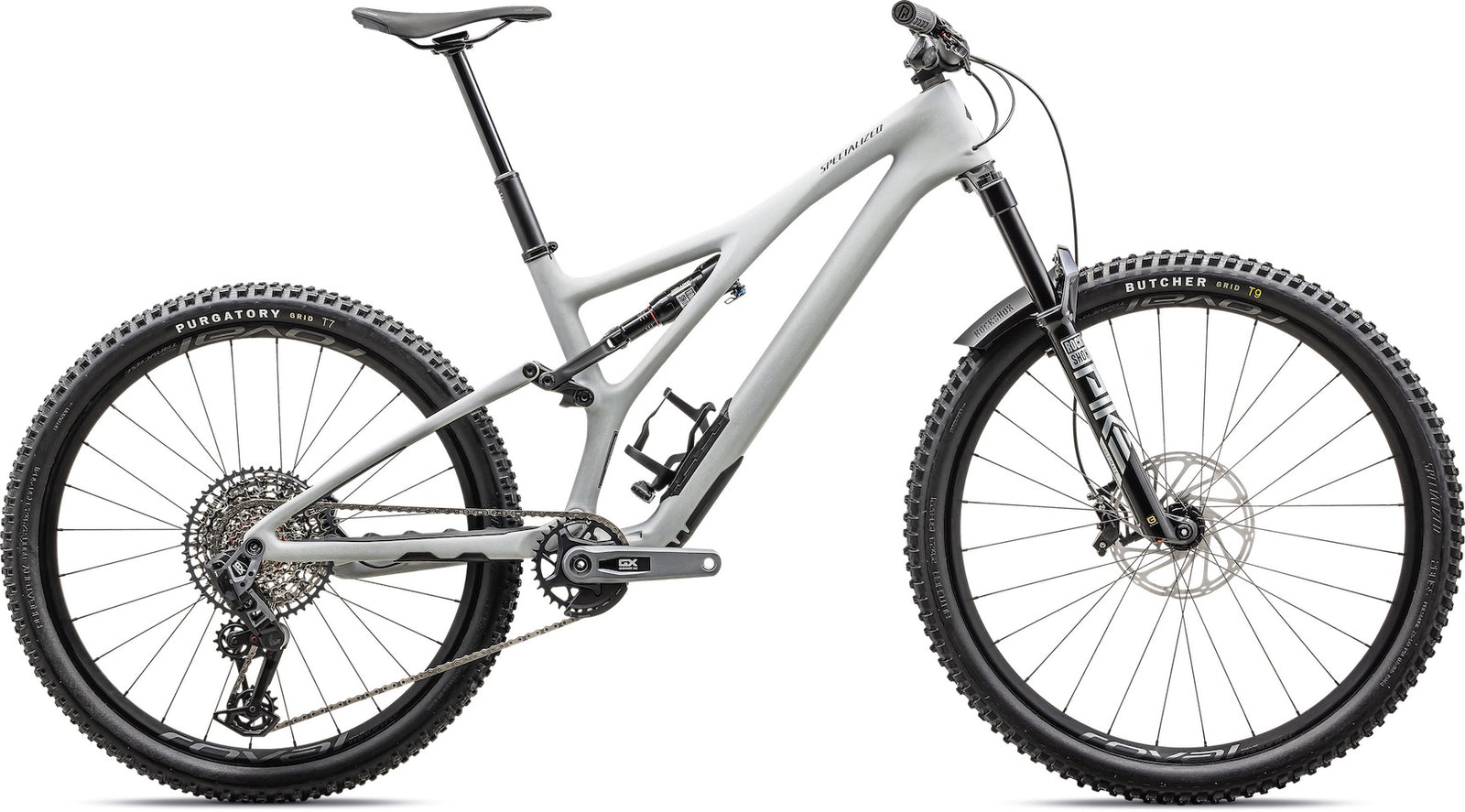

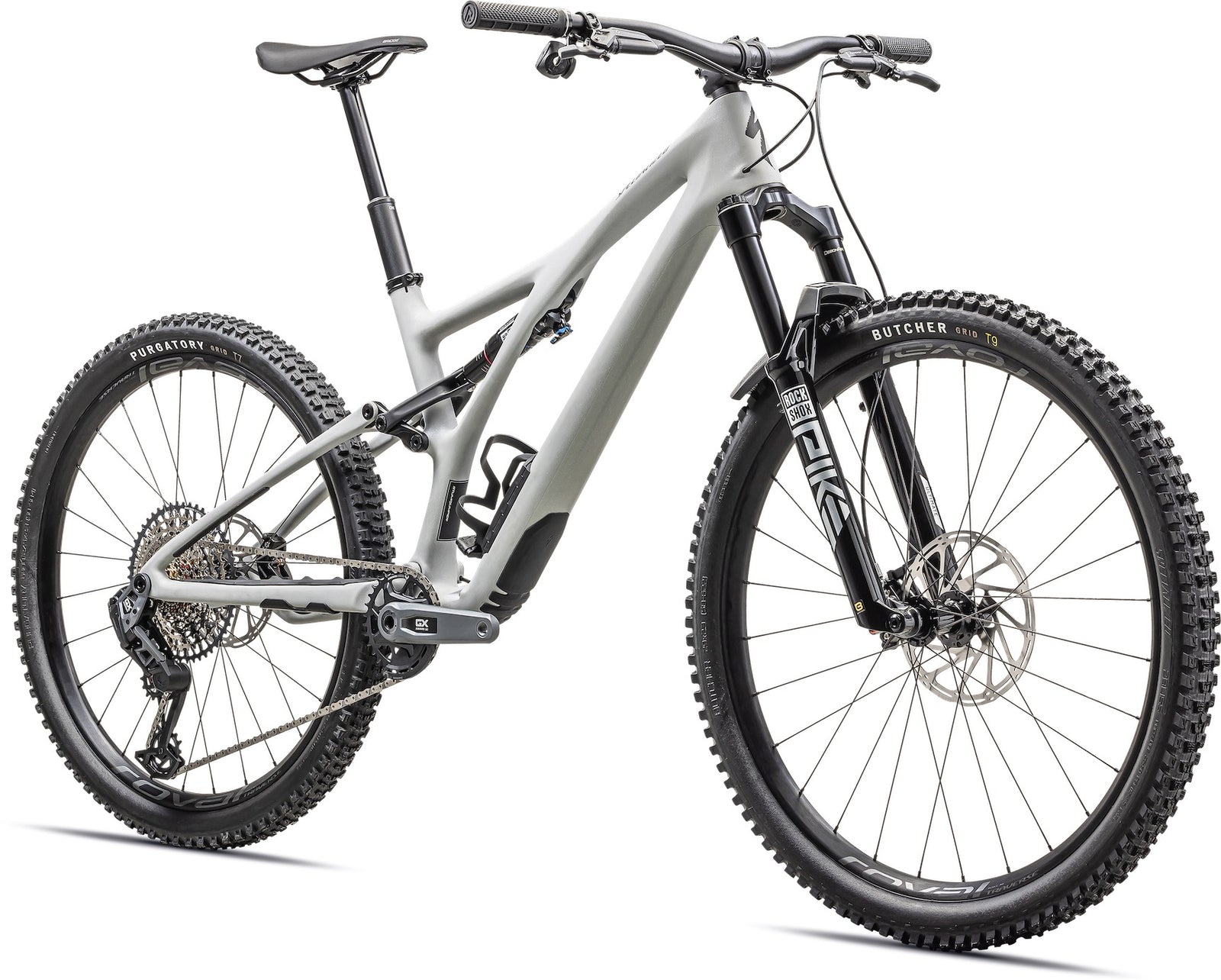

The Stumpjumper LTD raises the bar yet again with an expansive SRAM GX Eagle AXS wireless electronic 12-speed drivetrain, RockShox Pike Ultimate fork and Deluxe Ultimate shock, and a bomber Roval Traverse 29/27.5 Alloy wheelset.

• THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
• THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
• PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
• RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
• SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.

FRAMESET

Seat Binder

Alloy, 38.6mm

FRAMESET

Frame

FACT 11m carbon chassis and rear-end, asymmetrical design, 29/27.5 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel

SUSPENSION

Rear Shock

RockShox Deluxe Ultimate, Rx Trail Tune, 190x45

Fork

RockShox Pike Ultimate, Charger 3 RC2 Damper w/Buttercups, 15x110mm axle, 44mm offset, 140mm of travel

COCKPIT

Stem

Alloy Trail Stem, 35mm bar bore

Saddle

Bridge Comp, Hollow Cr-mo rails, 155/143mm

Grips

Deity Lockjaw

SeatPost

OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)

Handlebars

Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp

BRAKES

Rear Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 180mm

Front Brake

SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm

DRIVETRAIN

Shift Levers

SRAM AXS POD Controller

Crankset

SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm

DRIVETRAIN

Bottom Bracket

SRAM DUB, BSA 73mm Wide, Threaded

Rear Derailleur

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Chain

SRAM GX Eagle Transmission Flattop Chain

Cassette

SRAM GX Eagle Transmission Cassette, 12spd, 10-52t

Chainrings

32T

WHEELS

Front Tire

Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3"

Spokes

DT Swiss Competition Race

Rear Hub

Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h

Rims

Roval Traverse 29F/27.5R Alloy, 30mm inner width, hand-built, 2Bliss Ready

Front Hub

Roval, sealed cartridge bearings, 15x110mm spacing, 28h

Inner Tubes

Standard, Presta Valve

WHEELS

Rear Tire

Purgatory, GRID casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.3"

WEIGHT

Weight

13.68kg (30 lb, 2.5 oz)

Weight Size

S4
